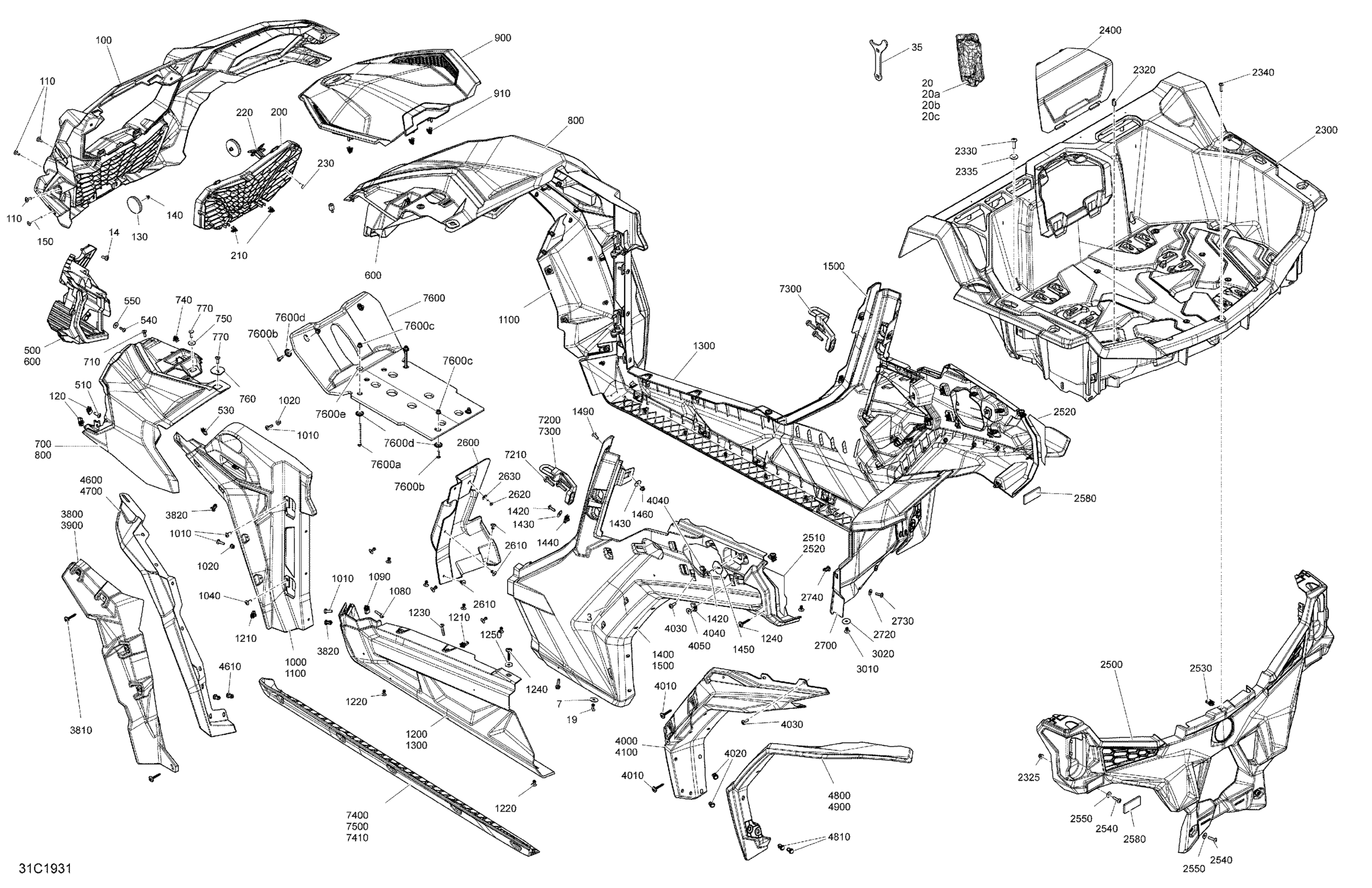

Can-Am Maverick Sport 1000R - XRC - 2019 Body - Package XRC Diagram

#

Description
Price

20

Tool Kit | Includes 90 to 90k

704700169

$74.99

20a

Socket Wrench 14/16MM

529000085

$6.99

20b

Driven Open Tool

529000088

$17.99

20c

Torx Key T30

708200340

$9.22

35

Adjustment Wrench

529000057

$4.99

100

Front Fascia

705011317

$248.43

110

Torx Truss Screw M6 X 16

250000721

$1.39

120

Panel Nut M6 X 1.0

250100198

$1.73

130

Amber Reflector | Except Europe Model

705011222

$12.32

140

Elastic Flange Nut M5

233251494

$1.74

150

Torx Screw M6 X 45

250000748

$1.56

200

Fascia Removable Grid

705011318

$203.05

210

Clip

517306478

$1.37

220

Grille Logo

705012245

$10.98

230

Screw M4 X 16

250000725

$2.87

500

LH Headlamp Structure

705011319

$213.05

510

Torx Screw M6 X 20

250000722

$1.34

530

Panel Nut M6 X 1.0

250100198

$1.73

540

Torx Screw K50 X 16

250000720

$1.39

550

Stainless Steel Flat Washer

234062670

$1.74

600

RH Headlamp Structure

705011320

$213.05

700

Gulfstream Blue, LH Fixed Hood

705013353

$285.35

710

Torx Truss Screw M6 X 16

250000721

$1.39

740

Clip

517306478

$1.37

750

Flat Washer M6.6 X 22

250200162

$1.91

760

Support Plate

705003841

$0.91

770

Torx Screw M6 X 20

250000722

$1.34

800

Gulfstream Blue, RH Fixed Hood

705013354

$285.35

900

Removable Hood

705011322

$98.43

910

Clip

517306478

$1.37

1000

LH Front Mudguard

705011323

$55.35

1010

Torx Screw M6 X 20

250000712

$1.74

1020

Hex. Flange Elastic Nut M6

233261494

$1.26

1040

Torx Truss Screw M6 X 16

250000721

$1.39

1080

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

1090

Panel Nut M6 X 1.0

250100198

$1.73

1100

RH Front Mudguard

705011324

$55.35

1200

LH Rocker Panel

705012883

$78.43

1210

Panel Nut M6 X 1.0

250100198

$1.73

1220

Pop Rivet 3/16”

293150108

$1.23

1230

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

1240

Torx Truss Screw Head PT.K50 X 40

250000840

$1.56

1250

Flat Washer M6.6 X 22

250200162

$1.91

1300

RH Rocket Panel

705012884

$78.43

1400

LH Rear Panel

705012885

$128.43

1420

Torx Screw M6 X 20

250000722

$1.34

1430

Flat Washer M6.6 X 22

250200162

$1.91

1440

Panel Nut M6 X 1.0

250100198

$1.73

1450

Support Plate

705003841

$0.91

1460

Hex. Elastic Flange Nut M6

233161464

$0.83

1490

Torx Screw M6 X 20

250000722

$1.34

1500

RH Rear Panel

705012886

$128.43

2300

Rear Box

705016885

$373.82

2320

Hex. Coupling Nut M6

250100207

$1.94

2325

Hex. Flange Elastic Nut M6

233261466

$1.66

2330

Hex Torx Truss M8 X30

250000745

$3.05

2335

Stainless Steel Flat Washer

234082670

$1.74

2340

Torx Truss Screw M6 X 25

250000807

$1.74

2400

Access Cover Kit

715006766

$27.66

2500

Rear Fascia

705011426

$157.66

2510

LH Rear Reflector

704906815

$11.00

2520

RH Rear Reflector

704906816

$11.15

2530

Panel Nut M6 X 1.0

250100198

$1.73

2540

Torx Truss Screw M6 X 25

250000807

$1.74

2550

Stainless Steel Flat Washer

234062670

$1.74

2580

Red Reflector

520001820

$17.66

2600

LH Rear Wheel Arch Protector

705014231

$41.51

2610

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

2620

Torx Screw K50 X 16

250000720

$1.39

2630

Washer M5

250200025

$0.61

2700

RH Rear Inner Fender

705011513

$42.28

2720

Stainless Steel Flat Washer

234062670

$1.74

2730

Torx Screw M6 X 20

250000722

$1.34

2740

Tuflok Plastic Rivet

293150230

$1.21

3010

Pop Rivet 3/16”

293150087

$0.92

3020

Washer

224060251

$0.57

3800

LH Front 60" Mud Guard Extension

705011325

$55.35

3810

Torx Truss Screw Head PT.K50 X 40

250000840

$1.56

3820

Tuflok Plastic Rivet

293150230

$1.21

3900

RH Front 60" Mudguard Extension

705011326

$13.83

4000

LH Rear Mud Guard

705012097

$55.35

4010

Torx Truss Screw Head PT.K50 X 40

250000840

$1.56

4020

Tuflok Plastic Rivet

293150230

$1.21

4030

Torx Screw M6 X 20

250000722

$1.34

4040

Panel Nut M6 X 1.0

250100198

$1.73

4050

Stainless Steel Flat Washer

234062670

$1.74

4100

RH Rear 60" Mud Guard Extension

705012098

$55.35

7200

LH Stricker Support

705207027

$27.66

7210

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

7300

RH Stricker Support

705207028

$27.66

7400

LH Rock Slider

705013114

$78.43

7410

Pop Rivet 3/16”

293150108

$1.23

7500

RH Rock SLider

705013115

$87.66

7600

Front Skid Plate Kit | Includes 7600 to 7600g

715005400

$169.97

7600a

Hex. Screw M6 X 80

207068044

$3.39

7600b

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

7600c

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

7600d

Wheel Cup M6

503191820

$4.66

7600e

Flat Washer 6 mm

234062410

$0.64
