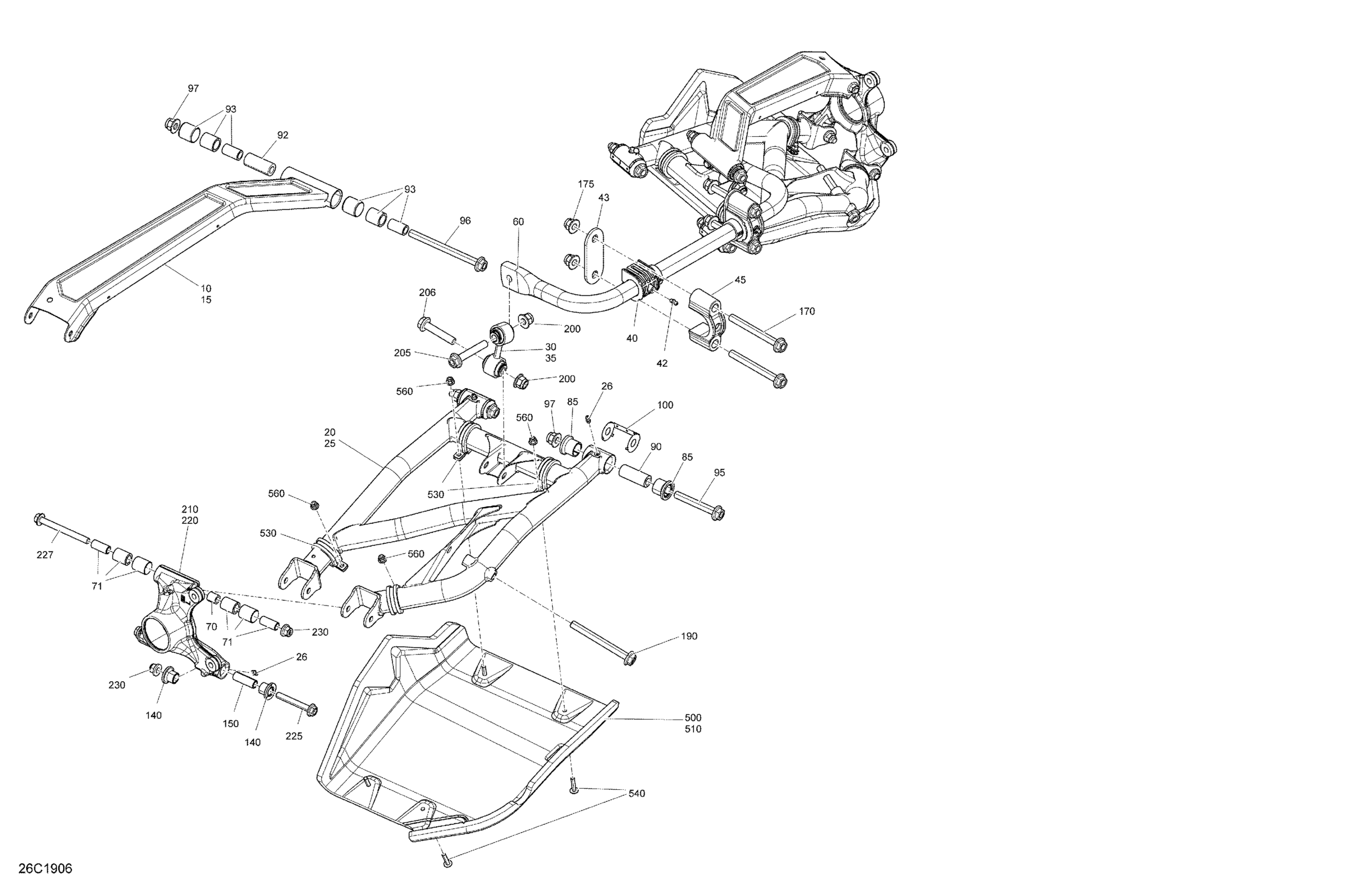

Can-Am Maverick Sport 1000R - XRC - 2019 Rear Suspension - 1000R - Package XRC Diagram

#

Description
Price

10

Blue LH Rear Upper Susp Arm Ass'y

715006135

$190.99

15

Blue RH Rear Upper Susp Arm Ass'y

715006136

$190.99

20

LH Lower Suspension Arm

706003893

$190.99

25

RH Int. Suspension Arm

706003894

$190.99

26

Grease Fitting

408200700

$3.49

30

Sway Bar Double Link

706003004

$111.49

35

Sway Bar Double Link

706003003

$111.49

40

Stabilizer Bar Bushing

706004266

$8.43

42

Grease Fitting

408200700

$3.49

43

Plate Support

706002977

$5.09

45

Clamp

706002970

$16.49

60

Sway Bar Ass'y

706003475

$126.99

70

Not Available As Spare Part - Friction Washer

Unavailable

71

Not Available As Spare Part - Friction Washer

Unavailable

85

Suspension Arm Bushing

706204409

$9.10

90

Interior Bushing

706202257

$9.79

92

Not Available As Spare Part - Friction Washer

Unavailable

93

Not Available As Spare Part - Friction Washer

Unavailable

95

Flange Screw M12 X 85

250000859

$4.76

96

Flange Screw M12 X 145

250000861

$6.67

97

Elastic Flange Nut M12

233221466

$2.89

100

Wear Plate

706202300

$2.29

140

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

150

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

170

Screw Flange M12 X 115

250000860

$6.67

175

Elastic Flange Nut M12

233221466

$2.89

190

Screw Flange M12 X 115

250000860

$6.67

200

Elastic Flange Nut M12

233221466

$2.89

205

Hex. Flange Screw M12 X 70

250000858

$3.80

206

Flange Screw M12 X 60

250000857

$7.41

210

LH Rear Knuckle Ass'y | Incl 70, 71

715006137

$116.49

220

RH Rear Knuckle Ass'y | Incl 70, 71

715006138

$116.49

225

Hex. Flange Screw M10 X 70

207607046

$2.96

227

Hex Flange Screw DIN.6921 - Call your local BRP dealership

230600046

$3.17

230

Hex. Flange Elastic Nut M10

233201436

$2.11

500

LH Rear Arm Protector

706003359

$110.99

510

RH Rear Arm Protector

706003360

$110.99

530

Open Clamp

293850121

$14.83

540

Torx Screw M6 X 25

250000758

$2.11

560

Hex. Flange Elastic Nut M6

233261494

$1.58
