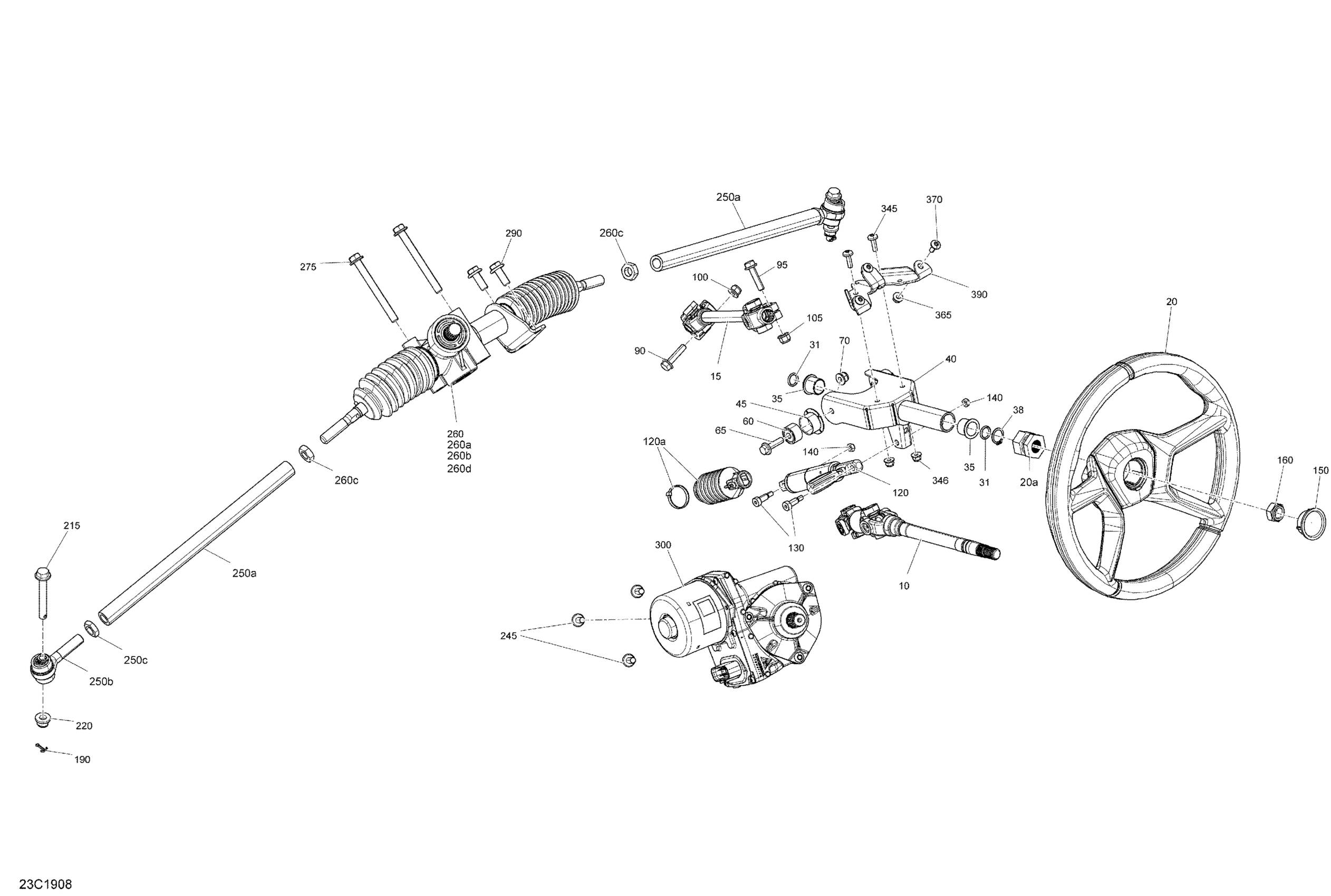

Can-Am Maverick Sport 1000R - XRC - 2019 Steering Diagram

Steering Column Ass'y This part replaces 709402473.

709402618

$189.99

Lower DPS Shaft Ass'y

709402650

$199.99

Steering Wheel

709401966

$529.49

Hub Steering Wheel

709401927

Unavailable

O-Ring

293300144

$3.82

Steering Bushing

709402725

$3.28

Circlip

293370110

$2.61

Steering Support

709401602

$83.99

Bushing

709401603

$8.85

Bushing

709401604

$5.89

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Screw M8 X 35

250001021

$4.44

Hex. Flange Screw M8 X 35

250001021

$4.44

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Elastic Flange Nut M8

233281416

$1.48

Adjustment Cylinder

709402506

$72.99

Boot Tube Side

709401232

$18.99

Socket Head Screw M8 X 16

250000669

$3.17

Elastic Stop Nut M6

232561414

$0.55

Steering Cap

709401514

$19.49

Elastic Lock Nut M16

232511414

$2.00

Cotter Pin

211400017

$0.33

Screw Hex Cap M10 X 75

250000814

$4.76

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Tie Rod Ass'y | Includes 250 to 250c

709402188

$70.99

Rod

709402189

Unavailable

Ball Joint

709401991

$52.99

Steering Rod Nut

715900238

$2.30

Rack And Pinion Steering Ass'y | Includes 260 to 260c

709402451

$466.49

Boot Kit, Pinion Side

715900235

$54.99

Boot Kit, Tube Side

715900236

$54.99

Steering Rod Nut

715900238

$2.30

Tie Rod

715900838

$71.99

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.41

Hex. Flange Screw M10 X 25

207502546

$2.11

Power Steering Ass'y

709402727

$2,119.99

Torx Screw M6 X 16

250000755

$0.87

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Elastic Nut M6

233261494

$1.58

Torx Screw M6 X 16

250000755

$0.87

Cluster Meter Support

707900737

$16.49
