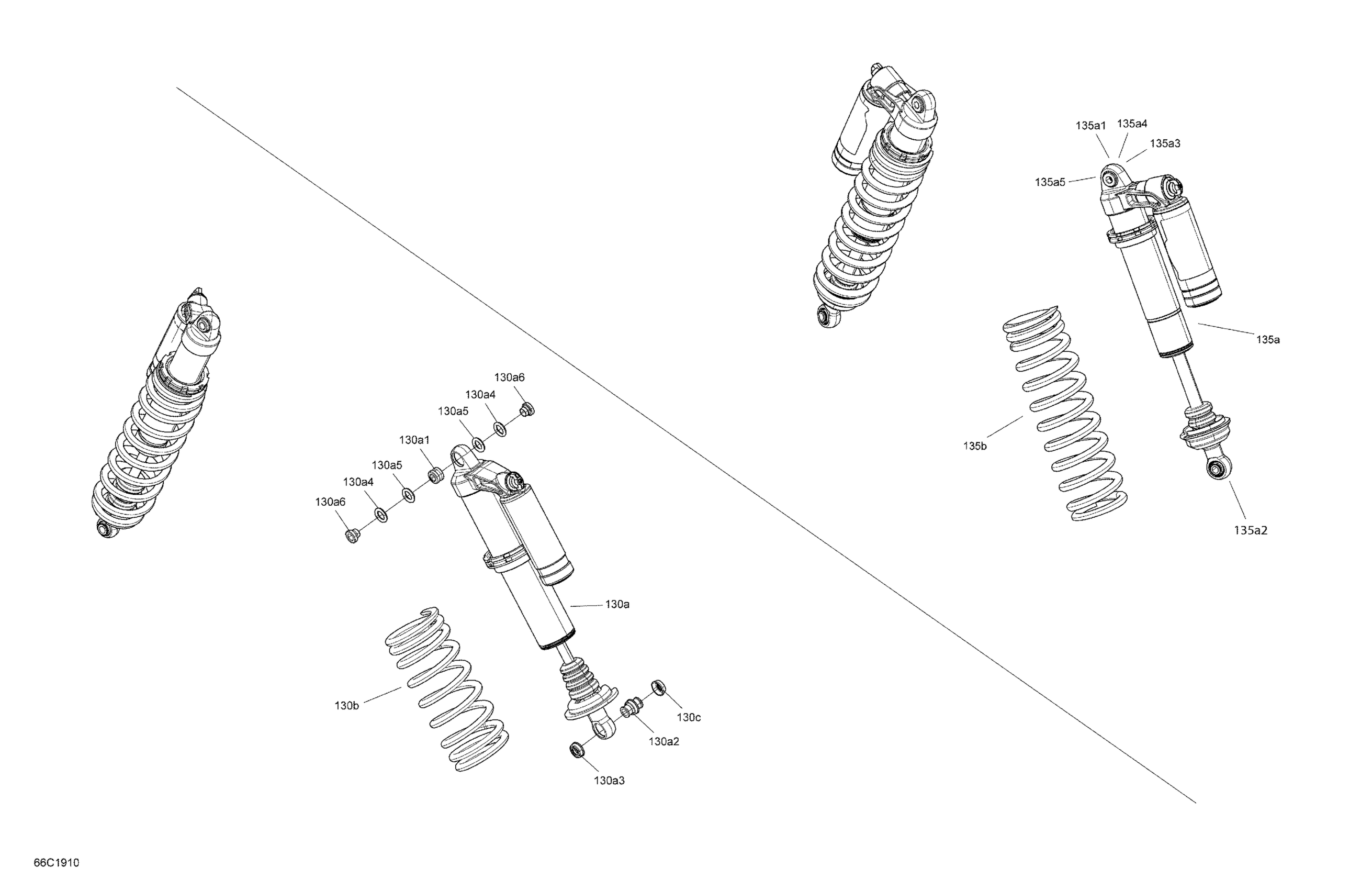

Can-Am Maverick Sport 1000R - XRC - 2019 Shocks - Packages XMR & XRC Diagram

Description

Price

130a

LH Front Shock | Includes 130a to 130a6

706203352

$644.75

130a

RH Front Shock | Includes 135a to 135a6

706203353

$821.61

130a1

Spherical Bearing

715900329

$79.07

130a2

Spherical Bearing

715900330

$79.07

130a3

Protector

715900331

$12.49

130a4

O-Ring Bushing

715900268

$12.49

130a5

Retaining Ring

715900252

$10.24

130a6

Internal Bushing

715900267

$24.60

130b

Sunburst Yellow Front Spring | Sunburst Yellow

706203354

$139.52

130b

Gulfstream Blue Front Spring | Gulfstream Blue

706203364

$114.90

135a

Rear Shock | Includes 130a to 130a5

706003181

$708.18

135a1

Spherical Bearing

715900337

$79.07

135a2

Ball Joint

706004078

$44.00

135a3

O-Ring Bushing

715900338

$10.55

135a4

Circlip

715900480

$10.24

135a5

Reducer

715900481

$24.60

135b

Sunburst Yellow, Rear Spring | Sunburst Yellow

706003182

$115.64

135b

Gulfstream Blue, Rear Spring | Gulfstream Blue

706003188

$128.33
