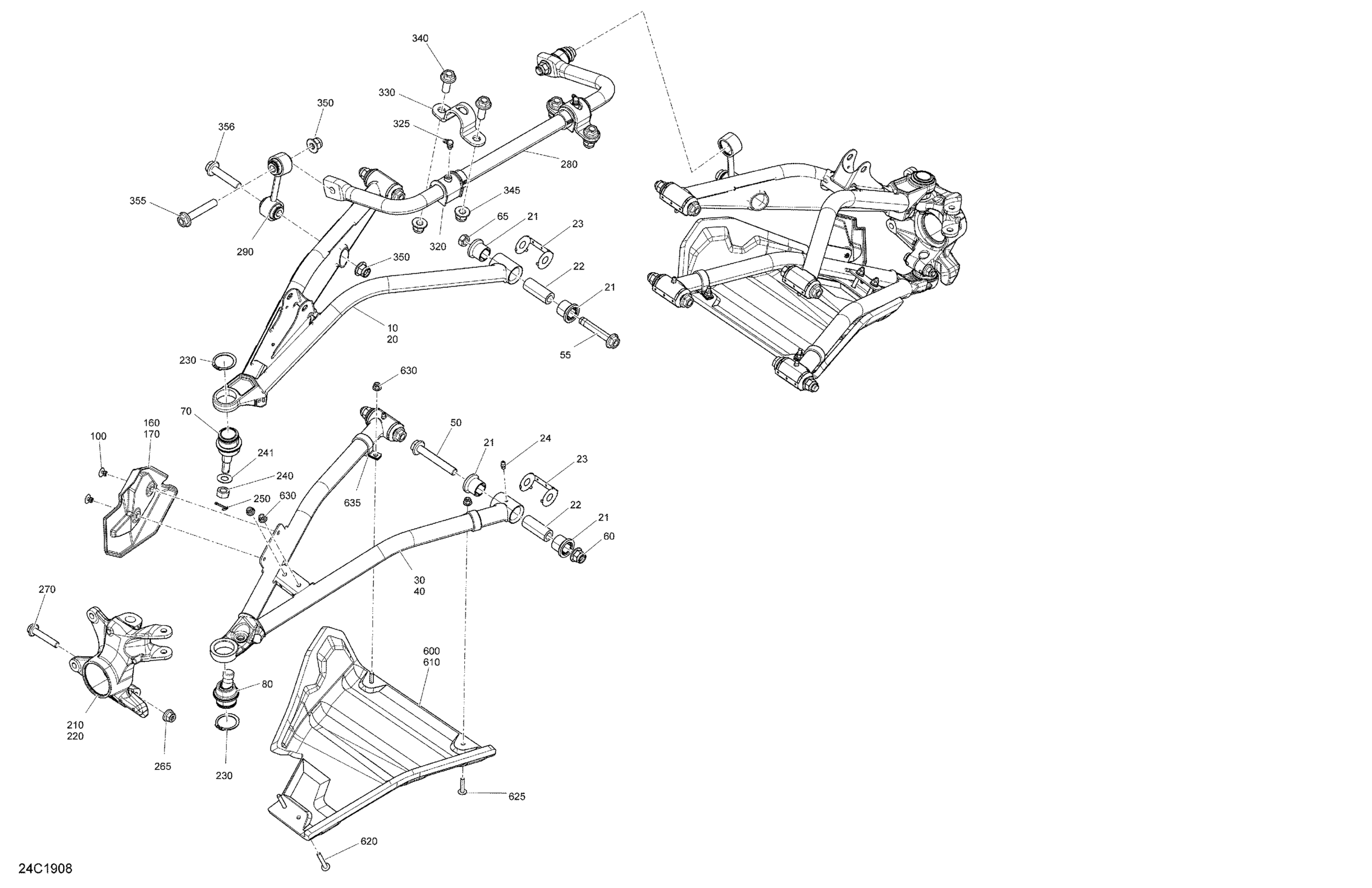

Can-Am Maverick Sport 1000R - XRC - 2019 Front Suspension - 1000R - Package XRC Diagram

#

Description
Price

10

Blue LH Upper Front Suspension Arm | Includes 10 to 10a

706203484

$177.58

20

Blue RH Upper Front Suspension Arm | Includes 20 to 20a

706203485

$177.58

21

Suspension Arm Bushing

706204409

$8.40

22

Interior Bushing

706202257

$7.27

23

Wear Plate

706202300

$1.69

24

Grease Fitting

408200700

$3.21

30

Black, LH Lower Front Suspension Arm

706203341

$223.85

40

Black, RH Lower Front Suspension Arm

706203342

$223.85

50

Flange Screw M12 X 85

250000859

$4.54

55

Hex. Flange Screw M12x1.75

250000985

$6.28

60

Elastic Flange Nut M12

233221466

$2.46

65

Hex. Nut M12

250100204

$8.52

70

Ball Joint

706203084

$34.30

80

Ball Joint

706202045

$34.30

100

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

160

RH CV joint Guard

706202135

$8.48

170

LH CV joint Guard

706202134

$8.48

210

LH Front Knuckle

706202842

$196.99

220

RH Front Knuckle

706202844

$196.99

230

Circlip

293370035

$2.48

240

Nut M12

250100099

$1.88

241

Hardened Washer

706200281

$2.69

250

Cotter Pin

211400017

$0.28

265

Hex. Flange Elastic Nut M10

233201436

$2.00

270

Hex. Flange Screw M10 X 55

207605546

$2.00

280

Sway Bar Ass'y

706203649

$114.90

290

Sway Bar Double Link

706202937

$104.45

320

Stabilizer Bar Bushing

706204414

$7.24

325

Grease Fitting 90°

293550056

$1.04

330

Clamp

706203437

$13.40

340

Hex. Flange Screw DIN.6921

250000951

$6.28

345

Elastic Flange Nut M12

233221466

$2.46

350

Elastic Flange Nut M12

233221466

$2.46

355

Hex. Flange Screw M12 X 70

250000858

$3.57

356

Flange Screw M12 X 60

250000857

$6.99

600

LH A-Arm Protector

706203566

$122.36

610

RH A-Arm Protector

706203567

$122.36

620

Torx Truss Screw M6 X 50

250000749

$3.01

625

Torx Screw M6 X 25

250000758

$2.00

630

Hex. Flange Elastic Nut M6

233261494

$1.45

635

Open Clamp

293750064

$14.99
