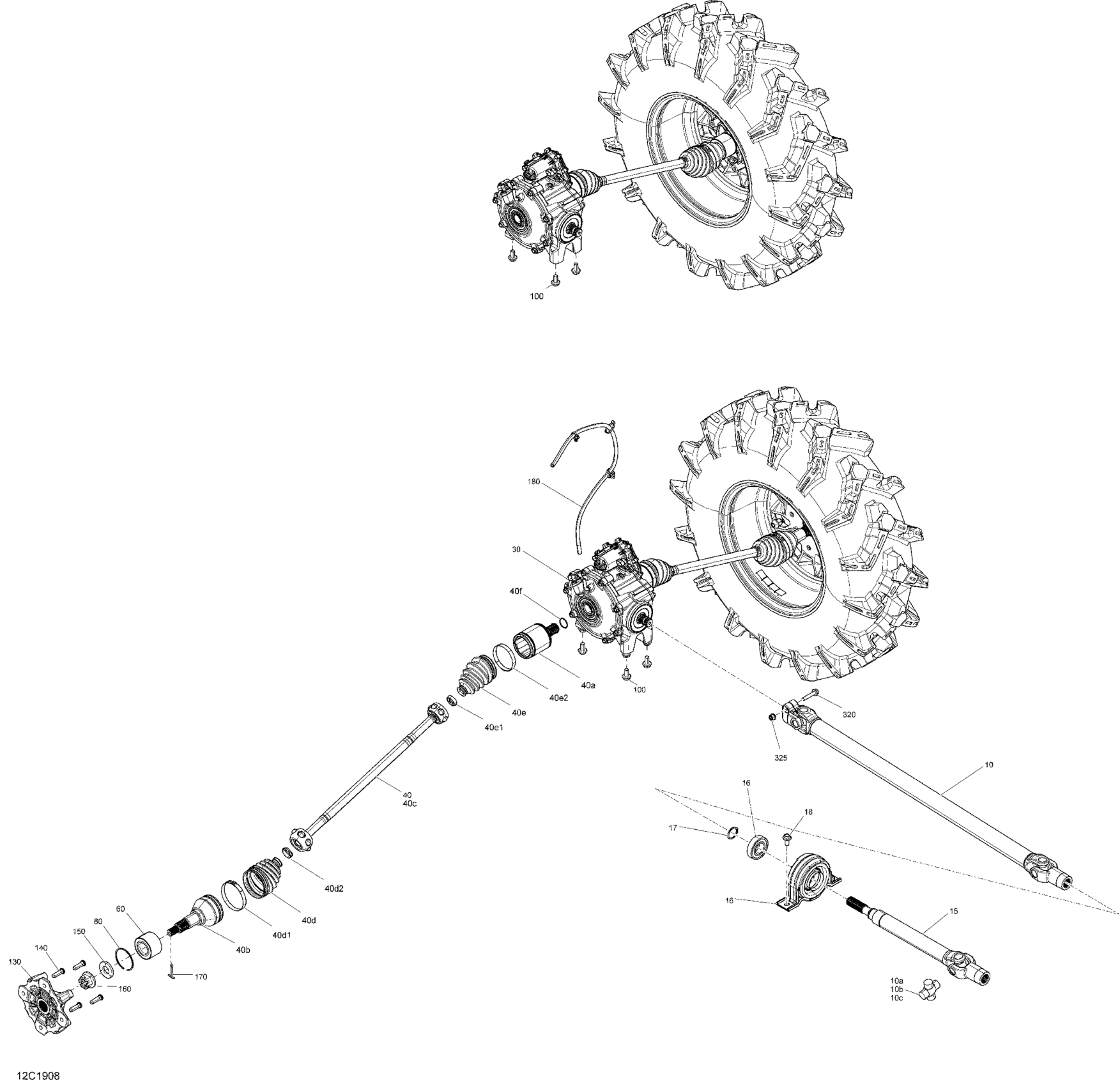

Can-Am Maverick Sport 1000R - XRC - 2019 Front Drive - 1000R EFI Diagram

#

Description
Price

10

Drive Axle Ass'y | Includes 10 to 10c

705403289

$244.58

10a

Fixed Yoke

715900400

$59.97

10b

Yoke

715900401

$36.89

10c

J-Joint Cross Kit

715900402

$87.66

15

Drive Axle Ass'y | Includes 15 to 15b

705403290

$244.58

16

Ball Bearing Ass'y

705403522

$46.12

17

Snap Ring

293370098

$3.11

18

Hex. Flange Screw M10 X 20

207502046

$1.74

30

Front Differential Ass'y | Includes 30 to 30vv

705402767

Unavailable

40

Performance CV Axle | Includes 40 to 40g

705402282

$232.74

40a

CV Joint

715900619

Unavailable

40b

LH Plunging Joint

715900568

$267.66

40c

Circlip

715900569

$5.52

40d

Boot Kit, Wheel Side

705401354

$41.51

40d1

Oetiker Clamp, Large

715900260

$7.84

40d2

Oetiker Clamp, Small

715900261

$4.39

40e

Boot Kit, Différential Side

705401355

$41.51

40e1

Oetiker Clamp, Small

715900261

$4.39

40e2

Oetiker Clamp, Large

715900262

$7.84

40f

O-ring

715900580

$2.31

60

Ball Bearing

293350150

$51.93

80

Circlip

293370019

$4.98

100

Hex. Flange Screw M10 X 20

207502046

$1.74

130

Wheel Hub

705502338

$115.35

140

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

150

Conical Spring Washer M20

250200170

$11.00

160

Castle Nut M20

250100193

$6.66

170

Cotter Pin

250400084

$1.79

180

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

320

Hex. Flange Screw M8 X 42

250001050

$0.95

325

Hex. Elastic Flange Nut M8

233281416

$1.25
