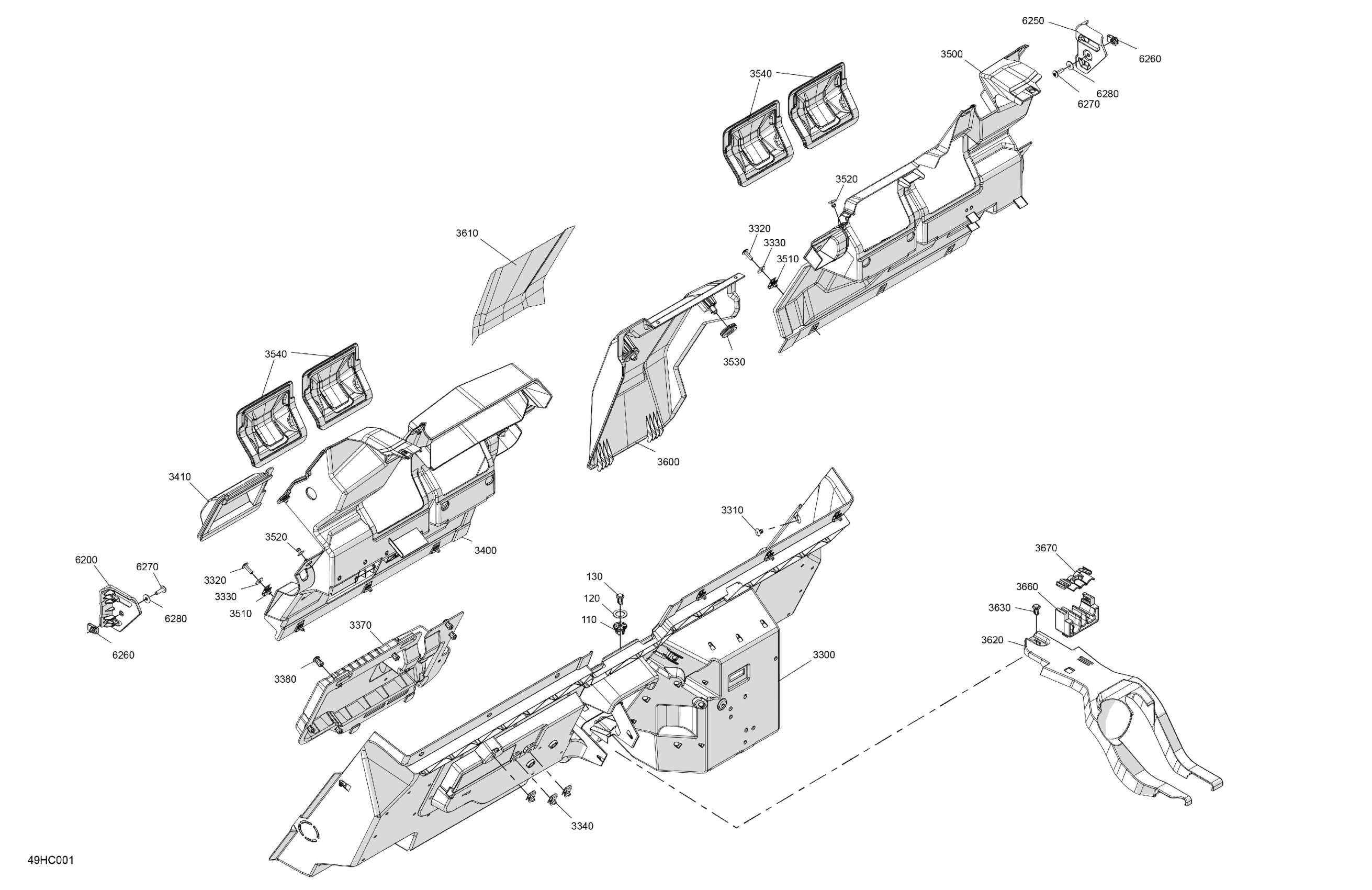

Can-Am 005 - Maverick MAX Turbo RR - XRS Smart Shock - CE, 2023 07- Cab Interior - Back Wall Diagram

Description

Price

110

Insert

707900133

$2.89

120

Washer

503189273

$3.28

130

Tuflok Plastic Rivet

293150230

$1.47

3300

Rear Lower Seperation Panel

707900929

$91.99

3310

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3320

Torx Screw M6 X 20

250000722

$1.68

3330

Stainless Steel Flat Washer

234062670

$2.11

3340

Panel Nut M6 X 1.0

250100198

$2.11

3370

Fuse Box Cover

707900880

$35.99

3380

Tuflok Plastic Rivet

293150230

$1.47

3400

LH Upper Bulkhead Kit

703501073

$89.99

3410

Bulkhead Cover

707900652

$16.99

3500

RH Upper Bulkhead Kit

707900935

$88.99

3510

Panel Nut M6 X 1.0

250100198

$2.11

3520

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3530

Grommet

705010718

$2.69

3540

Bulkhead Cover

707900486

$14.49

3600

Central Upper Rear Bulkhead

707900442

$37.99

3610

Aluminum Foil

707900773

$20.99

3620

Rear Hose Support

707901047

$38.99

3630

Tuflok Plastic Rivet

293150230

$1.47

3660

Support Hose Rear

707900699

$5.79

3670

Support Hose Rear

707900729

$5.79

6200

LH Shoulder Pad

707900615

$14.49

6250

RH Shoulder Pad

707900616

$14.49

6260

Panel Nut M6 X 1.0

250100198

$2.11

6270

Torx Screw M6 X 20

250000722

$1.68

6280

Stainless Steel Flat Washer

234062670

$2.11
