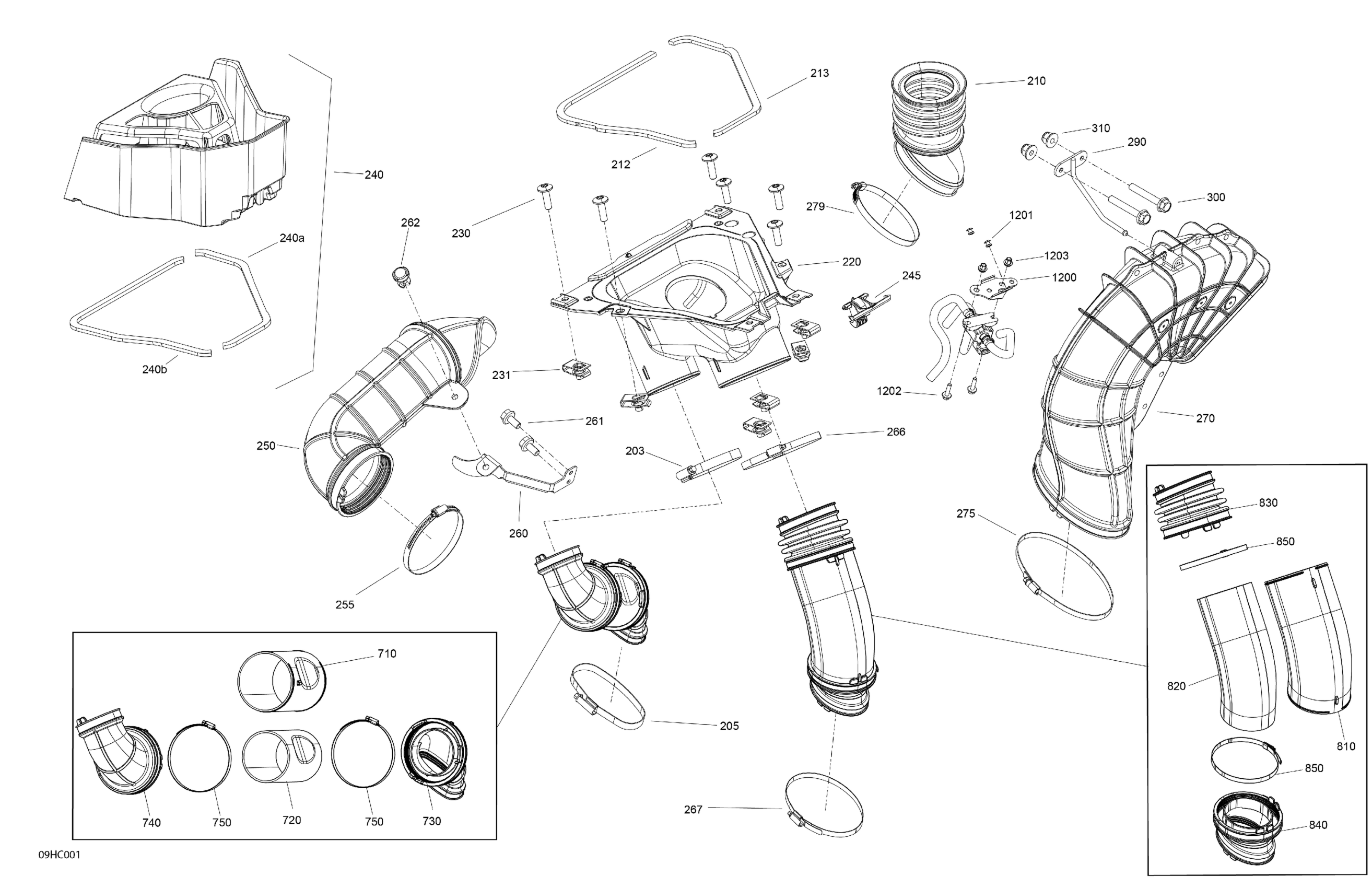

Can-Am Maverick MAX Turbo RR - XRS Smart Shock - CE, 2023 Engine - Air Duct Diagram

Description

Price

203

Norma Clamp

514052924

$14.22

205

Norma Clamp

514052924

$14.22

210

Hose

707800861

$18.99

212

Seal

706600137

$35.99

213

Seal

706600138

$34.99

220

Adaptor

706600129

$42.49

230

Torx Screw M6 X 20

250000722

$1.68

231

Panel Nut M6 X 1.0

250100198

$2.11

240

CVT Filter | Includes 240 to 240c

706600416

$63.99

240a

Seal

706600136

$35.99

240b

Seal

706600139

$34.99

245

Latch

708000909

$6.29

250

Front Outlet Duct

706600078

$27.99

255

Norma Gear Clamp

514052983

$15.89

260

Hose Support

706600147

$15.49

261

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

262

Tuflok Plastic Rivet

293150230

$1.47

266

Norma Gear Clamp

514052983

$15.89

267

Norma Gear Clamp

514052983

$15.89

270

Rear Outlet Duct

706600081

$99.99

275

Gear Clamp (Norma)

514052861

$8.29

279

Norma Clamp

514052924

$14.22

290

Outlet Support

707002056

$11.99

300

Hex. Flange Screw M6 X 40

207664044

$2.22

310

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

710

CVT Cooling Duct

706600337

$55.99

720

Acoustic Insulation

706600343

$44.99

730

Hose

706600389

$20.49

740

Hose

706600390

$13.22

750

Gear Clamp (Norma)

514052861

$8.29

810

CVT Cooling Duct

706600338

$55.99

820

Insulating Acoustic

706600344

$44.99

830

Hose

706600391

$13.22

840

Hose

706600392

$13.22

850

Gear Clamp (Norma)

514052861

$8.29

1200

Boost Valve Support

707002496

$2.68

1201

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

1202

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

1203

Insert

250100219

$2.32
