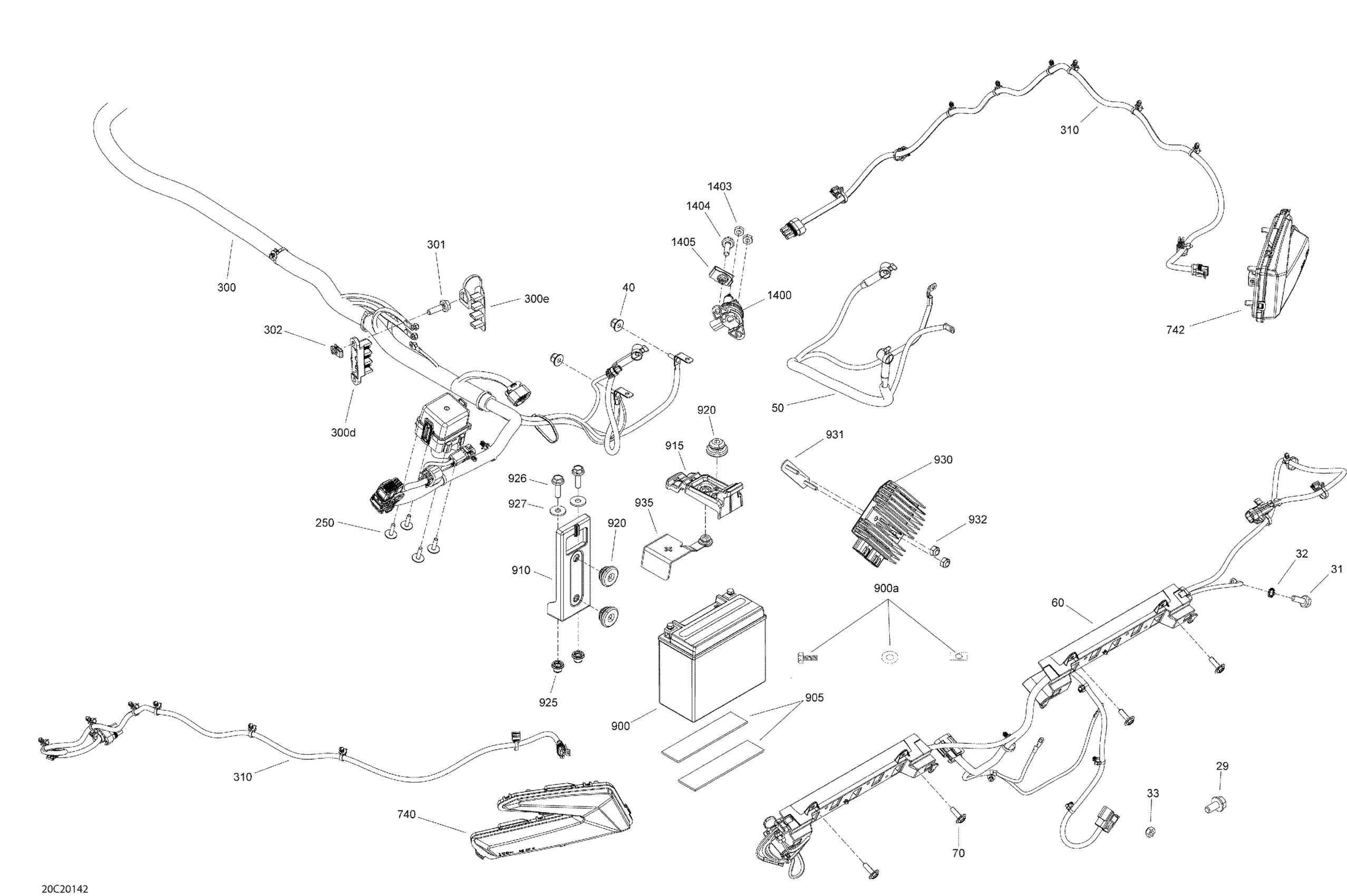

Can-Am Maverick Turbo R, Turbo RR - STD_XDS_XRS - 2020 Electric - System - Rear Section Diagram

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

External Serrated Lock Washer 6 mm

234461608

$1.15

Elastic Stop Nut M6

232561414

$0.55

Hex. Flange Elastic Nut M6

233261494

$1.58

Starter Wiring Harness

710006022

$71.99

Junction Wiring Harness

710007036

$97.99

Screw PT Type K-50 X 16

250000959

$2.11

Screw M4 X 16

250000725

$3.49

Main Wiring Harness | Includes 300 to 300c

710006658

$929.99

3-Positions Pole

710004825

$19.09

Junction Block Cover

710006610

$20.99

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Rear Wiring Harness

710006424

$27.99

LH Tail Light

710004743

$134.99

RH Tail Light

710004744

$134.99

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Battery Bolt Kit

250000282

$7.29

Rubber Pad

293830126

$13.76

Fixation Plate

710004788

$11.49

Fixation Plate

710004789

$9.29

Stopper Rubber

705014429

$5.95

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Flat Washer 6 mm

234062410

$0.77

Voltage Regulator

710005842

$189.99

Bracket

710005782

$14.49

Elastic Stop Nut M6

232561414

$0.55

Battery Cable Cap

710006471

$2.59

Starter Relay

278003012

$42.49

Elastic Stop Nut M6, Brass

232561200

$4.23

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Panel Nut M6 X 1.0

250100198

$2.11
