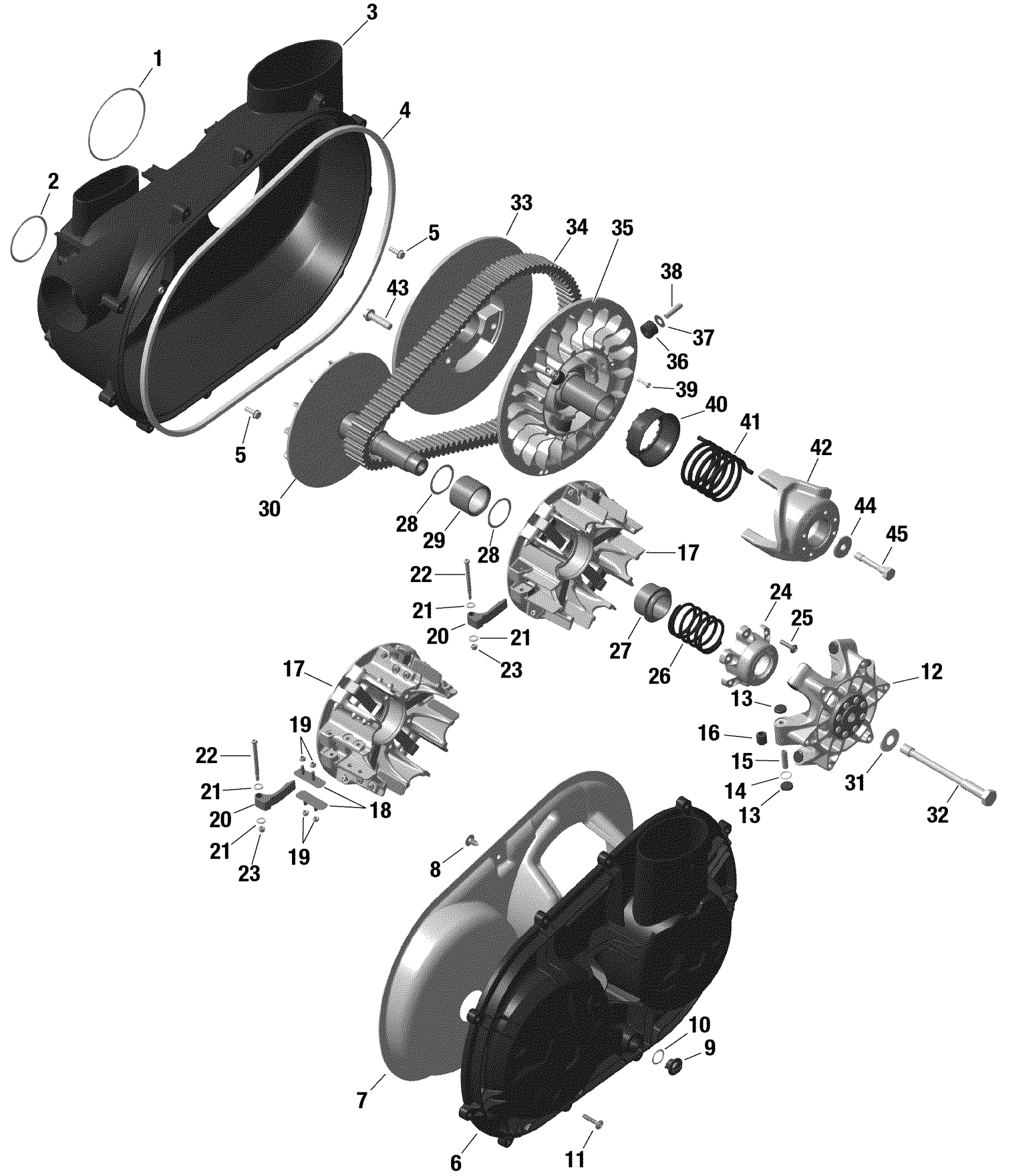

Can-Am Maverick Turbo - STD - 2020 Transmission Diagram

#

Description
Price

1

O-Ring

420450431

$5.29

2

O-Ring

420450520

$3.19

3

CVT Air Guide

420212605

$254.99

4

Gasket

420450405

$31.99

5

Hex.Screw M6 X 20

420441311

$5.18

6

Variator Cover

420212508

$190.49

7

Insulating Mat

420897385

$42.49

8

Trim Button

420651816

$1.04

9

Cap

420441820

$11.63

10

O-Ring

420250057

$4.23

11

Torx Screw 6X30

420441575

$3.06

12

Governor Cup Ass'y

420280725

$379.99

13

Slider Shoe Set

420281296

$65.49

14

O-Ring

420230456

$2.09

14

O-Ring | Turbo RR

420230457

$4.19

15

Roller Axle

417223257

$6.99

16

Roller Thrust

420229991

$19.99

17

Outer Half Ass'y

420280608

$296.99

17

Outer Half Ass'y | Version With Intercooler

420280461

$296.99

17

Outer Half Ass'y | Turbo RR

420280466

$409.99

18

Slide Plate | Turbo R, Turbo RR

420651765

$21.99

19

Lock Nut M5 | Turbo R, Turbo RR

420842032

$0.18

20>23

Centrifugal Lever Kit | Includes no. 18-21

420248661

$370.99

20>23

Centrifugal Lever Kit

420248658

$340.49

20>23

Centrifugal Lever Kit | Turbo RR

420248644

$340.49

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Bearing Cover

420280616

$69.99

24

Bearing Cover | Version With Intercooler

420280617

$65.49

24

Bearing Cover | Turbo RR

420280618

$69.99

25

Torx Flange Screw M6 X 25

420841549

$2.00

26

Compression Spring

420638117

$37.99

27

Spring Retainer

420427211

$46.49

28

Washer

420427220

$4.86

29

Needle Roller Bearing With Sleeves

420832351

$49.99

30

Inner Half Ass'y

420280596

$339.99

30

Inner Half Ass'y | Turbo RR

420280598

$339.99

31

Washer

420245690

$4.86

32

Hexagonal Screw M14X 165

420841161

$29.49

33

Sliding Pulley Ass'y

420280636

$349.99

34

Drive Belt

422280652

$239.99

35>39

Outer Half Pulley Ass'y

420280626

$349.99

36

Pulley Roller

417127016

$24.49

37

Thrust Washer

420227946

$2.51

38

Bearing Pin

420629192

$16.34

39

Torx Screw M4 X 20

420841531

$2.09

40

Spring Support

420427805

$11.17

41

Compression Spring

420638124

$37.99

41

Spring

420638126

$37.99

42

Cam 48/52 Ass'y

420280846

$169.49

42

Cam 37/50 Ass'y

420280706

$217.49

43

Torx Flange Screw M10 X 40

420841711

$2.09

44

Collar Washer

420427243

$16.40

45

Hexagonal Screw M10X 61

420441990

$19.49
