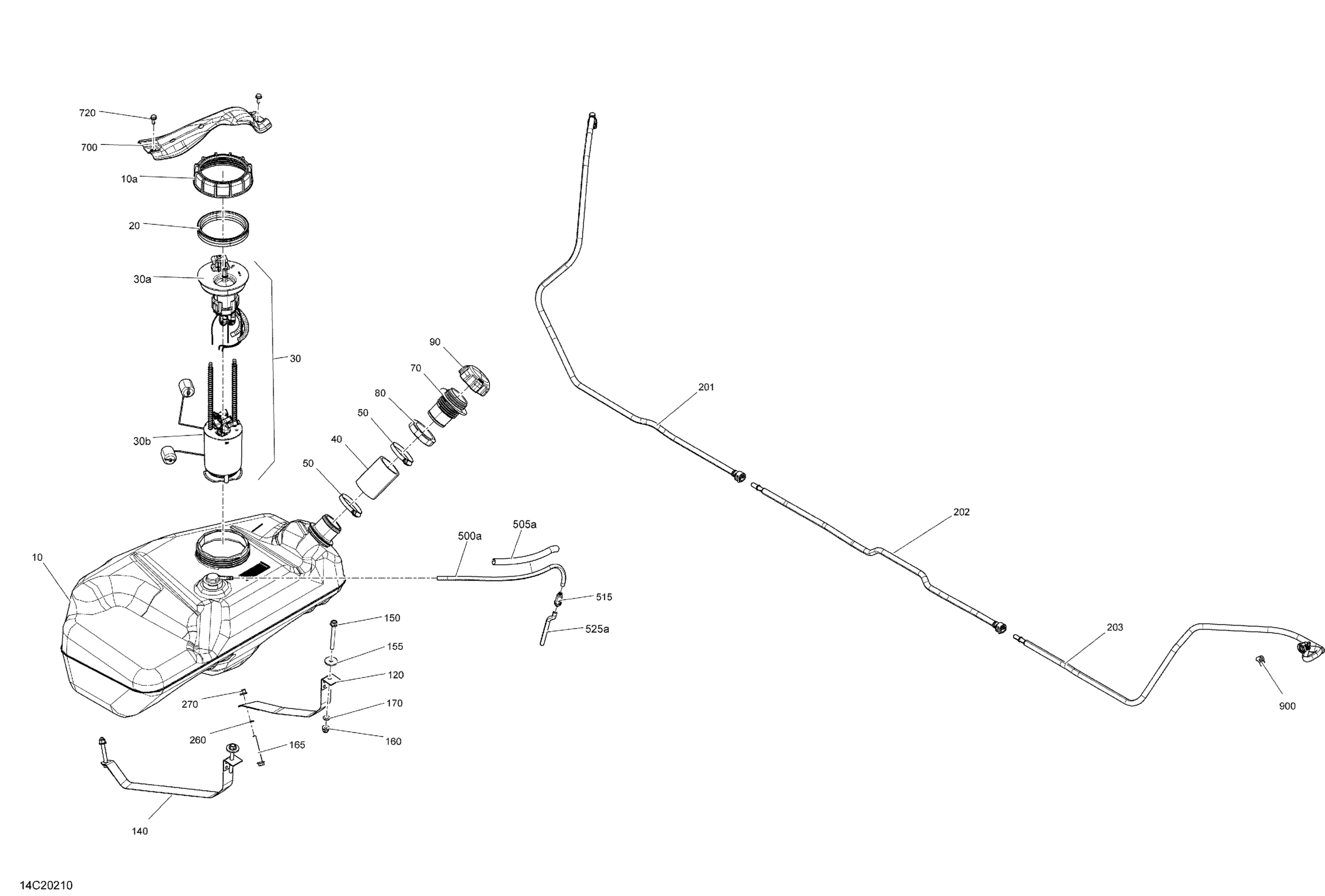

Can-Am Maverick MAX Turbo RR - XMR - 2020 Fuel Diagram

#

Description
Price

10

Fuel Tank | Includes 10 to 10c

709000706

$273.85

10a

Special Nut M130

250100062

$20.12

20

Gasket

293250173

$17.88

30

Fuel Pump | Includes 30 to 30b

709001057

$353.87

30a

Fuel Filter

270600113

$31.31

30b

Fuel Sender

715900424

$130.57

40

Filler Neck

709000748

$28.33

50

Norma Clamp

293650081

$11.33

70

Filler Neck

709000867

$14.33

80

Filler Neck Nut, Fuel

211100012

$11.51

90

Fuel Cap

709000868

$29.07

120

Fuel Tank Strap

709000910

$38.03

140

Fuel Tank Strap

709000911

$38.03

150

Screw Hex. FLange M8x75

250001084

$0.79

155

Flat Washer M8

250200187

$2.01

160

Hex. Flange Elastic Nut M8

233281414

$1.31

165

Hex. Flange Screw, M8 X 65

207686544

$11.18

170

Flat Washer 8 mm

234081410

$0.79

201

Formed Hose

709000987

$39.49

202

Formed Hose

709000989

$35.04

203

Formed Hose

709001059

$41.76

260

Flat Washer 8 mm

234081410

$0.79

270

Hex. Flange Elastic Nut M8

233281414

$1.31

500a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

505a

Tubing 10 MM 1000MM Long

219704407

$2.52

515

Filter

709001120

$7.48

525a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

700

Connector Protector

707900594

$18.63

720

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

900

Norma Spring Clamp

293650214

$14.90
