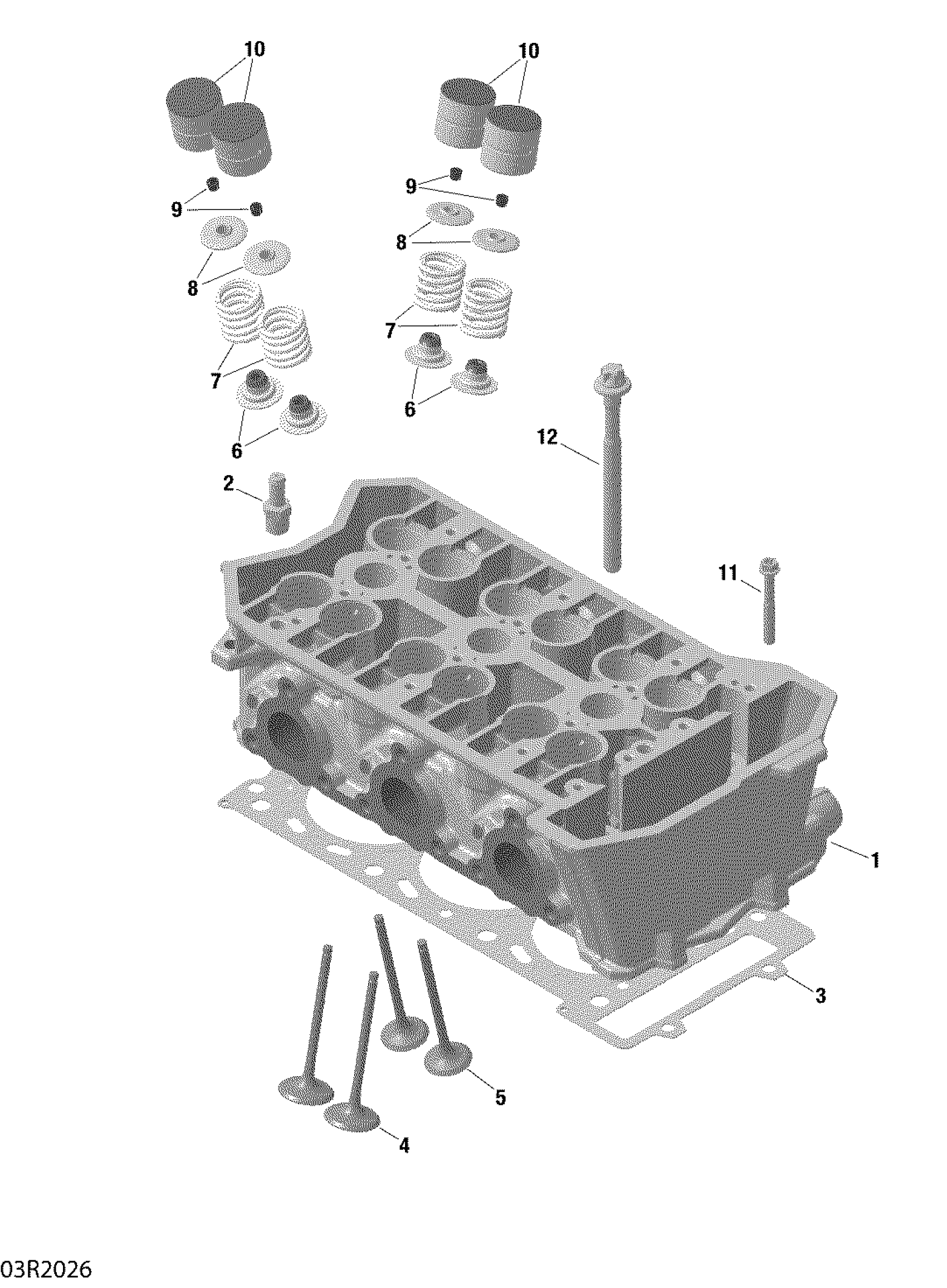

Can-Am Maverick Turbo - STD - 2020 Cylinder Head Diagram

#

Description

Price

1

Cylinder Head Ass'y

420413362

$1,019.99

2

Hose Nipple

420441420

$12.15

3

Cylinder Head Gasket | Included in gasket kit

420431816

$59.67

4

Exhaust Valve 25 MM This part replaces 420855148.

420855146

Unavailable

5

Intake Valve 29MM

420855131

$23.10

6

Valve Stem Seal

420431671

$5.06

7

Valve Spring

420939540

$7.09

8

Valve Spring Retainer

420855150

$4.15

9

Cotter Valve

420254630

$0.96

10

Valve Lifter Bucket

420855165

$44.00

11

Torx Flange Screw M6 X 45

420440324

$0.93

12

Sided Bolt Screw M9 X 113

420940947

$10.10
