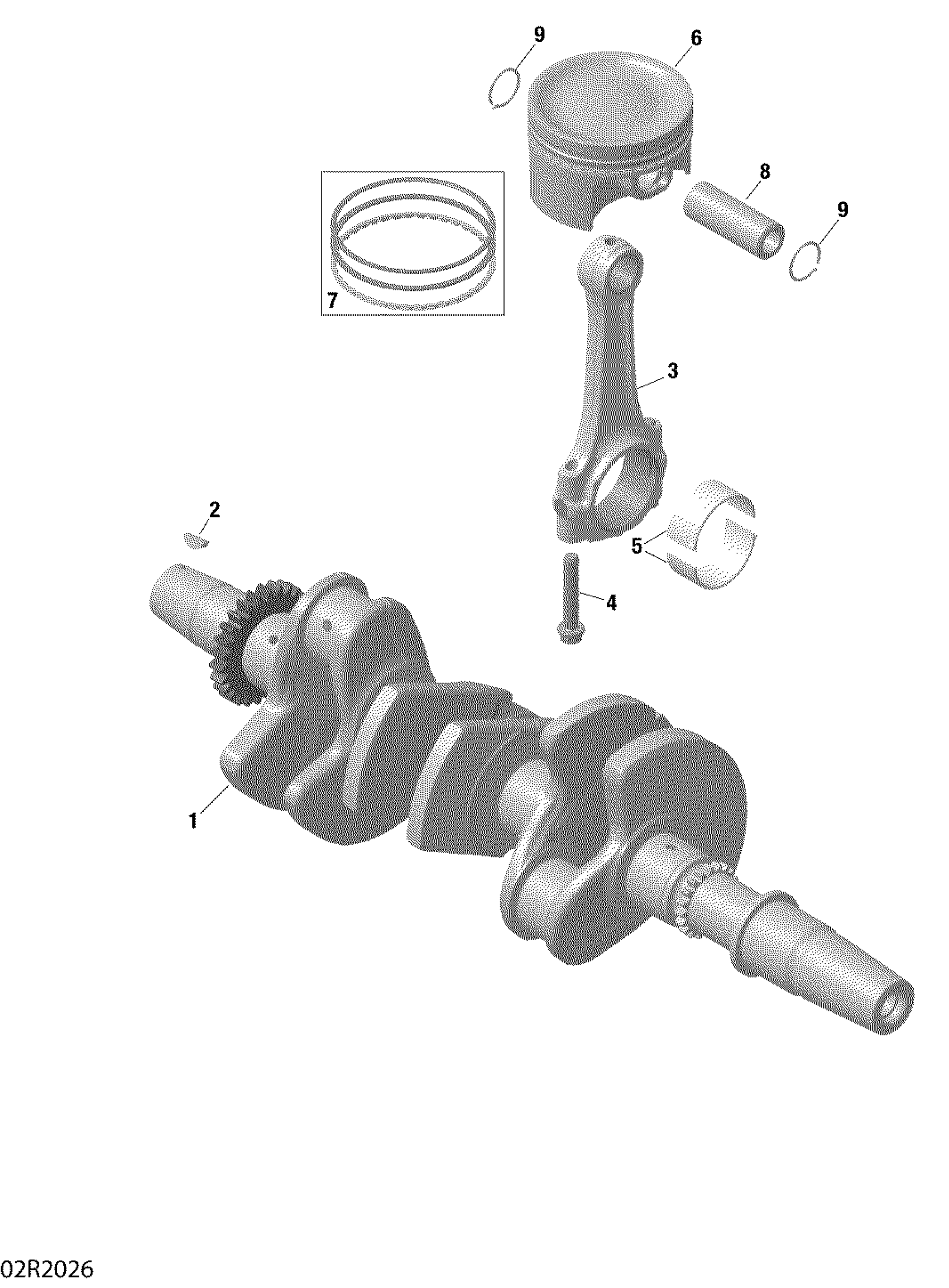

Can-Am Maverick Turbo - STD - 2020 Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft

420819935

$905.49

2

Woodruff Key

420246571

$4.44

3

Connecting Rod

420917744

$266.49

4

Connecting rod Screw M7 X 1

420641794

$15.89

5

Plain Bearing

420933195

$14.30

6

Piston Ass'y 73.958MM | Includes no. 6-7

420893970

$180.99

6

Piston Ass'y 73.958MM | Includes no. 6-7

420893973

$265.99

7

Piston Ring Set

420892824

$58.49

7

Piston Ring Set

420892827

$82.99

8

Piston Pin

420916550

$28.49

9

Piston Circlip

420845540

$4.89
