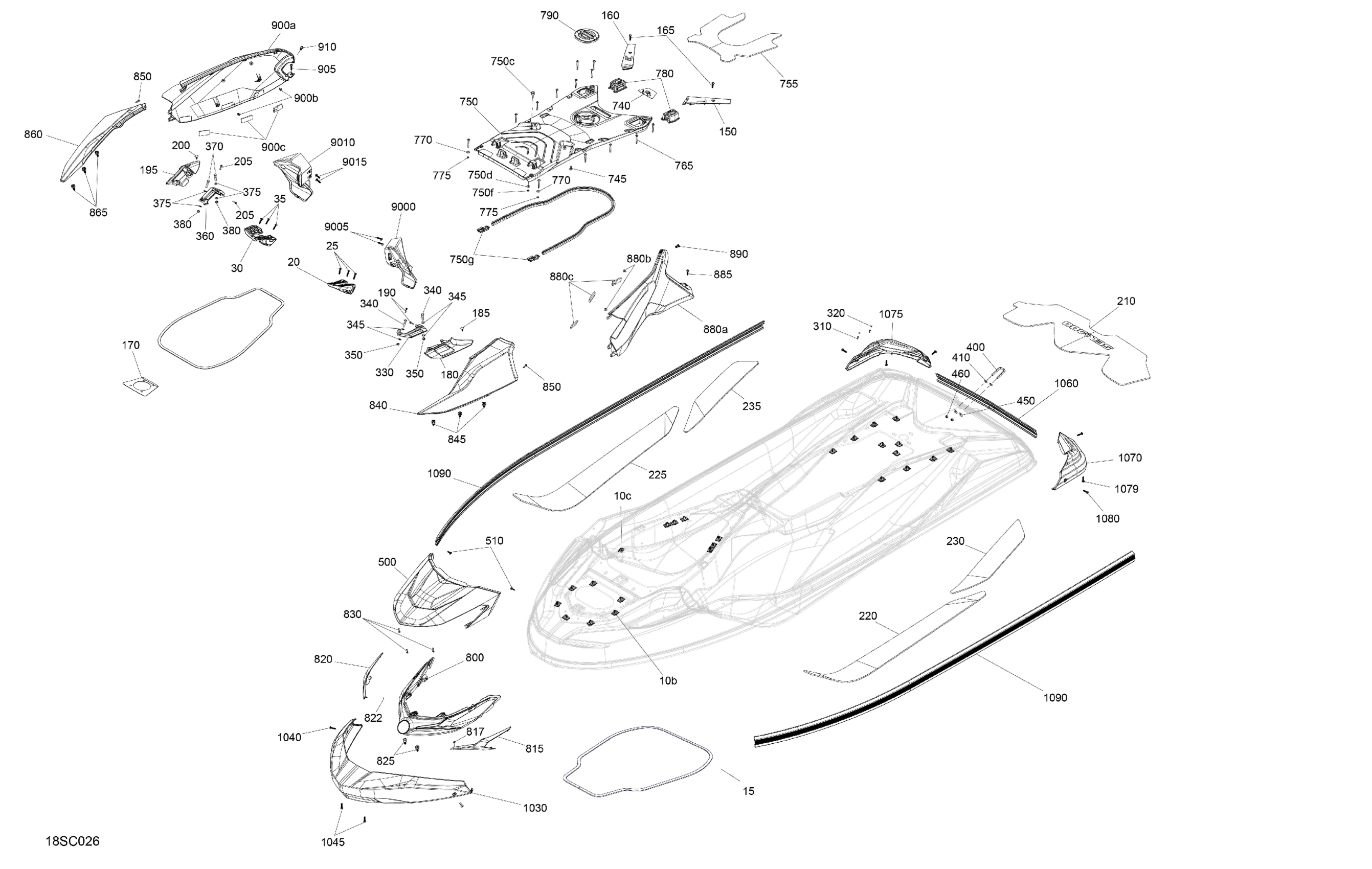

Sea-doo 005 - GTX PRO 130 (Rental), 2023 07- Body - System Diagram
#
10b
Nut Housing M6 Ass'y | Includes 10b to 10b1a
291006093
$2.39
10c
Anchorage Tie Wrap
293750109
$1.25
15
Gasket
293250401
$12.11
20
LH Support
291004714
$10.99
25
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
30
RH Support
291004715
$12.49
35
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
150
LH Shim
291005176
$16.49
160
RH Shim
291005177
$16.49
165
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
170
Gasket
293250451
$23.99
180
LH Shell Cleat
291004661
$10.99
185
Black, Dart
293730011
$0.99
190
Hex. Screw 10-14 X 7/8”
211000023
$3.59
195
RH Shell Cleat
291004719
$10.99
200
Black, Dart
293730011
$0.99
205
Hex. Screw 10-14 X 7/8”
211000023
$3.59
210
Anti Slip Deck Mat
291005453
$110.99
220
LH Front Anti Slip Mat
291005351
$33.99
225
RH Front Anti Slip Mat
291005350
$33.99
230
LH Rear Anti Slip Mat
291005353
$17.20
235
RH Rear Anti Slip Mat
291005352
$17.20
310
Rivet 1/8"
293150016
$0.40
320
Black, Snap Cap
293000014
$1.09
330
LH Cleat
291004559
$9.79
340
Hex. Screw M8 X 35
207083560
$1.47
345
Stainless, Flat Washer 8 mm
234081600
$0.55
350
Hex. Elastic Nut M8 Brass
232581200
$2.22
360
RH Cleat
291004720
$9.79
370
Hex. Screw M8 X 35
207083560
$1.47
375
Stainless, Flat Washer 8 mm
234081600
$0.55
380
Hex. Elastic Nut M8 Brass
232581200
$2.22
400
U-Clamp
292000933
$59.49
410
Flat Washer M8.5 x 18
293050001
$3.07
450
Flat Washer 8 mm, Stainless
234082600
$2.43
460
Hex. Elastic Nut M8 Brass
232581200
$2.22
500
Deep Black, Hood
291005579
$97.99
510
Flange Screw Plastite #10, 14 X 7/8"
250001087
$3.49
740
Hose Protector
291004941
$4.69
745
Black, Dart
293730011
$0.99
750
Acces Cover Ass'y | Includes 750 to 750g
291005876
$219.99
750c
Stud - Call your local BRP dealership This part replaces 291005183.
291005183
Unavailable
750d
Flat Washer M6, Stainless
234062600
$0.77
750f
Elastic Stop Nut M6, Brass
232561200
$4.23
750g
Seal
291004717
$12.99
755
Deep Black, Rear Mat
291005861
$39.99
765
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
770
Flat Washer M6, Stainless
234062600
$0.77
775
Elastic Stop Nut M6, Brass
232561200
$4.23
780
Linq Bases Kit
295100858
$13.30
790
Access Cap Ass'y
291004481
$10.99
800
Front Hood Grille
291005915
$35.99
815
Reef Blue, LH Trim
291005972
$28.99
817
Push Nut | Not shown
211100002
$2.19
820
Reef Blue, RH Trim
291005973
$28.99
822
Push Nut | Not shown
211100002
$2.19
825
Dard
293730071
$1.15
830
Hex. Screw 10-14 X 7/8”
211000023
$3.59
840
Reef Blue, LH Front Body Panel
291005547
$80.99
845
Dard
293730071
$1.15
850
Hex. Screw 10-14 X 7/8”
211000023
$3.59
860
Reef Blue, RH Front Body Panel
291005548
$80.99
865
Dard
293730071
$1.15
880a
Reef Blue, LH Central Body Panel
291005541
$164.99
880b
Rubber Bumper
293830005
$8.09
880c
Stopper
278003618
$0.74
885
Screw-Plastite Torx Hd.M6.81X20
250001206
$2.54
890
Tuflok Plastic Rivet
293150230
$1.47
900a
Reef Blue, RH Central Body Panel
291005542
$164.99
900b
Rubber Bumper
293830005
$8.09
900c
Stopper
278003618
$0.74
905
Screw-Plastite Torx Hd.M6.81X20
250001206
$2.54
910
Tuflok Plastic Rivet
293150230
$1.47
1030
Front Bumper
291004452
$77.49
1040
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
1045
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
1060
Bumper 2775±25mm
291004468
$134.99
1070
LH Rear Bumper
291004465
$30.49
1075
RH Rear Bumper
291004466
$30.49
1079
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
1080
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
1090
Bumper 2775±25mm
291004468
$134.99
9000
LH Side Grille
291004455
$11.49
9005
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
9010
RH Side Grille
291004456
$11.49
9015
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
