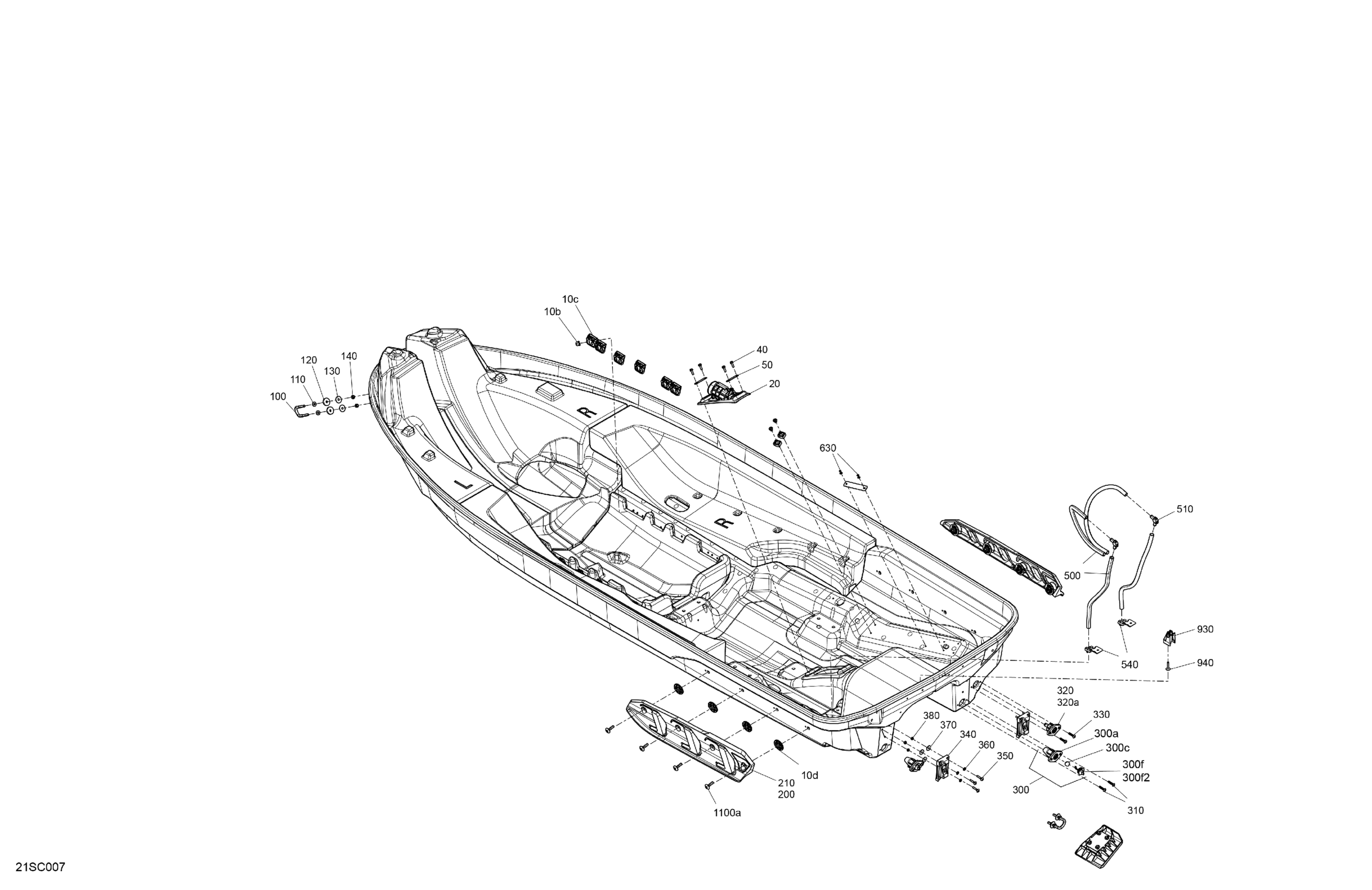

Sea-doo GTX PRO 130 (Rental), 2023 Body - Hull Diagram

#

Description
Price

10b

Rivet | Model-T3

293150067

$2.29

10c

Strap Retaining

270000933

$5.47

10d

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

10d1

Hex. Flange Nut M8

233181600

$0.86

20

Hull Insert

293450384

$28.57

40

Hex. Flange Screw M6.81 x 20

243162060

$3.30

50

Reinforcement

291004907

$1.86

100

U-Clamp

292000933

$32.47

110

Flat Washer M8.5 x 18

293050001

$1.29

120

Rubber Washer

293830037

$2.68

130

Flat Washer 8 mm, Stainless

250200175

$1.29

140

Hex. Elastic Nut M8 Brass

232581200

$1.29

200

RH Sponson

292001953

$53.27

210

LH Sponson

292001954

$63.67

300

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

$11.00

300a

Through Hull Fitting

292002765

$6.08

300c

Floating Ball

293830080

$5.56

300f

Plug Ass'y | Includes 300f to 300f2

292002022

$11.14

300f2

O-Ring

293300067

$0.85

310

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

320

Through Hull Fitting Ass'y | Includes 320 to 320a

292002768

$9.30

320a

Through Hull Fitting

292002765

$6.08

330

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

340

Ladder Trim Fastener

292002697

$6.59

350

Truss Cone Torx Screw M6 X 30

250000924

$6.15

360

Stainless Flat Washer M6

234061600

$0.25

370

Flat Washer M6.6 X 22

250200022

$1.87

380

Elastic Stop Nut M6, Brass

232561200

$3.51

500

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$5.94

510

Fitting Elbow 90°

293710152

$14.92

540

Plate

292002571

$11.00

630

Avdel Rivet 3/16"

293150037

$0.47

930

Strap Anchor

270000988

$8.06

940

Hexagonal Cap Screw M6 X35

250000399

$3.61

1100a

Torx Head Screw M8 X 35

250001215

$4.84
