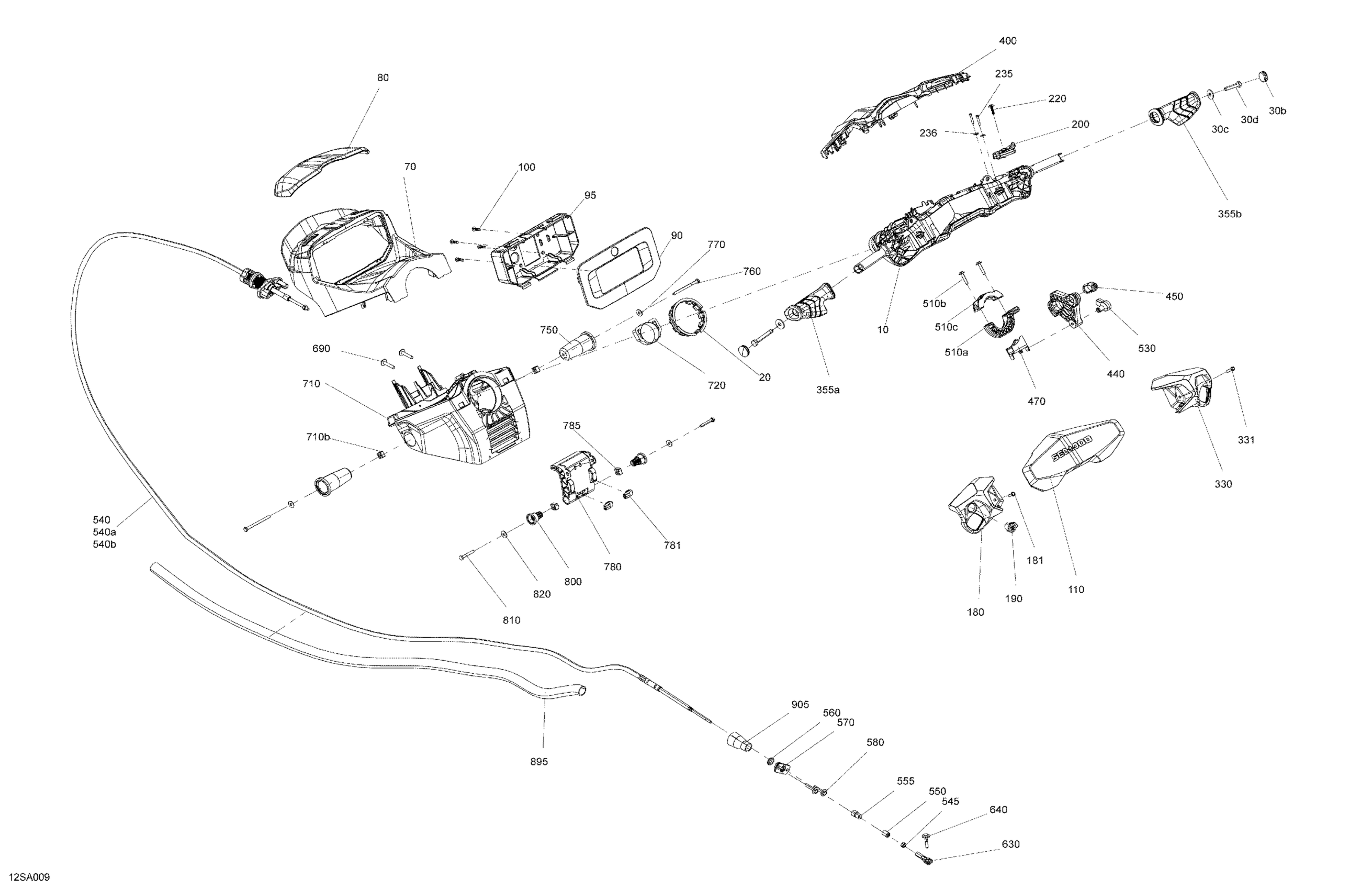

Sea-doo GTX PRO 130 (Rental), 2021 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column

277002134

$209.99

20

Wear Ring

277001874

$12.17

30b

Black, Cap

277000203

$9.39

30c

Flat Washer M6, Stainless

234062600

$0.77

30d

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.89

70

Cluster Support | Built Before Oct 2020

277001980

$61.99

70

Gauge Support

277002198

$45.99

80

Deep Black, Cluster Support Cover | Built Before Oct 2020

277001981

$26.99

80

Cluster Cover

277002160

$28.99

90

Speed Indicator Bezel | Built Before Oct 2020

705011286

$9.59

90

Speed Gauge Trim

705015356

$10.49

91

Deep Black, LH Trim Gauge

705012349

$5.59

92

Deep Black, RH Trim Gauge

705012351

$5.59

95

Gauge Housing

705015357

$28.99

100

Hex. Flange Screw K50 X 20

241152060

$1.99

110

Reef Blue, Steering Pad

277002132

$53.99

180

LH Cover

277002233

$18.99

181

Hex. Screw 10-14 X 7/8”

211000023

$3.59

190

Red Button Switch

277002327

$9.21

200

Hand Lever Accelerator

277002138

$38.99

220

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

235

Hex. Flange Screw K40 X 25

241142560

$2.64

236

Flat Washer 4 mm, Stainless

234042600

$1.15

330

RH Cover

277002236

$18.99

331

Hex. Screw 10-14 X 7/8”

211000023

$3.59

355a

LH Handlebar Grip

277002102

$20.99

355b

RH Handlebar Grip

277002101

$20.99

400

Steering Cover - No IBR

277002066

$68.99

440

Steering Arm Kit

295501183

$10.99

450

Not Available As Spare Part - Friction Washer

Unavailable

470

Spacer

277001654

$15.99

510a

Arm

277001987

$10.99

510b

Hexagonal Cap Screw M6 X35

250000399

$4.44

510c

C Clamp

277002085

$9.19

530

End Fitting Cable

277002119

$20.99

540

Steering Cable | Includes 540 to 540b

277002448

$275.49

540a

Hex. Nut 1/4"-28

211100056

$0.69

540b

Wiper Rod

277001582

$11.11

545

Hex. Nut 1/4"-28

211100056

$0.69

550

Wiper Rod

277001582

$11.11

555

End Piece

277001583

$14.49

560

Rubber Washer

293830063

$1.90

570

Ring Halves

277001856

$12.99

580

Hexagonal Cap Screw M6 X35

250000399

$4.44

630

Ball Joint

277000775

$51.99

640

Hex Sems Screw M6X35

250000970

$2.11

690

Hexagonal Cap Screw M6 X35

250000399

$4.44

710

Steering Support Ass'y | Built Before Oct 2020

277001993

$114.99

710

Steering Column Support Ass'y | Includes 710 to 710b2

277002158

$114.99

710b

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

720

Wear Ring

277002318

$15.99

750

Steering Support Pivot

277001605

$20.99

760

Hex Screw M6 X 80

207168060

$6.77

770

Flat Washer M6, Stainless

234062600

$0.77

780

Adjustment Handle

277001996

$10.38

781

Stopper

293830208

$7.69

785

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

800

Pivot

277001652

$15.99

810

Hex. Screw M6 X 40

207064060

$1.69

820

Flat Washer M6, Stainless

234062600

$0.77

895

Corrugated Sheath 22MM - 1250MM

276000520

$26.49

905

Rope Guide

277002150

$0.93
