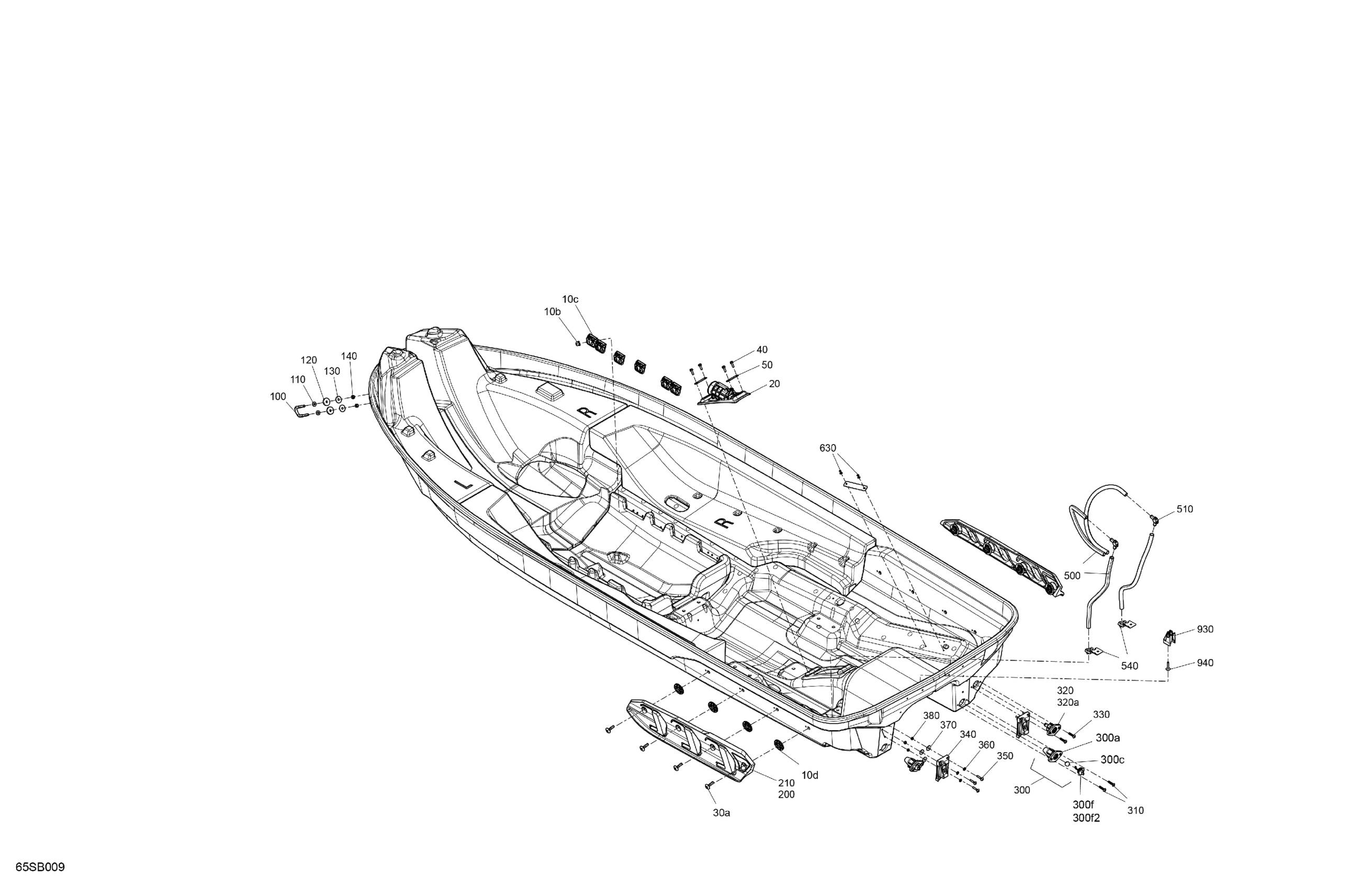

Sea-doo GTX PRO 130 IBR (Rental), 2022 Body - Hull Diagram

#

Description
Price

10b

Rivet | Model-T3

293150067

$2.89

10c

Strap Retaining

270000933

$6.99

10d

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$7.09

10d1

Hex. Flange Nut M8

233181600

$1.05

20

Hull Insert

293450384

$36.99

30a

Torx-Head Screw M8 X 35 This part replaces 250000572.

250000994

$3.91

40

Hex. Flange Screw M6.81 x 20

243162060

$3.72

50

Reinforcement

291004907

$2.89

100

U-Clamp

292000933

$59.49

110

Flat Washer M8.5 x 18

293050001

$3.07

120

Rubber Washer

293830037

$2.68

130

Flat Washer 8 mm, Stainless

250200175

$3.06

140

Hex. Elastic Nut M8 Brass

232581200

$2.22

200

RH Sponson

292001953

$54.99

210

LH Sponson

292001954

$65.99

300

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

$15.49

300a

Through Hull Fitting

292002765

$7.79

300c

Floating Ball

293830080

$7.19

300f

Plug Ass'y | Includes 300f to 300f2

292002022

$14.49

300f2

O-Ring

293300067

$1.04

310

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

320

Through Hull Fitting Ass'y | Includes 320 to 320a

292002768

$14.49

320a

Through Hull Fitting

292002765

$7.79

330

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

340

Ladder Attachment

292002113

$8.49

350

Truss Cone Torx Screw M6 X 30

250000924

$7.51

360

Stainless Flat Washer M6

234061600

$0.33

370

Flat Washer M6.6 X 22

250200022

$2.72

380

Elastic Stop Nut M6, Brass

232561200

$4.23

500

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$7.20

510

Fitting Elbow 90°

293710152

$18.49

540

Plate

292002571

$15.49

630

Avdel Rivet 3/16"

293150037

$0.56

930

Strap Anchor

270000988

$10.28

940

Hexagonal Cap Screw M6 X35

250000399

$4.44
