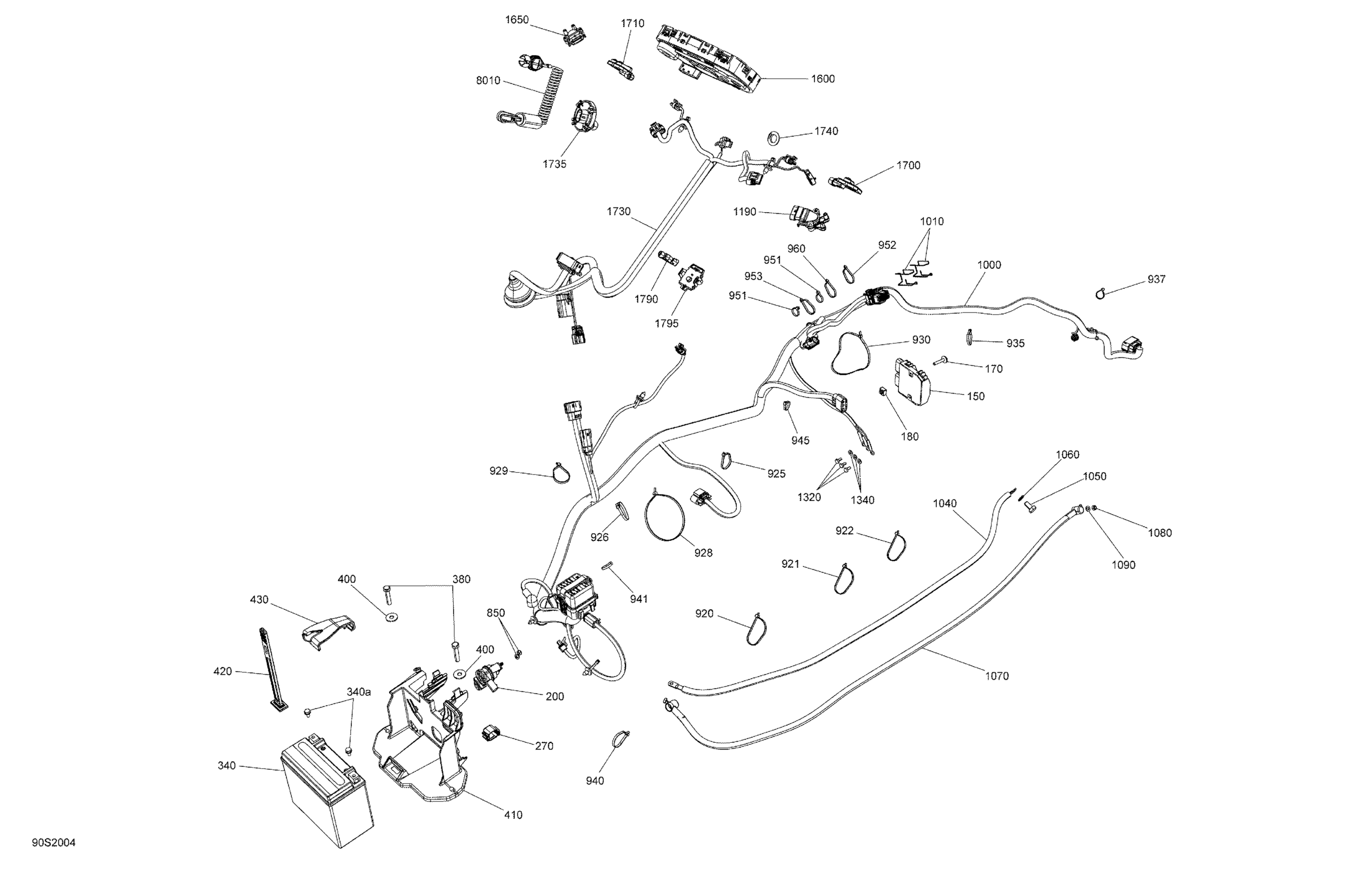

Sea-doo GTI 130 PRO (Rental), 2020 Electrical System Diagram

#

Description
Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

170

Hex Screw SEMS M6X35, SS

250000969

$1.74

180

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

200

Starter Relay

278003012

$35.07

270

Housing

710003006

$7.24

340

Battery 12 Volt 18AH

296000449

$126.07

340

Battery Ass'y, 18 Amperes | Brazil

515179099

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201279

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201282

Unavailable

340a

Battery Bolt Kit

250000282

$2.95

380

Hex. Screw M8 X 40

207184060

$1.85

400

Flat Washer 8 mm, Stainless

234082600

$1.98

410

Battery Support

278003671

$22.72

420

Strap

269502417

$14.27

430

Clip

278003521

$14.27

850

Elastic Stop Nut M6, Brass

232561200

$3.51

920

Tie-Rap 180 mm

414115200

$0.09

921

Tie-Rap 180 mm

414115200

$0.09

922

Tie-Rap 180 mm

414115200

$0.09

925

Tie-Rap 180 mm

414115200

$0.09

926

Tie Wrap 368 mm

293750008

$0.85

928

Tie Wrap 368 mm

293750008

$0.85

929

Tie Wrap 368 mm

293750008

$0.85

930

Tie Wrap 368 mm

293750008

$0.85

935

Tie Wrap 368 mm

293750008

$0.85

937

Tie-Rap 180 mm

414115200

$0.09

940

Tie-Rap 180 mm

414115200

$0.09

941

Tie-Rap 180 mm

414115200

$0.09

945

Tie-Rap 180 mm

414115200

$0.09

951

Tie-Rap 180 mm

414115200

$0.09

952

Tie-Rap 180 mm

414115200

$0.09

953

Tie-Rap 180 mm

414115200

$0.09

960

Tie-Rap 180 mm

414115200

$0.09

1000

Wiring Harness Main

278003704

$609.02

1000

Main Wiring Harness

278003803

$454.97

1010

Connector Lock (metal clip)

278003794

$9.29

1040

Battery Ground Cable

278003270

$41.51

1050

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.29

1060

Flat Washer 10 mm, Stainless

234000600

$1.07

1070

Cable-Starter

278003370

$36.89

1080

Elastic Stop Nut M6, Brass

232561200

$3.51

1090

Stainless Flat Washer M6

234061600

$0.25

1190

LH Throttle Sensor

278002284

$115.35

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1340

Stainless Flat Washer M6

234061600

$0.25

1600

LCD Gauge

278003580

$763.72

1650

Throttle Position Sensor

278002283

$94.22

1700

Switch LH Sport/Eco

278002768

$66.92

1710

Switch RH Mode/Set

278002602

$100.72

1730

Steering Harness Ass'y

278003559

$271.02

1730

Steering Harness Ass'y

278003827

$327.66

1735

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

1740

Safety Nut (DESS Switch)

278002963

$2.72

1790

O.T.A.S Actuator

278003537

$33.12

1795

O.T.A.S. Sensor

278003008

$86.42

8010

Safety Lanyard Ass'y, RFID

278003400

$58.47
