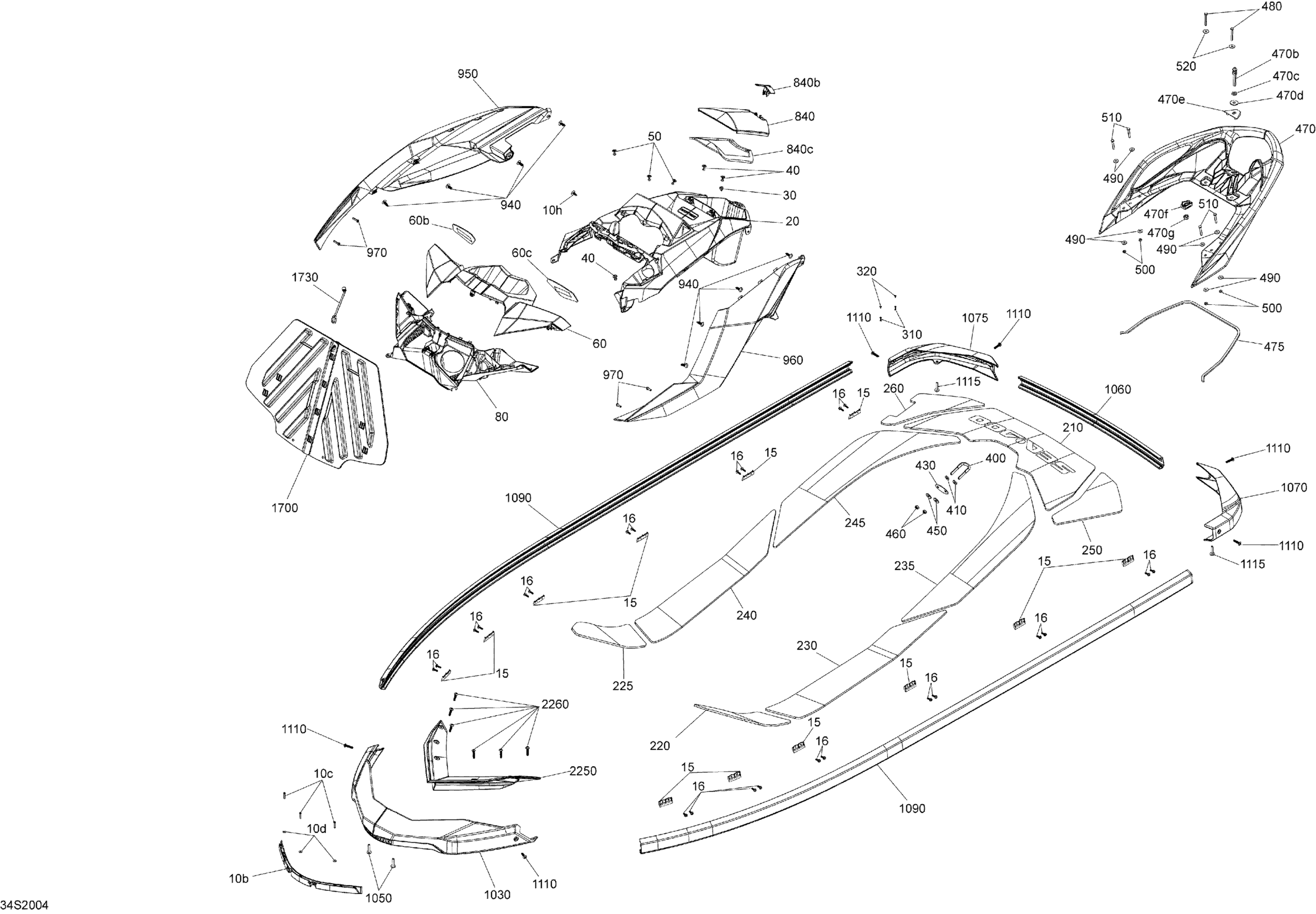

Sea-doo GTI 130 PRO (Rental), 2020 Body Diagram

#

Description
Price

10b

Deck Nose

291003897

$18.99

10c

Hex. Flange Screw K40 X 25

241142560

$2.64

10d

Flat Washer 4 mm, Stainless

234042600

$1.15

10h

Black, Dart

293730011

$0.99

15

Bumper Anchorage

291005313

$8.49

16

Torx Screw, Stainless

278002475

$5.93

20

Console

291004276

$134.99

30

Rubber Bumper

293830005

$8.09

40

Pop Rivet 3/16"

293150123

$4.29

50

Pop Rivet 3/16

293150186

$2.09

60<60c

Manta Green, Bezel Ass'y | Includes 60 TO 60c

291004264

$94.99

60b

Mirror RH, With Double-Face Tape

291003090

$48.49

60c

Mirror LH, With Double-Face Tape

291003091

$48.49

80

Deep Black, Mirror Support

291004271

$48.99

210

Swim Platform Carpet

291003096

$88.99

220

Anti Slip Mat Front LH

291005354

$14.82

225

Anti Slip Mat Front RH

291005355

$14.82

230

Anti Slip Mat Central LH

291005356

$24.99

235

Anti Slip Mat Rear LH

291005358

$24.99

240

Anti Slip Mat Central RH

291005357

$24.99

245

Anti Slip Mat Rear RH

291005359

$24.99

250

Rear Carpet LH

291003062

$20.49

260

Rear Carpet RH

291003063

$20.49

310

Rivet 1/8"

293150016

$0.40

320

Black, Snap Cap

293000014

$1.09

400

U-Clamp

292000933

$59.49

410

Flat Washer M8.5 x 18

293050001

$3.07

430

Black, Finition Plate

291001386

$10.99

450

Flat Washer 8 mm, Stainless

234082600

$2.43

460

Hex. Elastic Nut M8 Brass

232581200

$2.22

470<470g

Manta Green, Rear Handle Ass'y | Includes 470 TO 470g

291004627

$153.49

470b

Stud Seat

291003877

$48.99

470c

Hex. Jam Nut M10

232100600

$2.22

470d

Flat Washer 10 mm, Stainless

234002600

$2.22

470e

Seat Stud Spacer

269002125

$8.19

470f

SEAT STUD SUPPORT - Call your local BRP dealership

269002126

$8.19

470g

Elastic Stop Nut M10, Brass

232501200

$2.64

475

Gasket 3000Mm Long

219704378

$26.49

480

Hex. Screw M6 X 50

207065060

$2.22

490

Flat Washer M6, Stainless

234062600

$0.77

500

Elastic Stop Nut M6, Brass

232561200

$4.23

510

Hex. Screw M6 X 40

207164060

$3.38

520

Flat Washer M6.6 X 22

250200022

$2.72

840<840c

Deep Black, Glove Door Ass'y | Includes 840 TO 840c

269502140

$65.99

840b

Black, Latch

264000164

$15.99

840c

Gasket

293250236

$41.49

940

Black, Dart

293730006

$0.99

950

Manta Green RH Cosmetic Panel

269502189

$204.99

960

Manta Green LH Cosmetic Panel

269502190

$204.99

970

Hex. Screw 10-14 X 7/8”

211000023

$3.59

1030

Front Bumper This part replaces 291005401.

291004277

$76.49

1050

Hexagonal Cap Screw M6 X35

250000399

$4.44

1060

Black, Side Bumper

291004451

$58.49

1070

Black, Corner Bumper This part replaces 291004152.

291004278

$33.99

1075

Black, Corner Bumper This part replaces 291004153.

291004279

$33.99

1090

Black, Side Bumper

291004451

$58.49

1110

Screw Torx M6.81 X 30

250001007

$2.54

1115

Hexagonal Cap Screw M6 X35

250000399

$4.44

1700

Panel, Divider Ass'y

291005160

$104.99

1730

Holding Strap

269502111

$18.49

2250

Deep Black, Body Deflector

291004273

$26.99

2260

Screw Torx M6.81 X 30

250001007

$2.54
