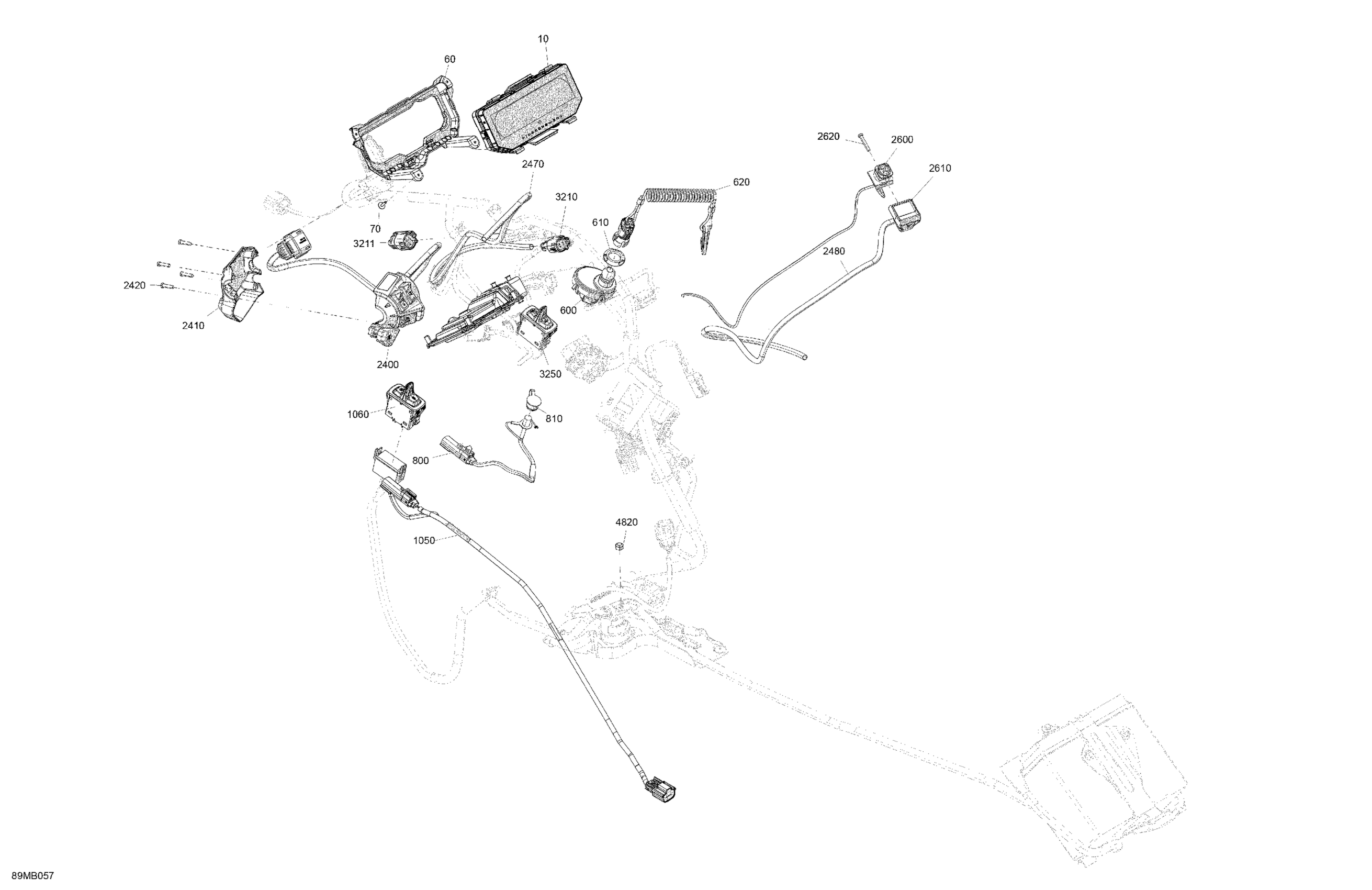

Ski-Doo GRAND TOURING 900 ACE TURBO R - LTD - 2022 Electric - Upper Section - VIP Medium Diagram

Description

Price

Multifunction Gauge Full Size Mono

515178227

$559.99

Gauge Support

515178965

$6.69

Screw M4 X 16

250000725

$3.49

600

Ignition Switch

710006855

$81.49

610

Safety Nut (DESS Switch)

278002963

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

800

Heated Visor Wiring Harness

515178645

$38.99

810

Cap

572103300

$10.49

1050

Seat Wiring Harness

515178608

$38.99

1060

Switch Rocker

515178503

$20.49

2400

LH Switch Housing

515178196

$284.99

2410

Housing Plate

515177147

$20.99

2420

Torx Screw

250000671

$1.01

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515177931

$76.49

2610

Emergency Stop Switch Support

515177310

$9.19

2620

Torx Screw #8-18

250000263

$1.04

3210

4 Circuits Female Housing

515178177

$12.18

3211

Coil Connector

515178202

$13.24

3250

Rocket Switch

515178501

$20.49

4820

Elastic Stop Nut M6

232561434

$1.99

5001

Extension

515175851

$11.12
