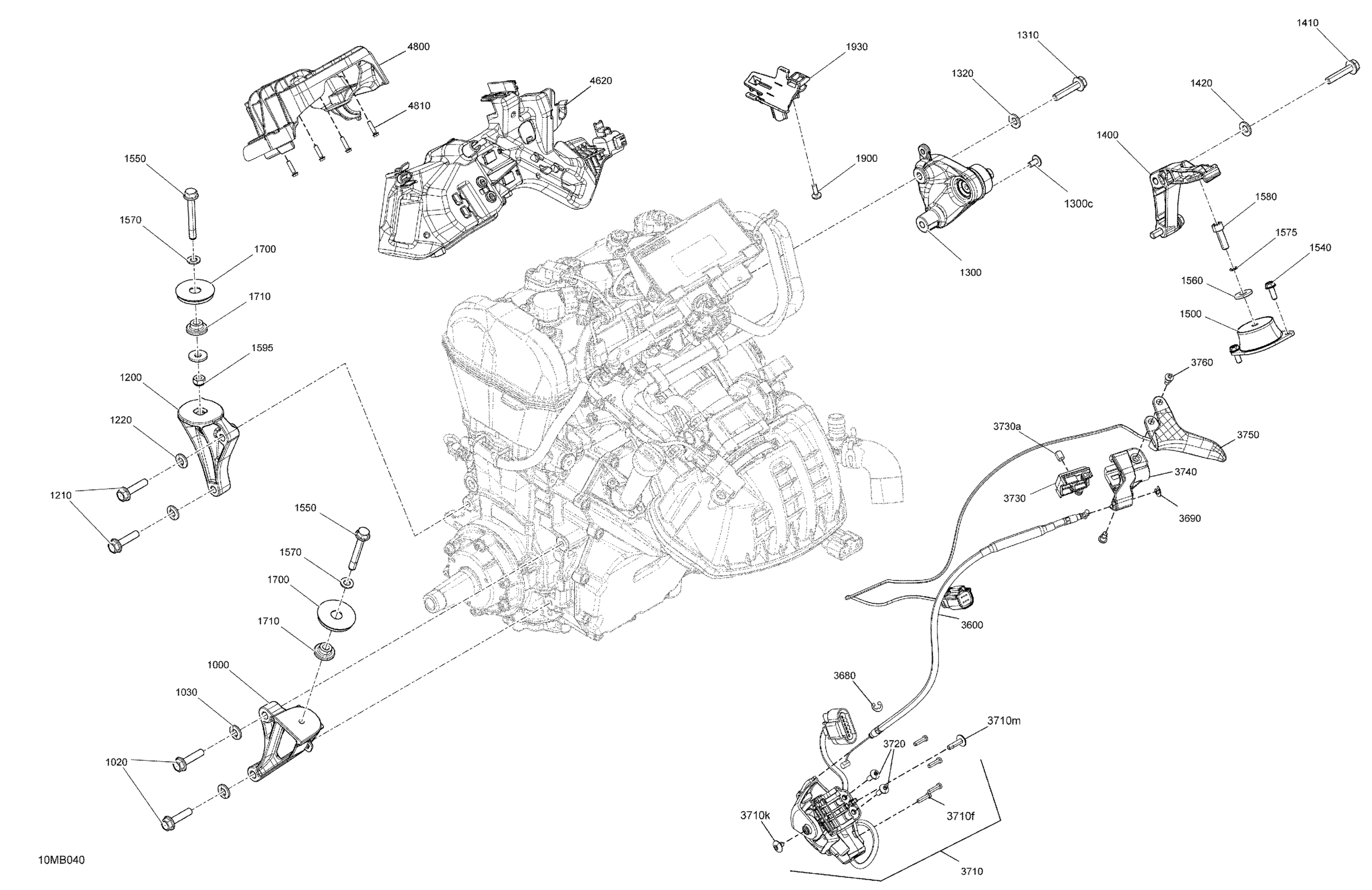

Ski-Doo GRAND TOURING 900 ACE TURBO R - LTD - 2022 Engine - System Diagram

#

Description
Price

1000

Rear PTO Support

512061220

$17.66

1020

Hex. Flange Screw M8 X 35

250000986

$1.74

1030

Conical Spring Washer M8

250200146

$0.83

1200

Front PTO Support

512061193

$17.66

1210

Hex. Flange Screw M8 X 35

250000986

$1.74

1220

Conical Spring Washer M8

250200146

$0.83

1300

Engine Support Ass'y | Includes 1300 to 1300c

512061519

$102.28

1300c

Torx Truss Screw M6 X 12

250000767

$1.66

1310

Hex. Flange Screw M8 X 40 Scotch.GRIP

250001057

$1.26

1320

Conical Spring Washer M8

250200146

$0.83

1400

Rear Support, Mag

512061194

$18.43

1410

Hex. Flange Screw M8 X 40 Scotch.GRIP

250001057

$1.26

1420

Conical Spring Washer M8

250200146

$0.83

1500

Rubber Mount

512061514

$69.97

1540

Hex. Flange Screw M6 X 16

250001062

$1.43

1550

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$1.74

1560

Yellow, Washer

503183200

$3.00

1570

Flat Washer With Teflon 8 mm

250200008

$3.12

1575

O-Ring

293300123

$1.00

1580

Socket Head Screw M8 X 25

205082544

$0.92

1595

Hex. Elastic Stop Nut M8

232581414

$0.47

1700

Engine Stopper

512061408

$17.66

1710

Spacer

512060285

$17.66

1900

Torx Screw K50 X 16

250000720

$1.39

1930

Support Solenoid

512061327

$5.22

3600

Throttle Cable

512061396

$16.12

3680

Circlip

414274500

$0.74

3690

Circlip

414274500

$0.74

3710

Throttle Housing Ass'y | Includes 3710 to 3710m

512061406

$278.43

3710f

Torx Screw

250000671

$0.83

3710k

Screw

512060961

$10.52

3710m

Torx Screw M5 X 20

250000528

$1.74

3720

Torx Screw M5 X 14

250000742

$1.20

3730

Upper Housing

512060859

$8.38

3730a

Socket Set Screw M8 X 10

414440800

$4.00

3740

Lower Housing

512060860

$16.89

3750

Throttle Ass'y

512061266

$114.58

3760

Flange Screw M5x12

250000991

$6.18

4620

Multi Purpose Support

512061395

$14.05

4800

Module Support

512061397

$14.54

4810

Hex. Flange Screw K40 X 16

241141660

$1.25
