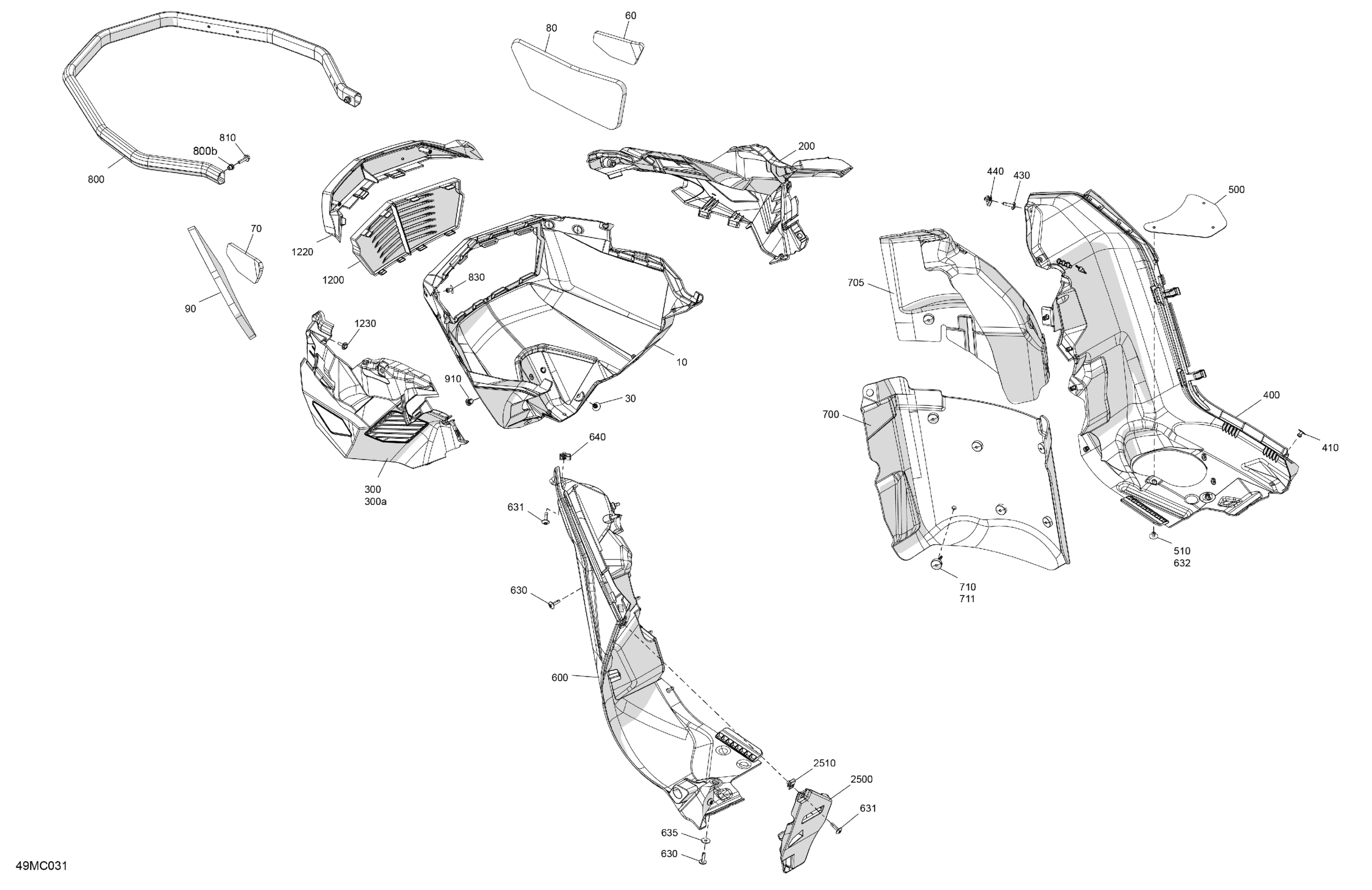

Ski-Doo 005 - FREERIDE 154 - 850 E-TEC Turbo R - (VDPF) - North America, 2023 07- Body - Bottom Pan Diagram

Deep Black, Front Bottom Pan

502008525

$194.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

RH Front Central Bottom Pan Foam

502008308

$9.59

LH Front Central Bottom Pan Foam

502008309

$13.99

Bonded Foam

502008355

$19.49

Bonded Foam

502008356

$7.89

Deep Black, RH Bottom Pan Cap

502008262

$70.99

Deep Black, LH Bottom Pan Cap Ass'y | Includes 300 to 300d

502008530

$124.99

Deep Black, LH Bottom Pan Cap

502008263

$70.99

LH Front Heat Shield

502008487

$4.79

LH Front Heat Shield

502008575

$4.39

Stopper This part replaces 502008396.

502008621

$1.99

Deep Black, RH Bottom Pan

502008759

$109.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Torx Truss M5 X 20

250000586

$4.44

Panel Nut M5 X 0.8

250000958

$4.23

Plate

502008690

$8.19

Pop Rivet 3/16"

293150103

$0.55

Deep Black, LH Bottom Pan

502008236

$93.99

Torx Truss M5 X 20

250000586

$4.44

Torx Truss M5 X 20

250000586

$4.44

Pop Rivet 3/16"

293150103

$0.55

Washer M5

250200025

$0.74

Panel Nut M5 X 0.8

250000958

$4.23

Acoustic Panel

502008754

$45.99

Acoustic Panel

502008241

$45.99

Stopper This part replaces 502008396.

502008621

$1.99

Stopper This part replaces 502008396.

502008621

$1.99

Spartan Red, Front Bumper

502008383

$116.49

Insert M5 X 0.8

293450268

$2.09

Horn Bracket

502008424

$18.49

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Panel Fastener

518321954

$7.69

Lower Prefilter Grille

502008245

$27.99

Upper Prefilter Grille

502008243

$27.99

Screw M4 X 16

250000725

$3.49

LH Lower Bottom Pan Support

502008357

$19.99

Panel Nut M5 X 0.8

250000958

$4.23

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19
