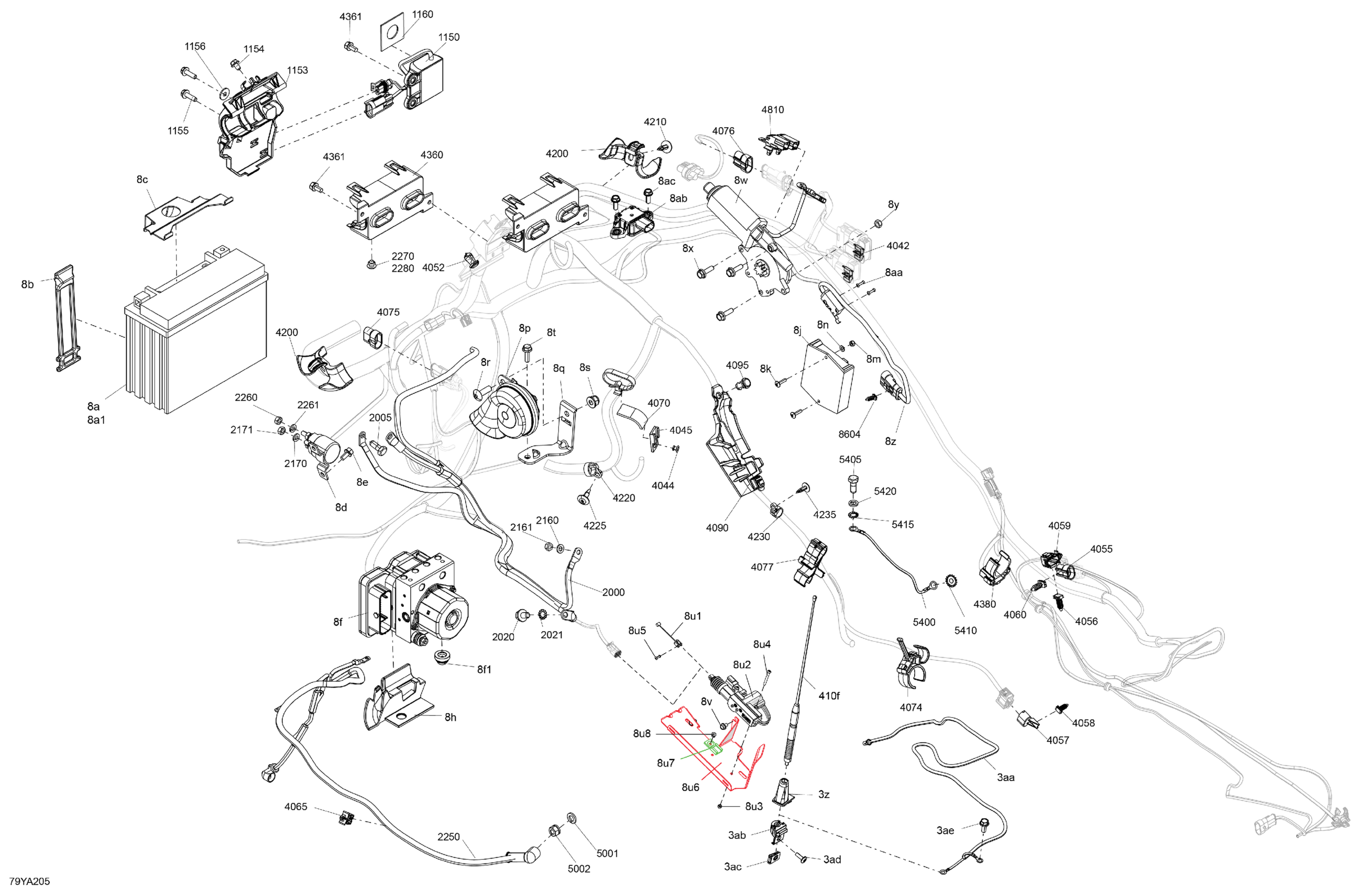

Can-Am F3 T - Pearl White, 2021 Electric - System Diagram

#

Description
Price

2e

Torx Truss Screw M6 X 16

250000721

$1.60

3z

Antenna Cap

708302051

$25.99

3aa

Antenna Cable Ass'y

710006406

$86.99

3ab

Antenna Support | Includes 0ah to 0ah1

708301797

Unavailable

3ac

Panel Nut M6 X 1.0

250100208

$1.22

3ad

Torx Screw M6 X 20

250000722

$1.54

3ae

Hex. Flange Screw M8 X 20

207682044

$1.06

8a

Battery, 12 Volts, 21 Amperes

410922962

$184.30

8a1

Battery Bolt Kit

250000282

$3.39

8b

Latch

520000528

$6.40

8c

Battery Holder

710002893

$17.49

8d

Starter Relay

710007777

$45.49

8e

Hex. Flange Screw M6 X 12

210261250

$1.79

8f

VCM Wet Prog & Grommet Module Kit | Includes 8h to 8h2

219800502

$1,209.99

8f1

Shock Damper

710003279

$9.28

8h

VCM Harness Protector

710003996

$2.79

8j

PBM Module Ass'y

710005887

$479.99

8k

Torx Screw M4 X 16

250000750

$1.57

8m

Elastic Stop Nut M4

232541484

$0.70

8n

Flat Washer 4 mm

234041480

$0.70

8p

Horn

710004940

$29.49

8q

Horn Support

710005769

$15.99

8r

Torx Truss M8 X 25

250000874

$2.00

8s

Hex. Flange Elastic Nut M8

233281414

$1.31

8t

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

8u1

Reverse Cable

710002889

$31.99

8u2

Actuator

710011269

$64.99

8u3

Elastic Stop Nut M4

232541414

$0.55

8u4

Socket Head Screw M4 X 40

205444056

$2.00

8u5

Pop Rivet 5/32

390403000

$0.33

8u6

Reverse Actuator Support

710005642

$30.99

8u7

Clip

270000141

$9.57

8u8

Pop Rivet 3/16"

390402400

$0.28

8v

Hex. Flange Screw M6 X 12

210261250

$1.79

8w

Actuator Motor

710007256

$227.99

8x

Hex. Flange Screw M6 X 20

207662054

$0.96

8y

Elastic Stop Nut M6

232561434

$1.78

8z

Brake Pressure Switch Ass'y

710001379

$40.27

8aa

Pop Rivet

293150150

$1.85

8ab

Yaw Rate Sensor

710005658

$158.18

8ac

Hex. Flange Screw M6 X 16

210261650

$1.40

410f

Antenna

710005434

Unavailable

1150

Dess Module

710004916

$179.99

1153

Wire Support

710004308

$13.49

1154

Hex. Forming Screw M6 X 10

210261050

$1.63

1155

Hexagonal Head Screw

210262050

$2.00

1156

Flat Washer 6 mm

234062410

$0.73

1160

Rubber Bumper

293830091

$7.37

2000

Starter Cable Ass'y

710006399

$84.99

2005

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

2020

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.06

2021

Serrated Lock Washer 8 mm

234481608

$1.06

2160

Stainless Flat Washer M6

234061600

$0.28

2161

Elastic Stop Nut M6

232561434

$1.78

2170

Lock Washer Helical M6

234161601

$1.06

2171

Hex. Nut M6

232061600

$1.04

2250

Pos Cable

710005026

$84.99

2260

Hex. Nut M6

232061600

$1.04

2261

Lock Washer Helical M6

234161601

$1.06

2270

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.43

2271

Hex. Nut M6

232061600

$1.04

2272

Lock Washer Helical M6

234161601

$1.06

2280

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.43

2281

Hex. Nut M6

232061600

$1.04

2282

Lock Washer Helical M6

234161601

$1.06

4042

Lock

710001222

$1.93

4044

Pop Rivet 3/16"

390402400

$0.28

4045

Clip

270000141

$9.57

4052

Tuflok Plastic Rivet

293150230

$1.39

4055

Connector Plug

710004906

$13.22

4056

Connector Holder

710002033

$3.12

4057

Connector Plug

710004902

$2.85

4058

Connector Holder

710002033

$3.12

4059

Connector Plug

710004903

$2.85

4060

Connector Holder

710002033

$3.12

4065

Support Cable

293750083

$2.00

4070

Rubber Pad

709000401

$9.49

4074

Support

710004613

$8.29

4075

Connector Plug

710004901

$13.22

4076

Connector Plug

710004901

$13.22

4077

Wire Support

710004669

$6.79

4090

Harness Holder

710004794

$3.39

4095

Tuflok Plastic Rivet

293150230

$1.39

4200

Harness Holder

710004931

$1.59

4210

Tuflock Phillips Plastic Screw

414745900

$1.49

4220

Tie Rap

710004424

$6.29

4225

Tuflock Phillips Plastic Screw

414745900

$1.49

4230

Tie Rap

710004424

$6.29

4235

Tuflock Phillips Plastic Screw

414745900

$1.49

4360

Fuse Holder Support

710004472

$8.58

4361

Hex. Flange Screw M6 X 12

210261250

$1.79

4380

Cable Support

710004299

$4.19

4810

Connector With Cap

710004456

$12.49

5001

Lock Washer 8 mm, Stainless

234181601

$0.52

5002

Hex. Nut M8

232081414

$0.69

5400

Fuel Tank Cable

710006436

$19.49

5405

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.81

5410

Lock Washer Serrated M6

250200041

$1.06

5415

Serrated Lock Washer 8 mm

234481608

$1.06

5420

Washer

250200111

$2.00

8604

Connector Holder

710002033

$3.12
