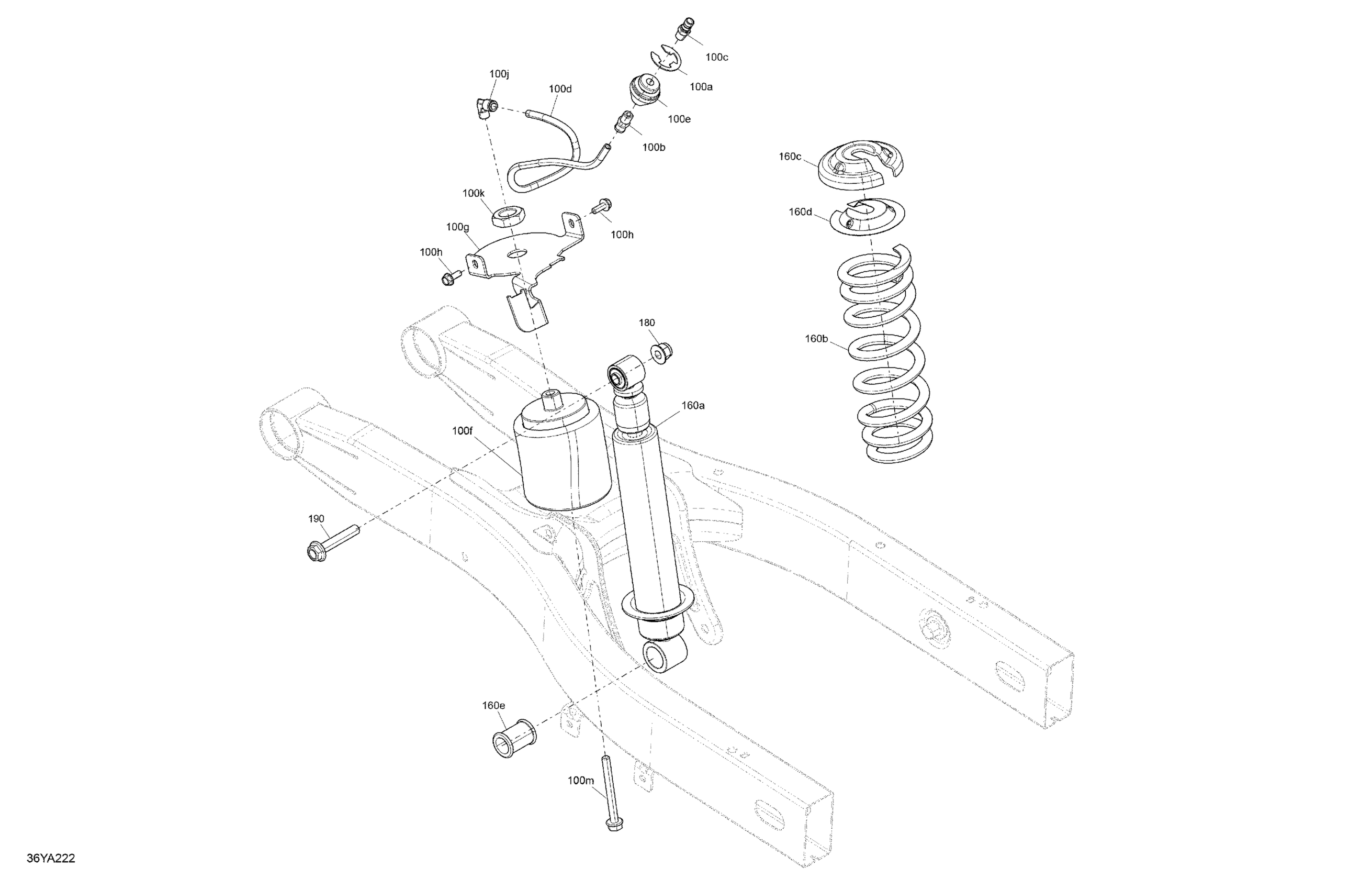

Can-Am F3 T - Pearl White, 2021 Suspension - Rear Shocks Diagram

Description

Price

100a

Circlip

293370123

$2.69

100b

Connector

706000869

$34.99

100c

Air Valve

706002797

$18.49

100d

Hose

706002679

$9.21

100e

Pneumatic Connector

706004028

$19.49

100f

Air Damper Kit

219800175

$291.49

100g

Support Plate

706002456

$24.99

100h

Hex. Forming Screw M6 X 10

210261050

$1.69

100j

Elbow 90°

706001018

$28.99

100k

Jam Nut M20

250100119

$4.13

100m

Hex. Flange Screw M8 X 75

207687544

$7.41

160a

Shock

706001706

$137.49

160b

Spring

706001707

$49.99

160c

Spring Stopper

503193781

$18.49

160d

Cap

503193782

$10.49

160e

Urethane Cushion

503191609

$18.49

180

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

190

Hex. Flange Screw M10 X 55

207605554

$7.62
