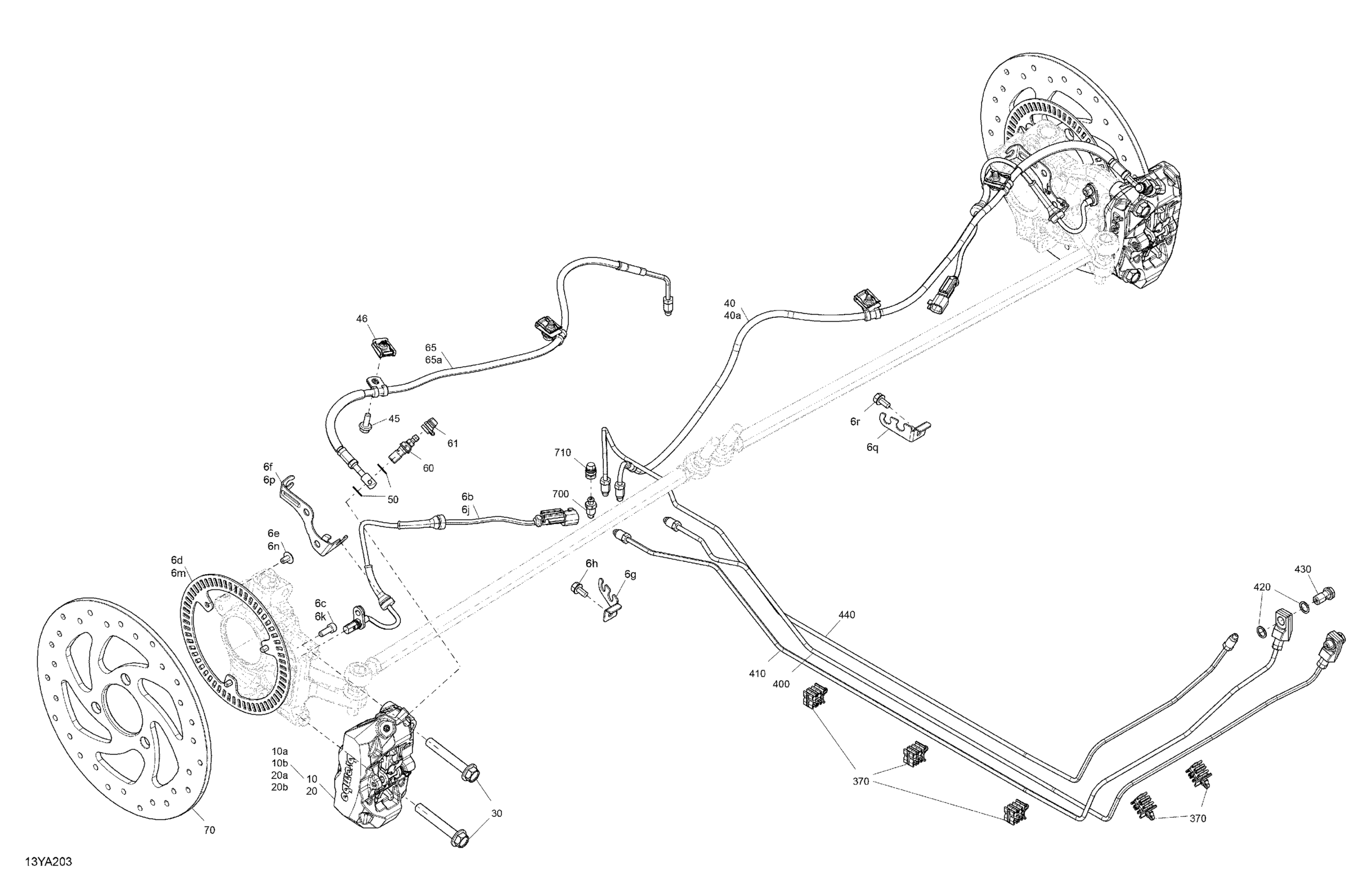

Can-Am F3 T - Pearl White, 2021 Mechanic - Front Brakes Diagram

#

Description
Price

6b

Speed Sensor

710006981

$83.99

6c

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

6d

Front Sensor Wheel

705601512

$43.99

6e

Torx-truss M/s M6 X 10

250000995

$4.44

6f

LH Support Wire

710004860

$2.29

6g

Speed Sensor Holder

710003156

$11.49

6h

Hex. Flange Screw M6 X 12

210261250

$1.90

6j

Speed Sensor

710006981

$83.99

6k

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

6m

Front Sensor Wheel

705601512

$43.99

6n

Torx-truss M/s M6 X 10

250000995

$4.44

6p

RH Support Wire

710004861

$2.29

6q

Speed Sensor Holder

710003157

$11.49

6r

Hex. Flange Screw M6 X 12

210261250

$1.90

10

LH Front Caliper | Includes 10 to 10b

705600987

$381.49

10a

Brake Pad Kit

219800237

$79.49

10b

Spring/Pin/Clip Kit

219800238

$26.99

20

RH Front Caliper | Includes 20 to 20b

705600988

$381.49

20a

Brake Pad Kit

219800237

$79.49

20b

Spring/Pin/Clip Kit

219800238

$26.99

30

Hex Flange Screw M10 X 65

207506556

$6.77

40

RH Front Brake Hose Flexible | Includes 40 to 40a

705601672

$61.49

40a

Clamp

293650256

$5.49

45

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.11

46

Panel Nut M6 X 1.0

250100208

$1.46

50

Washer

414920600

$1.90

60

Banjo Bolt/ Bleeder

705601201

$19.99

61

Bleeder Bolt Cap

705601190

$4.44

65

LH Front Brake Hose Flexible | Includes 65 to 65a

705601673

$61.49

65a

Clamp

293650256

$5.49

70

Front Brake Disk

705601631

$153.99

370

Anchorage Tube

705601987

$5.18

400

Tandem Rigid Tube | Includes 400 to 400a

705601157

$31.99

410

Tandem Rigid Tube | Includes 410 to 410a

705601158

$31.99

420

Washer

414920600

$1.90

430

Banjo Bolt

507032551

$5.61

440

Rear Brake Rigid Tube

705601159

$31.99

700

Bleeder Screw

705600502

$11.11

710

Bleeder Bolt Cap

705601190

$4.44
