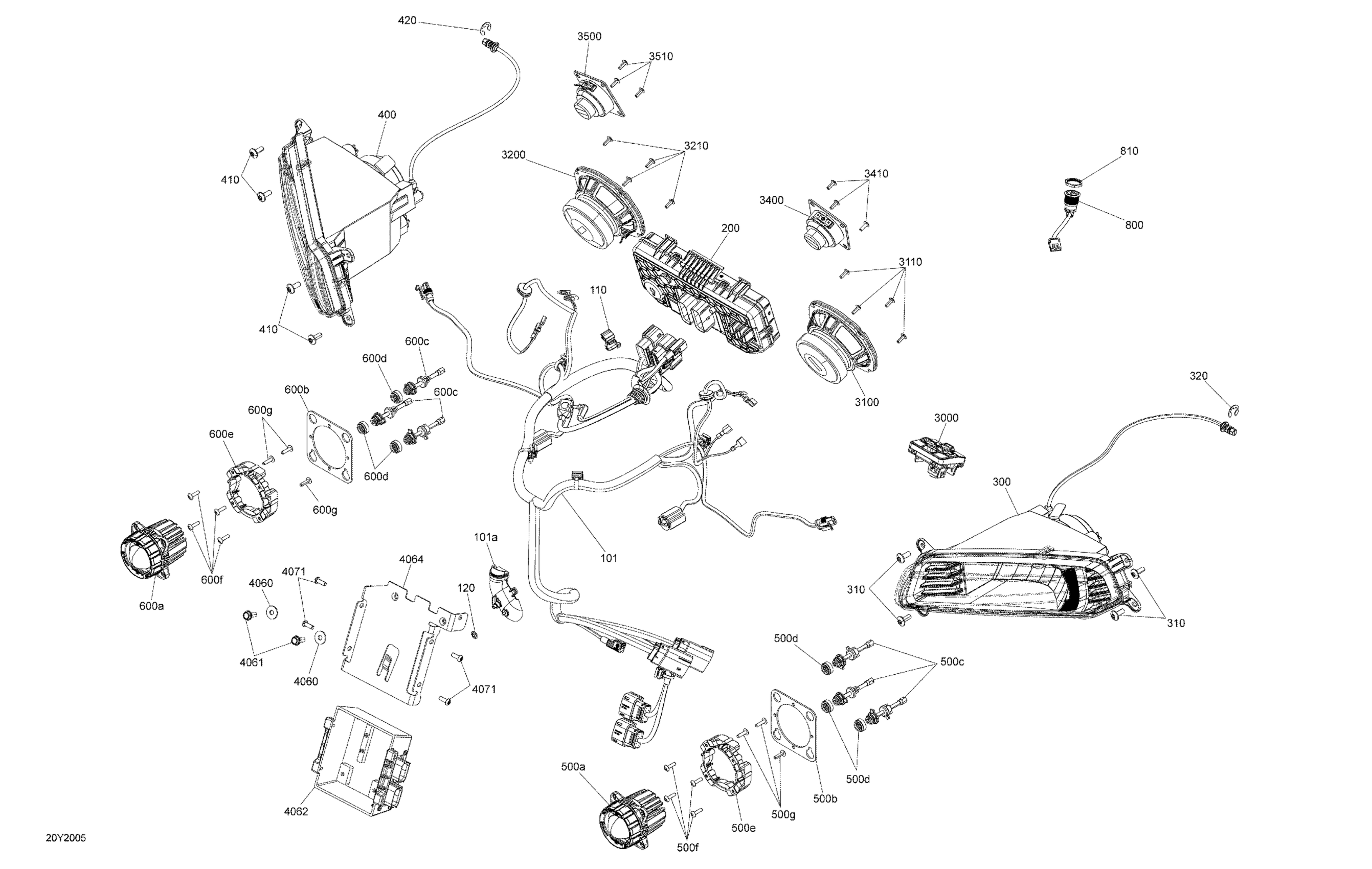

Can-Am F3 LTD SE6, 2021 Electrical System Console Diagram

#

Description
Price

101

Console Wiring Harness

710008436

$350.00

101

Console Wiring Harness

710008437

$350.00

101a

Cable Support

710004693

$13.00

110

Clip Tie-Rap

293750063

$8.45

120

Push Nut

250100034

$1.11

200

Multifunction Gauge | Models Liquid Titan

710006873

$1,220.00

300

LH Headlight | Includes 0b to 0b3

710006997

$240.00

310

Torx Truss Screw M6 X 16

250000721

$1.39

320

E-Circlip

293370013

$0.62

400

RH Headlight | Includes 0d to 0d3

710006998

$240.00

410

Torx Truss Screw M6 X 16

250000721

$1.39

420

E-Circlip

293370013

$0.62

500a

Low Beam Ass'y

710006007

$350.00

500b

Headlight Support

710007188

$15.00

500c

Adjustment Screw

710007200

$10.00

500d

Clip

293730095

$2.00

500e

Adapter

710007189

$4.00

500f

Torx-Truss Pt K40 X 16

250000759

$1.74

500g

Torx-Truss Pt K40 X 16

250000759

$1.74

600a

Low Beam Ass'y

710006007

$350.00

600b

Headlight Support

710007188

$15.00

600c

Adjustment Screw

710007200

$10.00

600d

Clip

293730095

$2.00

600e

Adapter

710007189

$4.00

600f

Torx-Truss Pt K40 X 16

250000759

$1.74

600g

Torx-Truss Pt K40 X 16

250000759

$1.74

800

Switch

710004598

$132.00

810

Nut

710004108

$6.00

3000

Audio Keypad

710006793

$89.00

3100

4.5" Speaker

710005433

$36.00

3110

Torx Truss Screw K40 X 12

250000577

$1.74

3200

4.5" Speaker

710005433

$36.00

3210

Torx Truss Screw K40 X 12

250000577

$1.74

3400

2.5" Speaker

710005432

$22.00

3410

Torx Truss Screw K40 X 12

250000577

$1.74

3500

2.5" Speaker

710005432

$22.00

3510

Torx Truss Screw K40 X 12

250000577

$1.74

4003

Wiring Harness Adaptor

710007387

$21.00

4060

Stainless Steel Flat Washer

234062670

$1.74

4061

Hex. Flange Screw M6 X 16

210261650

$1.22

4062

Amplifier 6 x 20 Watts

710006566

$455.00

4064

Amplifier Holder

710005814

$17.00

4071

Screw-Torx Button Head M5 X 14

235551454

$7.31
