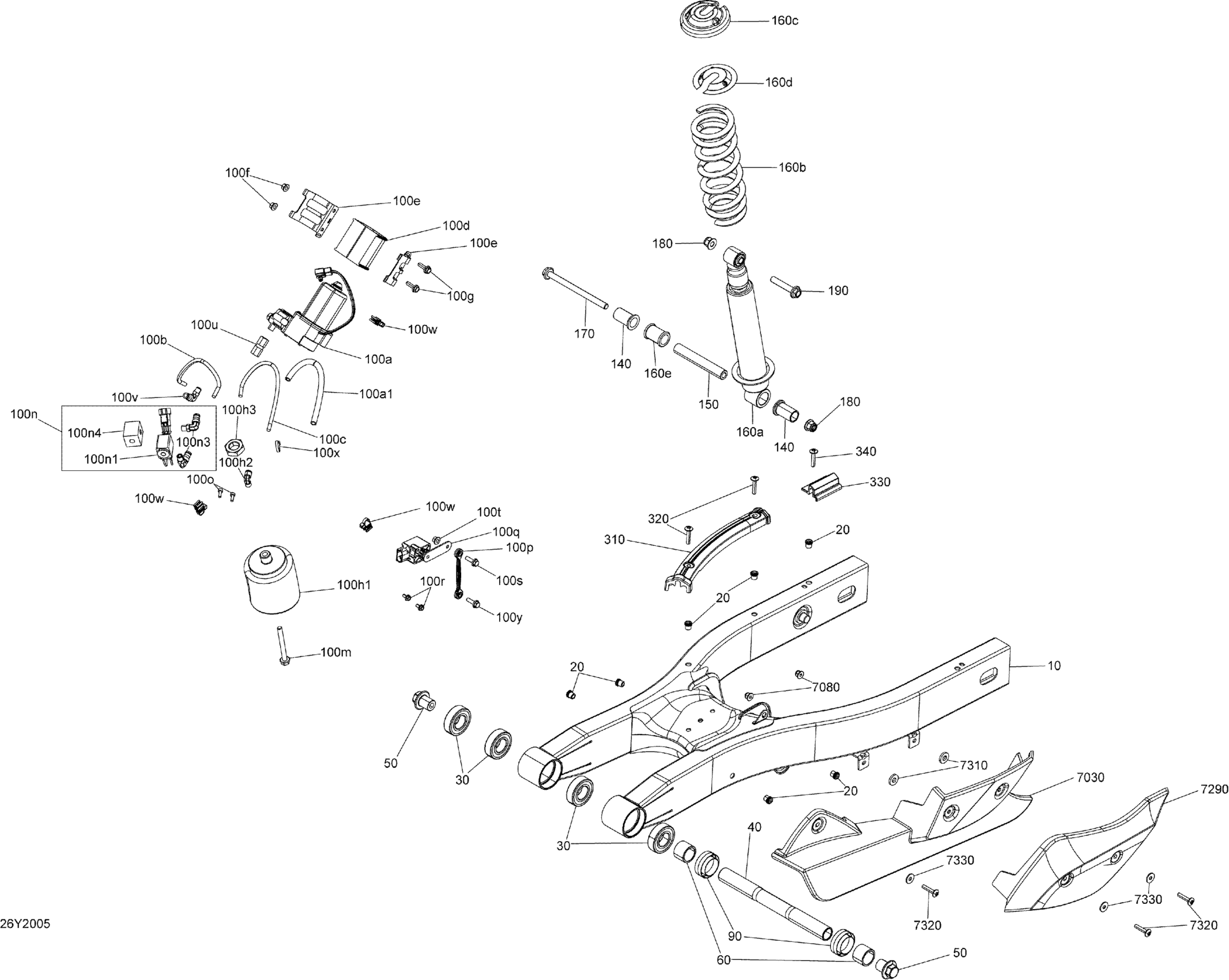

Can-Am F3 LTD SE6, 2020 Suspension, Rear Diagram

#

Description
Price

10

Swing Arm

706001574

$455.99

20

Insert

293450275

$12.99

30

Ball Bearing

293350115

$12.11

40

Swing Arm Axle

706001182

$93.99

50

Bolt M20

706001579

$16.87

60

Spacer

706001152

$9.49

90

Sleeve

706001366

$1.26

100a

Compressor

706001349

$469.99

100b

Hose 4.32Mm 3000Mm Long

219704415

$55.99

100c

Hose 1/4

706001211

$19.99

100d

Compressor Isolator

706000631

$13.99

100e

Compressor Bracket

503193103

$4.69

100f

Hex. Flange Nut M6

233061414

$1.68

100g

Hex. Flange Screw M6 X 20

207662044

$2.00

100h<100h3

Air Damper Kit

219800175

$291.49

100h1

Not Available As Spare Part - Friction Washer

Unavailable

100h2

Elbow 90°

706001018

$28.99

100h3

Jam Nut M20

250100119

$4.13

100m

Hex. Flange Screw M8 X 75

207687544

$7.41

100n

Pressure Collector Ass'y | Included 100r to 100r4

706002169

$299.99

100n1

Not Available As Spare Part - Friction Washer

Unavailable

100n3

Elbow 90°

706000928

$27.99

100n4

Plug 1/8”-27

504151921

$4.19

100o

Socket Head Screw M4 X 12

205041254

$2.11

100p

Tie Rod

706202505

$23.99

100q

Position Sensor | Package LTD

710004600

$154.99

100r

Hex. Flange Screw M5 X 10

207551044

$4.12

100s

Hex. Flange Screw M6 X 20

207662044

$2.00

100t

Hex. Flange Nut M6

233061414

$1.68

100u

Ckeck Valve

706000831

$38.99

100v

Elbow 90°

706000928

$27.99

100w

Clip Tie-Rap

710002899

$8.49

100x

Tie-Rap 180 mm

414115200

$0.11

100y

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

100a1

Tubing 6 Mm 3000Mm Long

219704425

$13.75

140

Spacer

706000410

$13.99

150

Shock Absorber Shaft

706000409

$49.99

160a

Shock

706001706

$137.49

160b

Spring

706001707

$49.99

160c

Spring Stopper

503193781

$18.49

160d

Cap

503193782

$10.49

160e

Urethane Cushion

503191609

$18.49

170

Hex. Flange Screw M10 X 140

230604034

$6.77

180

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

190

Hex. Flange Screw M10 X 55

207605554

$7.62

310

Protector

710004281

$25.99

320

Torx Truss Screw M6 X 30

250000843

$2.11

330

Hose Support

710002145

$7.89

340

Torx Truss Screw M6 X 30

250000843

$2.11

7030

Lower Belt Guard

705002092

$48.99

7080

Hex. Flange Elastic Nut M6

233261494

$1.58

7290

Belt Guard Moulding

705009446

$35.99

7310

Self-Adhesive Spacer

705015250

$3.99

7320

Stainless, Torx Screw M6 X 30

250000842

$2.11

7330

Stainless Steel Flat Washer

234062670

$2.11
