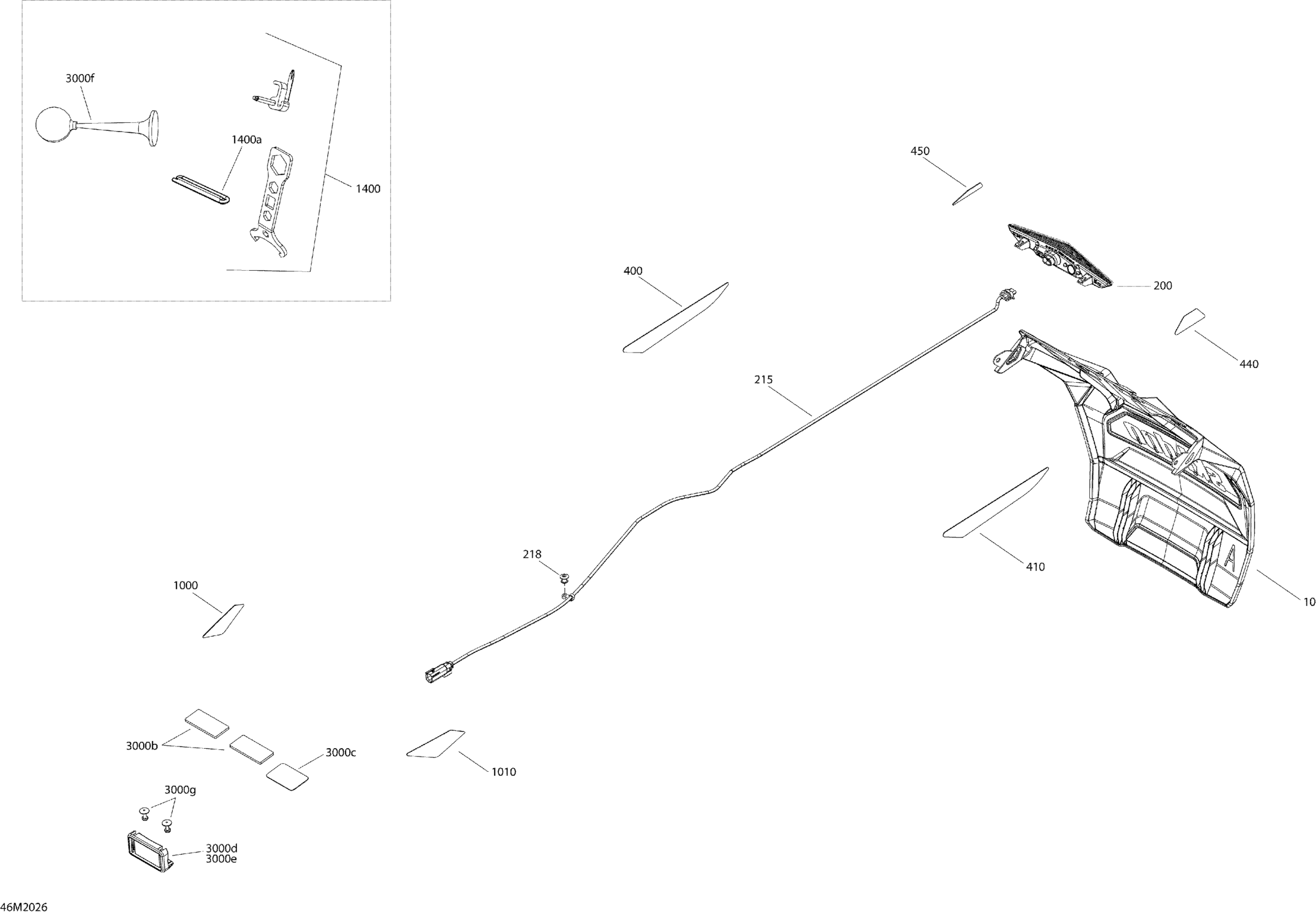

Ski-Doo EXPEDITION XTREME 850 E-TEC, Europe, 2020 Utilities Diagram

Description

Price

Snow Guard

520002056

$106.99

200

Tail Light

520002636

$105.99

215

Taillight Wiring Harness

515178634

$58.99

218

Pop Rivet 3/16"

390402200

$0.35

220

Grommet

293720101

$0.77

400

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

410

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

440

LH Rear Red Reflector

520001740

$4.99

450

RH Rear Red Reflector

520002016

$4.99

1000

RH Front Reflector

520002343

$9.19

1010

LH Front Reflector

520002344

$11.49

1400

Tool Kit | Includes 1400 to 1400c

520001814

$27.99

1400a

Rope Starter

529017500

$1.17

3000b

Amber, Reflector

520000271

$19.99

3000c

White, Reflector

415037900

$22.99

3000d

Reflector Support | Included 3000d to 3000e

520001787

$209.99

3000e

Deep Black, Reflector Support

520000871

$5.79

3000f

Horn

549011291

$35.99

3000g

Pop Rivet 3/16"

293150103

$0.55
