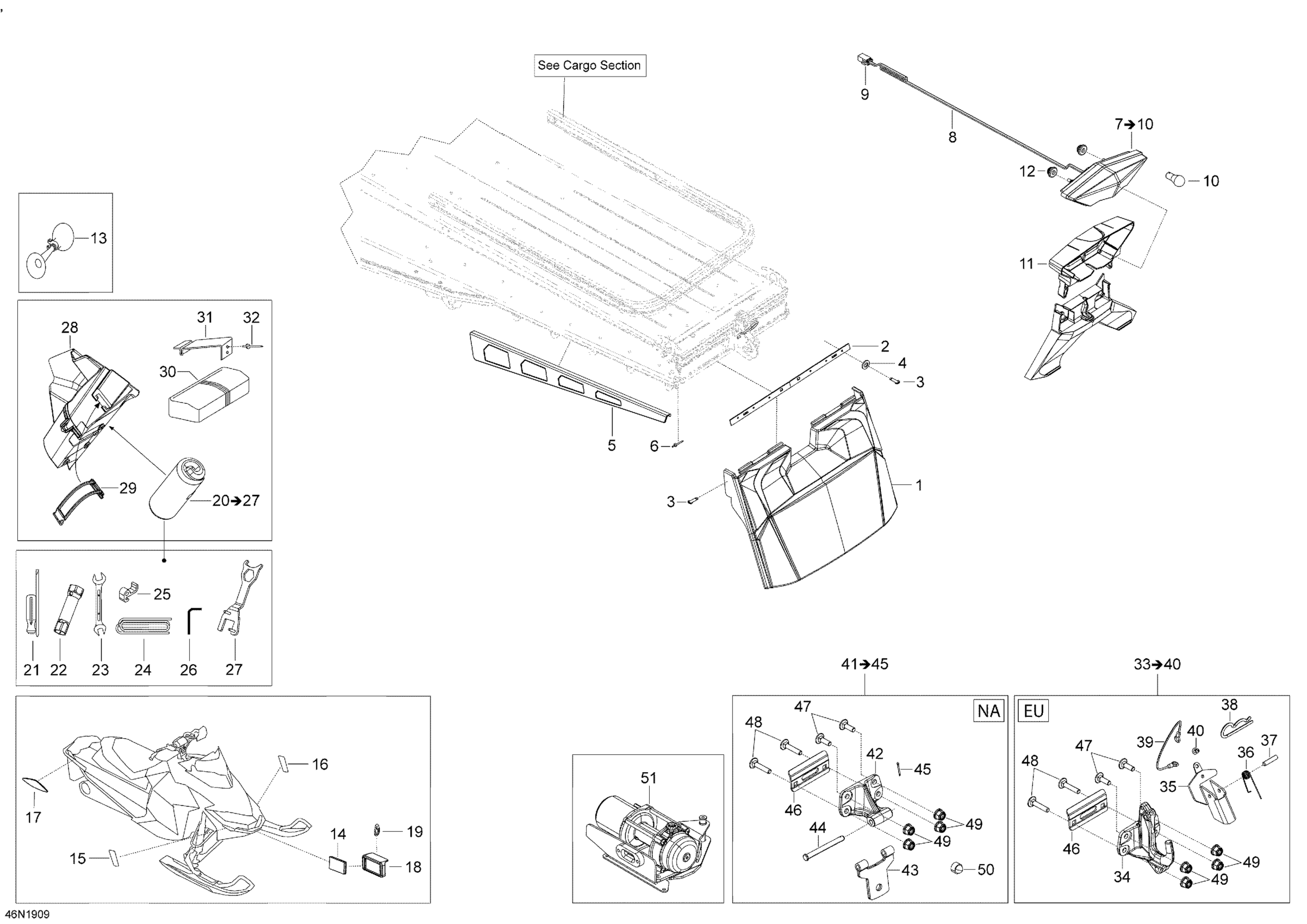

Ski-Doo EXPEDITION XTREME 800R E-TEC, 2019 Utilities - Europe Diagram

#

Description
Price

1

Black, Snow Guard Long

520001410

$109.99

2

Plate

520001021

$33.55

3

Forming Screw M5 x 16

250000676

$0.96

4

Washer M5

250200025

$0.70

5

RH Protector

520000693

$52.96

5

LH Protector

520000694

$52.96

6

Rivet Hucklok

293150163

$2.73

7

Rear Light | Includes 200 to 200a

520000848

$93.25

8.1

Wiring Harness Ass'y | Not Shown

520000677

$35.04

10

Bulb

520000758

$8.60

11

Rear Light Cover

511000764

$35.04

12

Stopper Rubber

705014429

$6.09

13

Horn

549011291

$34.30

14

Reflector (Bright)

21118

$26.09

15

Yellow, RH Reflector

520001600

$30.57

16

Yellow, LH Reflector

520001601

$30.57

17

Amber, Lateral Reflector

705002423

$12.88

18

Deep Black, Reflector Support

520000871

$5.13

19

TIE RAP - Call your local BRP dealership

27120

Unavailable

20

Tools Kit | Includes 1400 to 1400e

520001670

$49.99

30

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

31

Tool Kit Rack

5346728

Unavailable

32

Rivet

36108

$1.79

33

Hitch Ass'y | Includes 3600 to 3600f

520001774

$61.16

35

Locking Plate

520001775

Unavailable

37

Clevis Pin

520001810

Unavailable

38

Hair pin

41029

$4.15

40

Avex Rivet

390909100

$0.28

40.1

Washer

520001811

Unavailable

40.2

Cotter Pin

520001812

Unavailable

46

Plate

520000727

$32.81

47

Carriage Bolt, M8 X 25 | XXC

207782544

$1.51

48

Bolt Carriage M8 X 40

207784044

$1.06

49

Hex. Flange Elastic Nut M8

233281414

$1.31

60

Support Tape

520001766

Unavailable

70

Guide Ski-Doo Expedition Series EN | Not Shown

619900950

Unavailable
