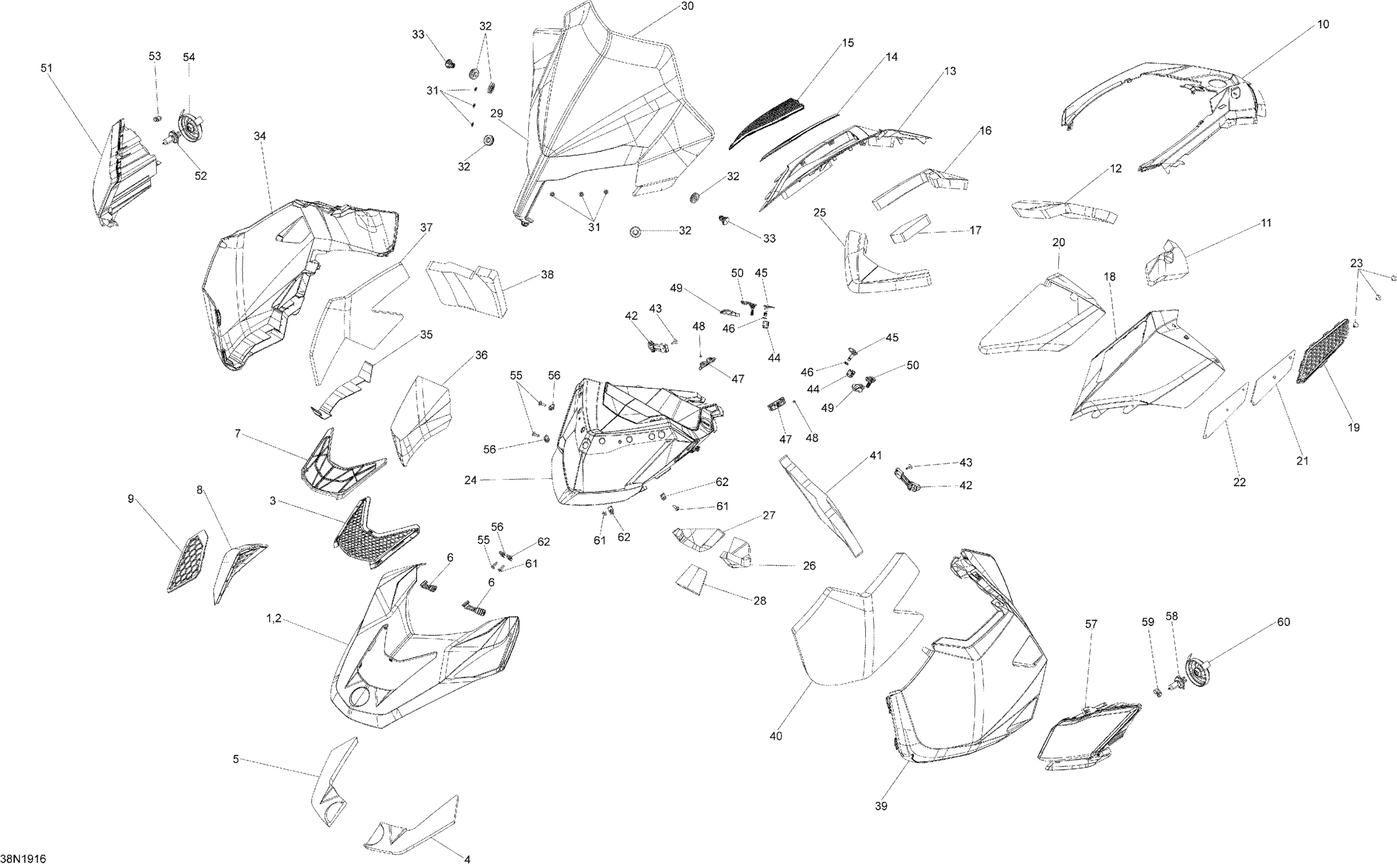

Ski-Doo EXPEDITION XTREME 800R E-TEC, 2019 Hood Diagram

#

Description
Price

1

Black Hood | Includes 1 to 2

517305818

$294.99

2

Black, Hood

517304812

$319.99

3

Hood Grille

517304843

$82.28

4

Insulator

517304330

$34.58

5

Insulator

517304214

$29.97

6

Latch Pannel

517304289

$9.91

7

Hood Grille With Mesh

517305553

$82.28

8

Intake Grille

517306981

$26.89

9

Intake Grille

517304584

$26.89

10

Black, Console

517304820

$170.74

11

Insulator

517305644

$36.12

12

Insulator

517304318

$49.20

13

Black, RH Side Access Panel | Includes 13 to 15

517304829

$249.20

14

RH Access Panel Grille

517304015

$33.82

15

RH Lower Acces Grille

517304016

$29.20

16

Insulator

517304311

$63.05

17

Insulator

517305987

$29.97

18

Black, LH Side Access Panel | Includes 18 to 19

517304839

$276.89

19

LH Access Panel Grille

517303893

$33.82

20

Insulator

517304313

$63.05

21

Insulator

517305311

$11.45

22

Grille plate

502007312

$29.20

23

Black, Dart

414644300

$0.78

24

Indicator Support

517304272

$169.20

25

Insulator

517304314

$63.82

26

Insulator

517304315

$29.97

27

Insulator

517304316

$29.97

28

Insulator

517304319

$29.97

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Windshield

517306055

Unavailable

30

Windshield Support

517304712

$33.05

31

Push Nut

732610072

$1.72

32

Grommet

517303756

$3.15

33

Button

517304744

$1.90

34

Black, RH Side Panel

517306970

$235.35

35

Aluminium Foil

517306504

$18.43

36

Aluminium Foil

517306505

$20.74

37

RH Foam

517303890

$54.58

38

RH Rear Foam

517304310

$62.28

39

LH Side Panel

517306975

$286.12

40

LH Foam

517303891

$53.05

41

LH Rear Foam

517304309

$62.28

42

Latch-Panel

517304572

$9.48

43

Pop Rivet 3/16”

293150108

$1.23

44

Handle Fastener Quarter-Turn

517304297

$14.62

45

Quarter-Turn Handle

517304296

$14.62

46

Locking Plate

517304538

$4.29

47

Side Panel Support | Except Package SWT

517304497

$18.43

48

Rivet | Except Package SWT

293150211

$2.05

49

End Piece Latch

517304075

$4.43

50

Latch-Panel

517306057

$19.47

51

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$139.97

52

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

53

Cap

515176498

$12.18

54

Rubber Cap Protector

219800280

$17.66

55

Torx Screw M6 X 20

250000722

$1.34

56

Panel Nut M6 X 1.0

250100198

$1.73

57

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$139.97

58

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

59

Cap

515176498

$12.18

60

Rubber Cap Protector

219800280

$17.66

61

Torx Screw M6 X 20

250000722

$1.34

62

Panel Nut M6 X 1.0

250100198

$1.73
