Description

Price

500

Spring Support Kit

861805547

$10.49

510

Spring Support Kit

861805547

$10.49

520

Socket Head Screw M8 X 25

205082544

$1.15

540

Hex. Flange Elastic Nut M8

233281414

$1.47

1000

Stopper Strap

503192360

$20.99

1010

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

1020

Flat Washer

224081301

$0.88

1030

Hex. Flange Elastic Nut M8

233281414

$1.47

1200

Rocker

503193464

$83.99

1220

Bushing | Includes 240d to 240d1

503189282

$4.34

1230

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

1240

Elastic Locking Nut M10 X 1.5

233601416

$1.69

1400

Front Arm Ass'y | Includes 1400 to 1400a

503193274

$222.49

1410

Lower Shaft

503191390

$28.99

1420

Bushing

503189324

$14.15

1430

Washer

503192496

$0.77

1440

Hex. Screw S.Grip M10 X 55

250000605

$8.11

1510

Upper Shaft

503191391

$36.99

1520

Bushing

503189324

$14.15

1530

Washer

503189564

$0.74

1540

Hex. Screw S.Grip M10 X 55

250000605

$8.11

1610

Axle Pivot

503191396

$80.49

1620

Bolt 369MM

503195156

$25.99

1630

Washer

503189157

$3.28

1640

Hex. Flange Elastic Nut M8

233281414

$1.47

1800a

Rear Arm

503194186

$319.99

1800c

LH Cam Adjuster

503191565

$16.49

1800d

RH Cam Adjuster

503191566

$16.49

1800e

E-Circlip

293370013

$0.65

1800g

Pivot Arm | Includes 3000j to 3000j3

503195154

$104.99

1800h

Lower Shaft

503192330

$45.99

1800j

Cushion

503191640

$5.93

1800k

Washer

503189276

$3.28

1800m

Socket Head Screw M12 X 35

205523554

$4.44

1800n

Grease Fitting

408200700

$3.49

1810

Cushion

503191451

$14.15

1820

Upper Shaft

503191405

$94.99

1840

Washer

503190328

$12.65

1860

Wheel 165 | Includes 3070 to 3070a

503190803

$51.99

1870

Retaining Ring

503194366

$39.99

1890

Washer

503192491

$4.54

1900

Socket Screw M12 X 35

250000484

$7.51

2000

RH Spring

503194340

$121.99

2010

LH Spring

503194341

$121.99

2100

Link Rod

503194153

$28.49

2110

Swivel Bushing

503191555

$7.83

2120

Axle Bar (Long)

503190643

$17.39

2125

Axle Bar (Long)

503190643

$17.39

2130

Hex. Screw M8 X 90

207089044

$3.48

2140

Washer

503189157

$3.28

2150

Hex. Flange Elastic Nut M8

233281414

$1.47

2500r

Grease Fitting

408200700

$3.49

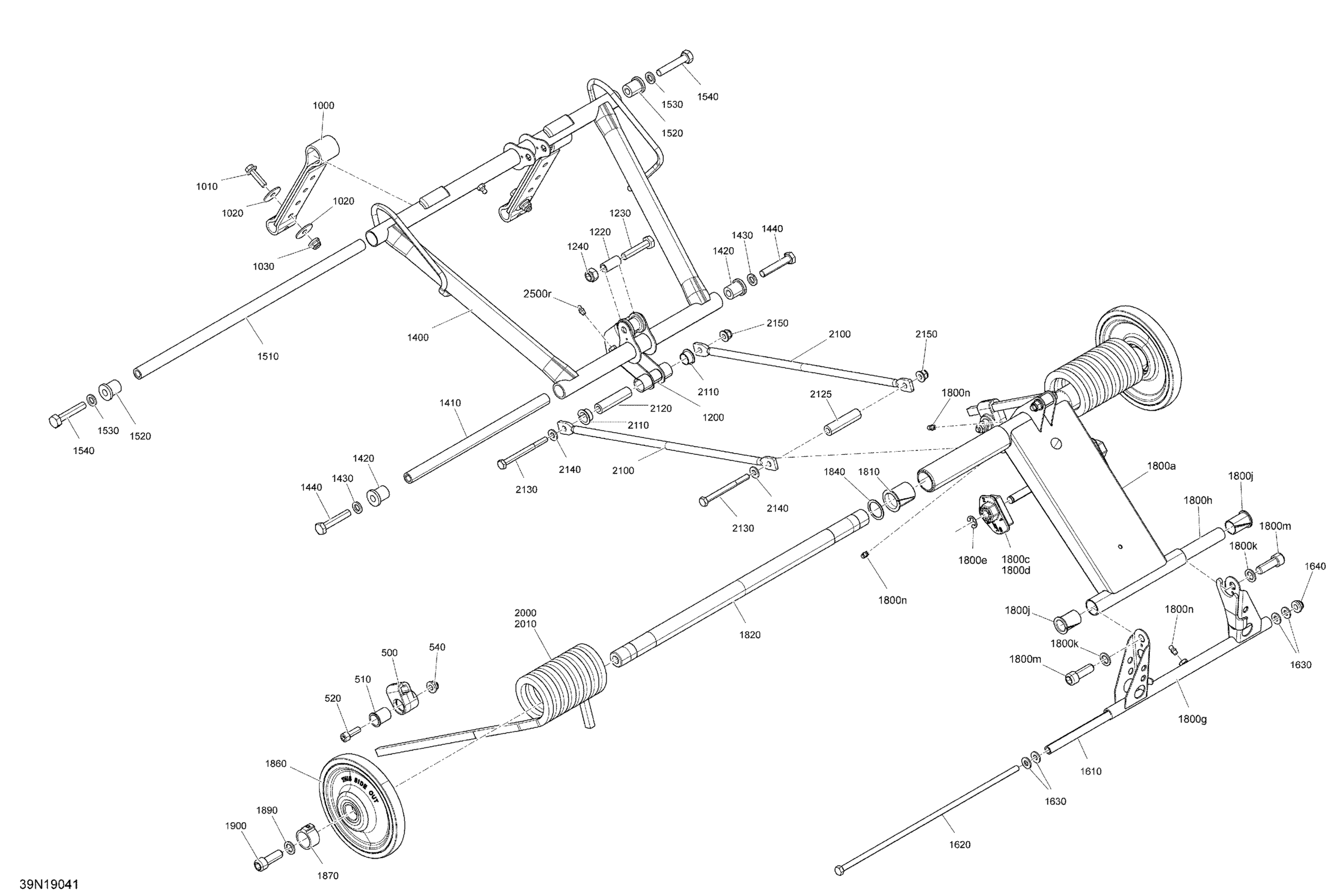

Ski-Doo 005 - EXPEDITION XTREME 800R E-TEC, 2019 08- Rear Suspensions - Upper Section Diagram

Spring Support Kit

Spring Support Kit

Socket Head Screw M8 X 25

Hex. Flange Elastic Nut M8

Stopper Strap

Hex. Flange Screw M8 X 30 | DS 650 X

Flat Washer

Hex. Flange Elastic Nut M8

Rocker

Bushing | Includes 240d to 240d1

Hex. Screw M10 X 1.5 X 50

Elastic Locking Nut M10 X 1.5

Front Arm Ass'y | Includes 1400 to 1400a

Lower Shaft

Bushing

Washer

Hex. Screw S.Grip M10 X 55

Upper Shaft

Bushing

Washer

Hex. Screw S.Grip M10 X 55

Axle Pivot

Bolt 369MM

Washer

Hex. Flange Elastic Nut M8

Rear Arm

LH Cam Adjuster

RH Cam Adjuster

E-Circlip

Pivot Arm | Includes 3000j to 3000j3

Lower Shaft

Cushion

Washer

Socket Head Screw M12 X 35

Grease Fitting

Cushion

Upper Shaft

Washer

Wheel 165 | Includes 3070 to 3070a

Retaining Ring

Washer

Socket Screw M12 X 35

RH Spring

LH Spring

Link Rod

Swivel Bushing

Axle Bar (Long)

Axle Bar (Long)

Hex. Screw M8 X 90

Washer

Hex. Flange Elastic Nut M8

Grease Fitting
