Description

Price

10

Black Runner | Includes 10 to 10a

503194351

$309.99

20

Black Slider, 154"

503192618

$34.99

30

Phillips Screw M6 X 25

208562531

$2.11

40

Elastic Stop Nut M6

232561414

$0.55

50

Plate

503192612

$14.49

60

Axle

503192643

$159.99

65

Hex. Flange Screw M8 X 35

250000986

$2.11

70

Washer

503189157

$3.28

80

Black, Wheel Ass'y, 100 mm

503192611

$33.99

80a

Ball Bearing | Package-STD

503190396

$14.30

90

RH Protector

503192610

$27.49

100

LH Protector

503192609

$27.49

110

Hex. Flange Screw M8 X 40

207684044

$1.48

120

Hex. Flange Elastic Nut M8

233281414

$1.47

200

Rubber Stopper

503190576

$12.99

210

Pop Rivet 3/16

293150224

$1.01

220

Washer

503191273

$1.35

230

Rubber Stopper

503191291

$19.99

240

Pop Rivet 3/16

293150224

$1.01

250

Washer

503191273

$1.35

300

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$48.49

300a

Ball Bearing | Package-STD

503190396

$14.30

300b

Retaining Ring

415129371

$12.01

310

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$48.49

310a

Ball Bearing | Package-STD

503190396

$14.30

310b

Retaining Ring

415129371

$12.01

320

Casted Support

503193894

$16.49

330

Hex. Flange Screw M6 X 70

207667056

$4.44

340

Wheel Cup M6

503191820

$4.99

350

Hex. Flange Elastic Nut M6

233261466

$2.00

360

Hex. Flange Screw M6 X 25

207662556

$4.44

380

Labyrinth Seal

503190434

$6.09

390

Black, Wheel Cap

503192771

$2.39

700

Tensioner

503192583

$8.29

710

Hex. Cap Screw M6 X 30

207063054

$6.39

720

Hex. Flange Elastic Nut M6

233261466

$2.00

730

Spacer

503193250

$16.49

740

Hex Screw M10 x 100

230100054

$6.45

750

Elastic Locking Nut M10

233601466

$2.11

1060

Axle Strap

503192623

$59.99

1070

Spacer

503192679

$11.49

1080

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

1090

Washer

503189564

$0.74

1300

Axle Strap

503191418

$54.99

1310

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

1320

Washer

503189564

$0.74

2430

Shaft

503193967

$139.99

2450

Washer

503189276

$3.28

2460

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

2470

Spacer

503191421

$45.99

2480

Washer

503189273

$3.28

2500

Pivot Support Ass'y, Long Black

503194354

Unavailable

2500a

Black, RH Pivot Support Long

503195759

$88.99

2500b

Black, LH Pivot Support Long

503195760

$88.99

2500c

Welded Pivot | Includes 100c to 100c3

503191414

$94.99

2500d

Hex. Flange Screw M8 X 25

207682534

$2.11

2500e

Hex. Elastic Stop Nut M8

232581414

$0.56

2500f

Cam Axle

503191711

$28.99

2500g

RH Spring Cam

503191190

$15.29

2500h

LH Spring Cam

503191668

$12.58

2500j

LH Block

503192426

$16.49

2500k

RH Block

503192427

$16.49

2500n

Block Guide

503189488

$39.99

2500p

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

2500q

Washer | 7415/7416. 7417/7418.

503189148

$2.85

2500r

Grease Fitting

408200700

$3.49

2500s

Spacer

503191713

$12.99

2500t

Rode

503192437

$6.19

2500u

Flat Washer M5

234051410

$0.53

2500v

Handle

503192438

$4.99

2500x

Torx Screw M5 X 14

250000742

$1.47

2500y

Circlip

293370068

$0.98

2500z

Compression Spring

503192436

$38.99

2600

Rear Axle

503191408

$65.99

2610

Spacer

503196316

$28.99

2630

Rear Wheel Spacer

503190428

$8.14

2640

Black, Wheel Ass'y, 165 mm | Includes 670 to 670b

503192140

$51.99

2640a

Ball Bearing | Package-STD

503190396

$14.30

2640b

Retaining Ring

415129371

$12.01

2650

Labyrinth Seal

503190682

$6.19

2660

Labyrinth Seal

503190434

$6.09

2670

Deep Black, Wheel Ass'y, 165 mm | Includes 600 to 600b

503192128

$51.99

2670a

Ball Bearing | Package-STD

503190396

$14.30

2670b

Retaining Ring

415129371

$12.01

2680

Washer

503190439

$5.93

2690

Hex Screw With Nilon Patch, M10 X 35

250000817

$4.44

2700

Black, Wheel Cap

503192771

$2.39

2810

Lower Shaft

503191390

$28.99

2820

Bushing

503189324

$14.15

2830

Washer

503192496

$0.77

2840

Hex. Screw S.Grip M10 X 55

250000605

$8.11

2890

Spring

503194624

$30.49

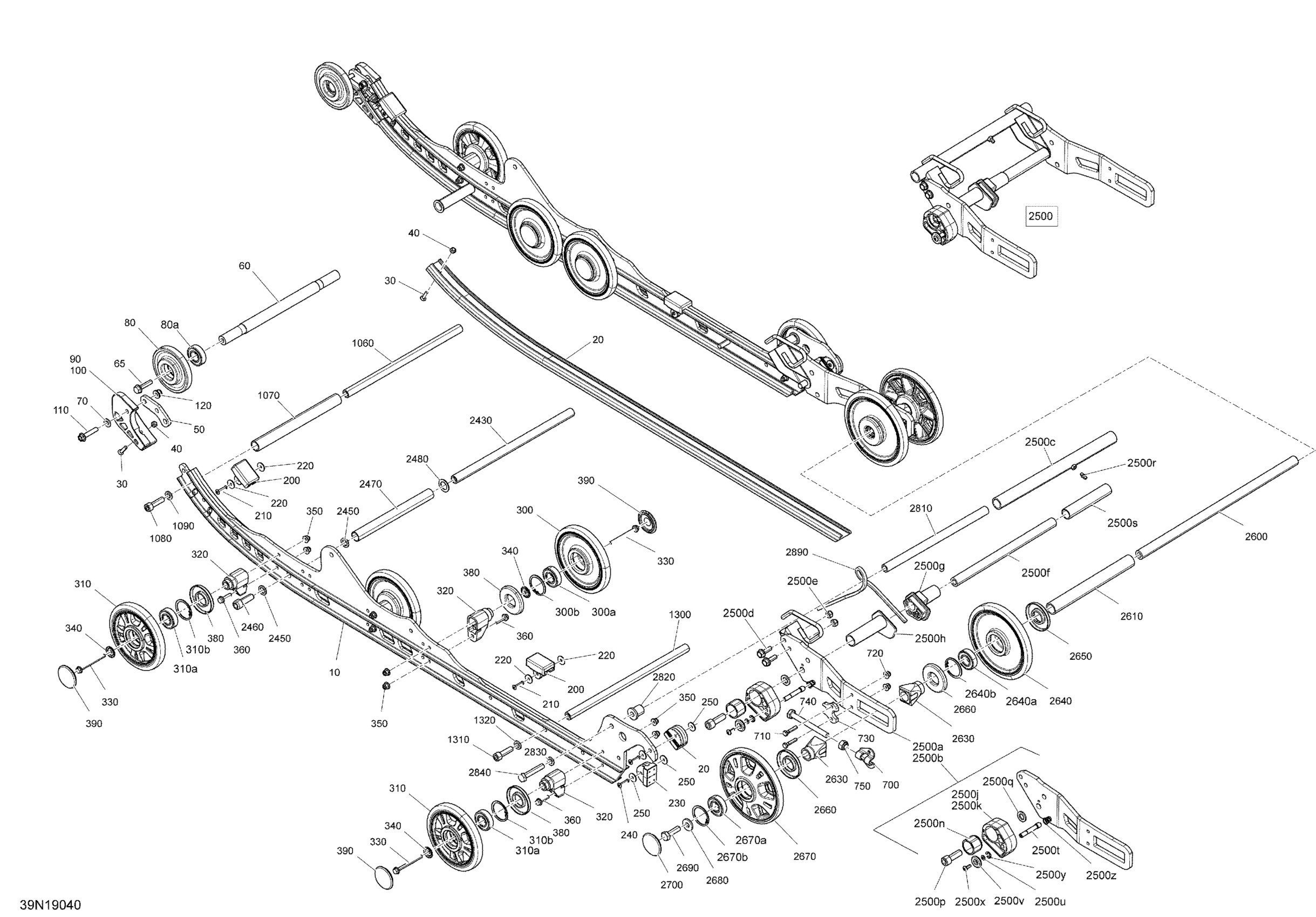

Ski-Doo 005 - EXPEDITION XTREME 800R E-TEC, 2019 08- Rear Suspensions - Lower Section Diagram

Black Runner | Includes 10 to 10a

Black Slider, 154"

Phillips Screw M6 X 25

Elastic Stop Nut M6

Plate

Axle

Hex. Flange Screw M8 X 35

Washer

Black, Wheel Ass'y, 100 mm

Ball Bearing | Package-STD

RH Protector

LH Protector

Hex. Flange Screw M8 X 40

Hex. Flange Elastic Nut M8

Rubber Stopper

Pop Rivet 3/16

Washer

Rubber Stopper

Pop Rivet 3/16

Washer

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

Ball Bearing | Package-STD

Retaining Ring

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

Ball Bearing | Package-STD

Retaining Ring

Casted Support

Hex. Flange Screw M6 X 70

Wheel Cup M6

Hex. Flange Elastic Nut M6

Hex. Flange Screw M6 X 25

Labyrinth Seal

Black, Wheel Cap

Tensioner

Hex. Cap Screw M6 X 30

Hex. Flange Elastic Nut M6

Spacer

Hex Screw M10 x 100

Elastic Locking Nut M10

Axle Strap

Spacer

Socket Head Screw M10 X 35, Scotch Grip

Washer

Axle Strap

Socket Head Screw M10 X 35, Scotch Grip

Washer

Shaft

Washer

Socket Head Screw M12 X 35, Scotch Grip

Spacer

Washer

Pivot Support Ass'y, Long Black

Black, RH Pivot Support Long

Black, LH Pivot Support Long

Welded Pivot | Includes 100c to 100c3

Hex. Flange Screw M8 X 25

Hex. Elastic Stop Nut M8

Cam Axle

RH Spring Cam

LH Spring Cam

LH Block

RH Block

Block Guide

Socket Head Screw M12 X 35, Scotch Grip

Washer | 7415/7416. 7417/7418.

Grease Fitting

Spacer

Rode

Flat Washer M5

Handle

Torx Screw M5 X 14

Circlip

Compression Spring

Rear Axle

Spacer

Rear Wheel Spacer

Black, Wheel Ass'y, 165 mm | Includes 670 to 670b

Ball Bearing | Package-STD

Retaining Ring
