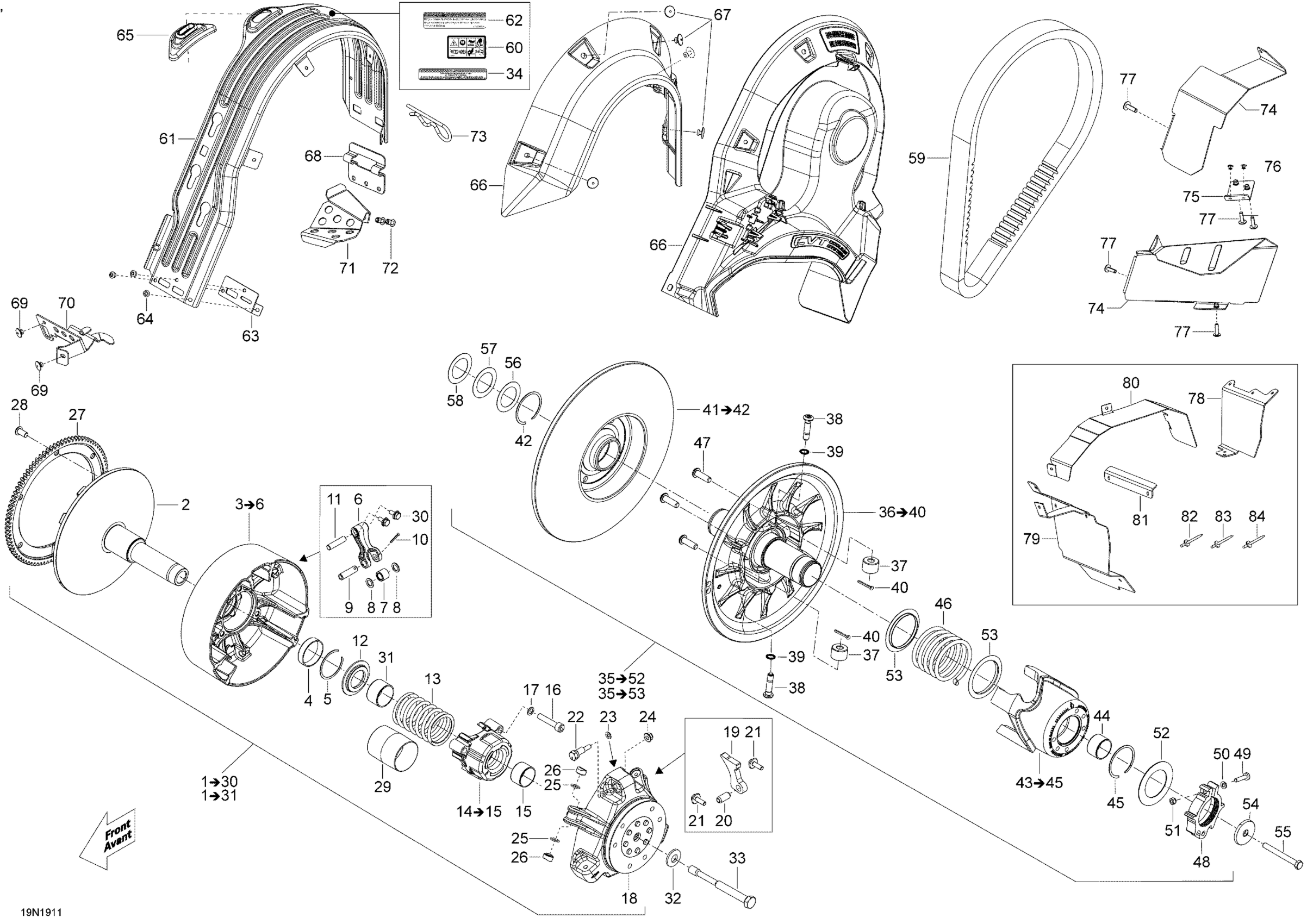

Ski-Doo EXPEDITION XTREME 800R E-TEC, 2019 Pulley - 800R E-TEC Diagram

#

Description
Price

2

Fixed Flange Ass'y

417223232

$378.43

3

Sliding Flange Ass'y | Includes 3 to 5

417223444

$332.28

4

Bushing

417223086

$33.82

5

Circlip

293370071

$3.86

6

Lever | Includes 10f to 10g

417222671

$32.28

7

Roller

417222947

$19.97

8

Stopper Washer

417004302

$15.99

9

Pin

417222594

$14.11

10

Cotter Pin

250400060

$1.60

11

Lever Axle

417223164

$4.25

12

Spring Seat

417222312

$8.28

13

SPRING YELLOW/GREEN - Call your local BRP dealership

414742100

Unavailable

14

Spring Cover Ass'y | Includes 14 to 15

417222759

$50.74

15

Bushing

417009204

$16.12

16

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

17

Lock Washer 8 mm

250200009

$2.06

18

Governor Cup Ass'y

417223666

$470.74

19

Ramp 413 | Europe

417222508

$32.28

19

Ramp 450 | North America

417224238

$32.28

20

Spring Pin M10 X 22

250400050

$2.38

21

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

22

Calibration Screw

417223501

$27.66

23

Washer

417005600

$3.86

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

25

O-Ring

732401030

$0.95

26

Slider Shoe

417223271

$8.59

27

Ring Gear_Starter This part replaces 417223739.

417225071

$223.05

28

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.37

29

Guard

417009205

$16.89

30

Serrated Hex. Flange Bolt M6

250000416

$4.12

31

Bushing

417223471

$5.92

32

Conical Spring Washer M14

250200144

$3.63

33

TRA 7 Bolt (M14 X 153.5 mm)

417300409

$43.82

34

Decal English

516005503

Unavailable

36

Fixed Flange Ass'y

417127433

$590.74

41

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$147.66

43

Cam Ass'y

417127411

$164.99

46

Black, Return Spring

417127039

$45.35

46.1

Swivel Abutment

417127116

$8.06

47

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61

48

Calibration Ass'y

415129604

$22.49

49

Socket Screw M5 X 25

205052544

$1.34

50

Flat Washer M5

234051410

$0.44

51

Elastic Stop Nut M5

232551414

$0.72

52

Washer

417127155

$8.03

54

Strength Washer

517302322

$11.09

55

Hex. Cap Screw M8 X 75

207287544

$4.24

56

Spacer

417300252

$5.17

57

Spacer

417300265

$2.12

58

Shim

504112000

$6.05

59

Drive Belt

417300531

$227.99

60

Warning Decal | Europe

516003919

$7.65

61

Belt Guard

417300357

$86.12

62

Security Label, Belt Guard

516006900

Unavailable

63

Reinforcement

417300380

$5.17

64

Avex Rivet

390909200

$0.29

65

Guide

417300381

$9.23

66

CVT Air Duct

417300441

$26.89

67

Pop Rivet 3/16"

293150103

$0.54

67

Pop Rivet 3/16"

293150103

$0.54

78

Air Duct Extreme CVT | North America

417300518

Unavailable

79

Air Duct Extreme CVT | North America

417300527

$16.89

80

Air Duct Extreme CVT | North America

417300520

$10.45

81

Air Duct Extreme CVT | North America

417300521

Unavailable

82

Avex Rivet

390909100

$0.29

83

Avex Rivet

390909200

$0.29

84

Pop Rivet 3/16"

293150103

$0.54

68

Belt Guard Bracket | Except Package SWT

417300363

$12.20

69

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

70

Belt Guard Bracket

417300364

$28.43

71

Brake Hose Cover | Except Package SWT

518325626

$28.43

72

Rivet Hucklok

293150163

$2.82

73

Hair Pin

114045200

$10.69

74

Air Duct | Includes 550 to 550a

417300461

$74.58

74.1

Clinch Nut M6 Hexsert

605636003

$4.12

75

Air Duct Bracket

417300497

Unavailable

76

Rivet 3/16"

293150102

$0.71

77

Torx Screw M6 X 20

250000722

$1.34

77

Hemlock Rivet, 6.5 mm

293150096

$3.17

89

Elastic Stop Nut M6

232561414

$1.55
