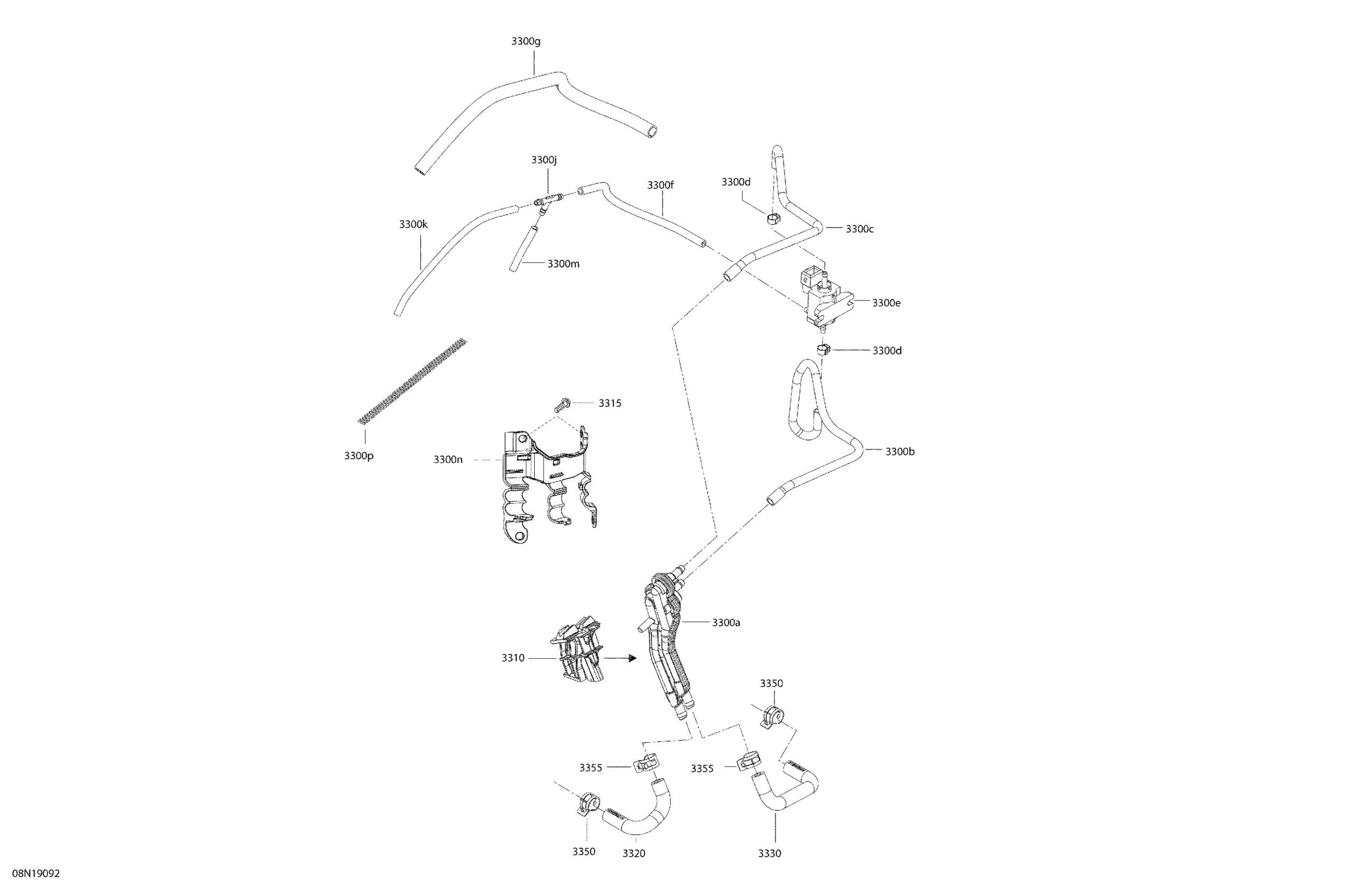

Ski-Doo 005 - EXPEDITION XTREME 800R E-TEC, 2019 01- Engine Manifold - 800R E-TEC Diagram

Description

Price

3300a

Manifold

512060692

$45.99

3300b

Polyurethane Hose 10000Mm Long

219704410

$56.99

3300c

Polyurethane Hose 10000Mm Long

219704410

$56.99

3300d

Crimp Clamp

293650234

$5.39

3300e

Solenoid Valve

270600005

$116.49

3300f

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

3300g

Was 409901700 Tubing (9 mm)

219704399

$84.99

3300j

T-Fitting

293710068

$8.29

3300k

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

3300m

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

3300n

Hose Support

512060827

$2.11

3300p

Spring | Not Shown

512060934

$83.49

3310

Manifold Support

512060822

$11.60

3315

Screw-Forming HEX.HD.FL.BZN

250000937

$2.11

3320

LH Formed Hose

512060695

$8.29

3330

RH Formed Hose

512060694

$8.29

3350

Norma Spring Clamp

293650214

$15.89

3355

Crimp Clamp, 15.3-706R

293650047

$3.29
