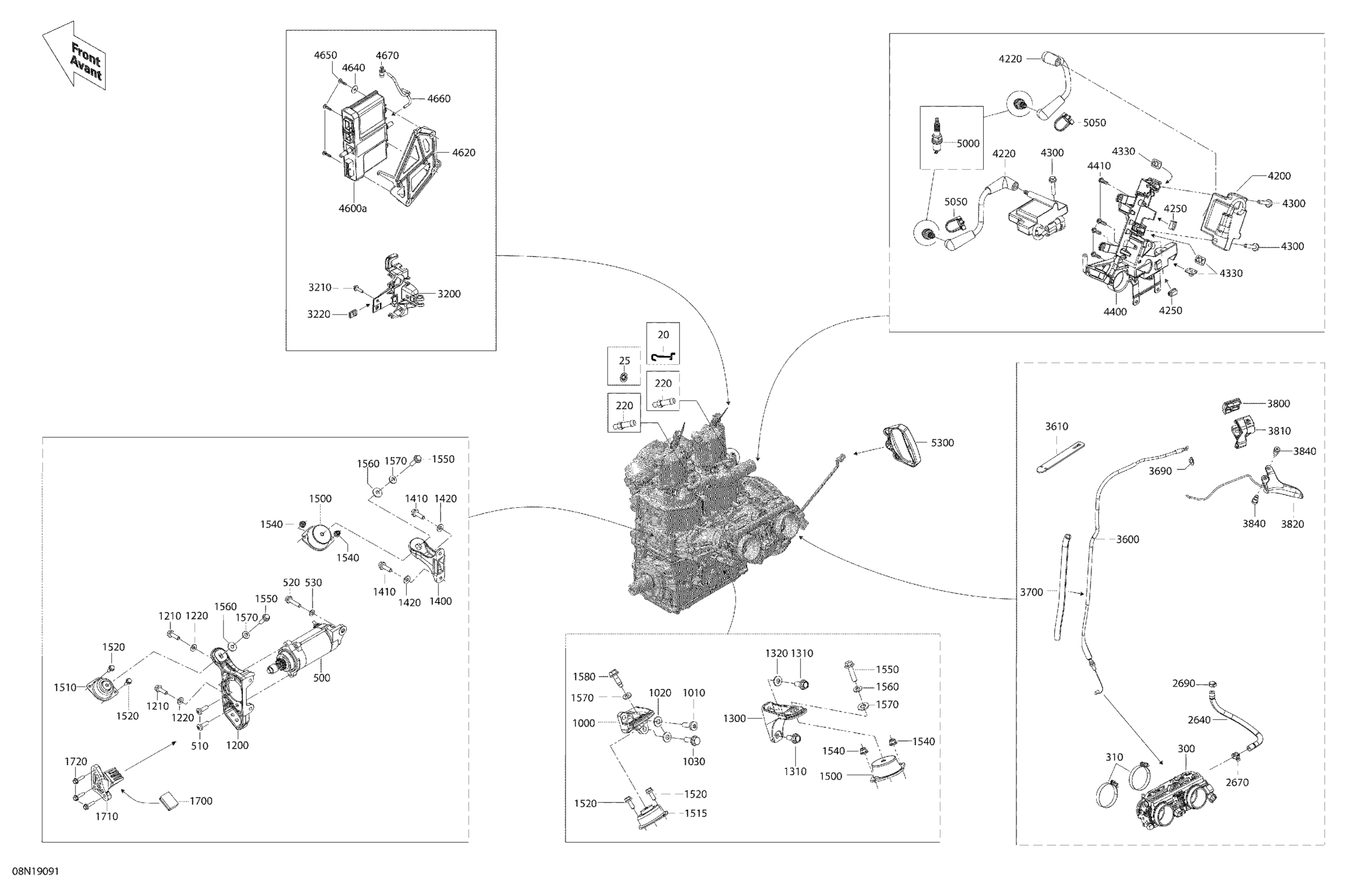

Ski-Doo EXPEDITION XTREME 800R E-TEC, 2019 Engine - 800R E-TEC Diagram

#

Description
Price

20

Locker

515177770

$2.21

25

Push Nut

732610072

$2.19

220

Hose Nipple

420924724

$14.83

300

Throttle Body

420889202

$1.00

310

Gemi Clamp

512060943

$10.33

500

Starter

515178473

$319.49

510

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

520

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.44

530

Flat Washer With Teflon 8 mm

250200008

$3.80

1000

Rear Support, PTO

512060478

$31.99

1010

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

1020

Conical Spring Washer M8

250200146

$1.01

1030

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

1200

Front Support, PTO

512060714

$90.99

1210

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

1220

Conical Spring Washer M8

234281474

$1.48

1300

Rear Support, MAG

512060559

$31.99

1310

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

1320

Conical Spring Washer M8

234281474

$1.48

1400

Front Support, MAG

512060469

$31.99

1410

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

1420

Conical Spring Washer M8

234281474

$1.48

1500

Rubber Mount

512060729

$65.99

1510

Rubber Mount

512060387

$46.99

1515

Rubber Mount

512060448

$51.99

1520

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

1540

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1550

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

1560

Yellow, Washer

503183200

$3.19

1570

Conical Spring Washer M8

234281474

$1.48

1580

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.11

1700

Stopper

512060766

$10.33

1710

Stopper Support

512060576

$29.49

1720

Hex. Flange Screw M6 X 25

207562544

$1.69

2640

Bleeder's Collector Outlet Hose

512060944

$28.99

2670

Tridon Gear Clamp

293650172

$3.09

2690

Oetiker Clamp

293650046

$2.89

3200

Solenoid Support

512060298

$14.22

3210

Hex.Flange Screw M5 X 20

207652044

$1.90

3220

Panel Nut M5 X 0.8

250000958

$4.23

3600

Throttle Cable

512060633

$110.99

3610

Rubber Strap

293850117

$7.79

3690

Circlip

414274500

$0.90

3700

Was 409901700 Tubing (9 mm)

219704399

$84.99

3800

Upper Housing

512060859

$8.89

3810

Lower Housing

512060860

$17.53

3820

Handle Ass'y

512061250

$124.99

3840

Flange Screw

732601143

$4.12

4200

Ignition Coil

512060953

$132.49

4220

Ignition Cable, 177mm long

512061126

$28.49

4250

Clip

710000992

$4.29

4300

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.22

4330

Nut Welded, M6

293100003

$9.12

4400

Ignition Coils Support

512060888

$11.60

4410

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

4600a

Calibrated Module

512060756

$749.99

4620

Calibrated Module Support

512060858

$14.22

4640

Flat Washer

250200040

$1.90

4650

Torx Screw Truss Head K50X20 T20

250000760

$2.11

4660

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

4670

Male Connector

414814100

$2.22

5000

Spark Plug NGK PFR7AB | 800-TEC This part replaces 512060553.

415129484

$30.49

5050

Clamp

512060993

$5.39

5300

Starter Grip

512060136

$14.83
