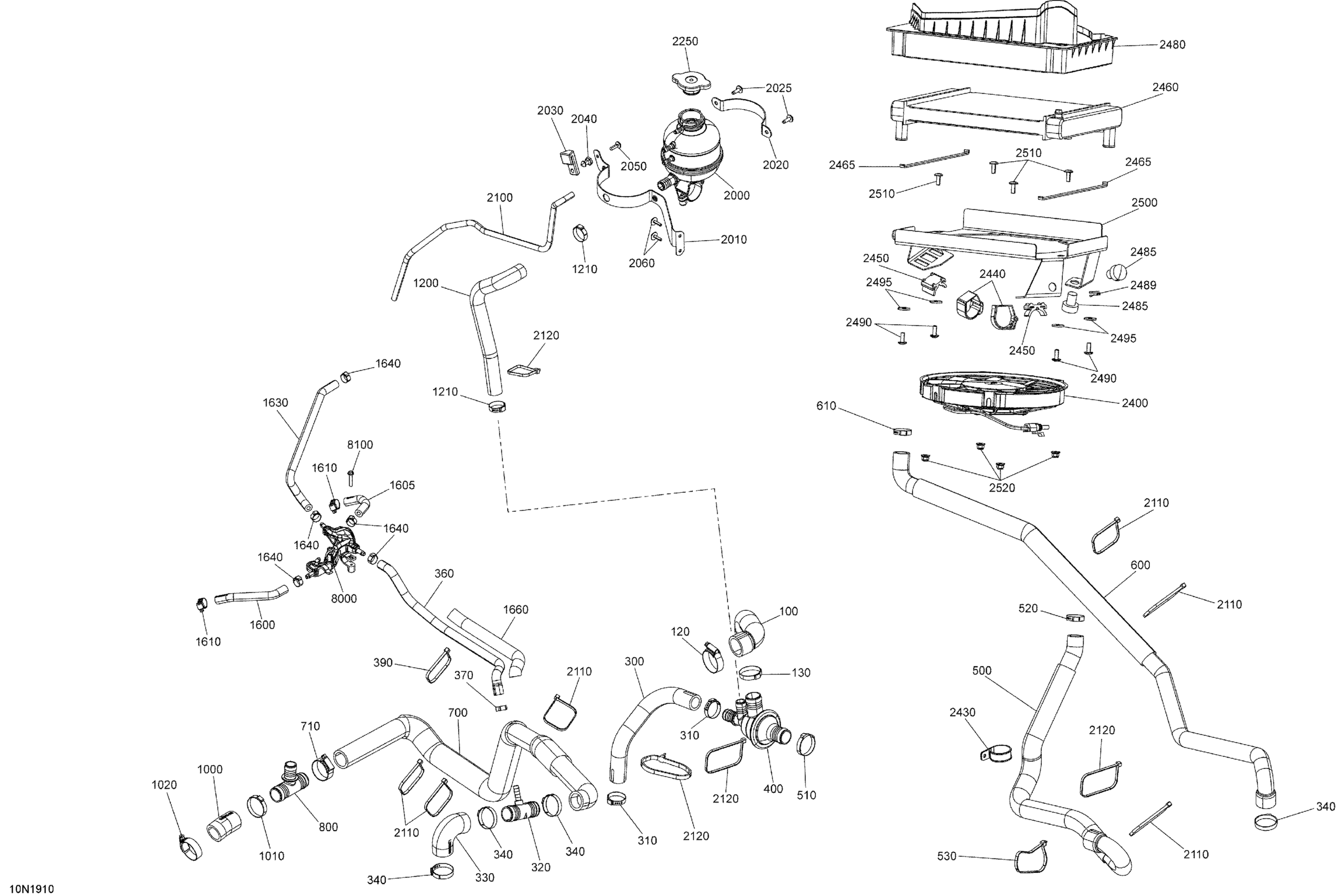

Ski-Doo EXPEDITION XTREME 800R E-TEC, 2019 Cooling - 800R E-TEC Diagram

#

Description
Price

100

Engine Outlet Hose

509000595

$16.33

120

Aba Gear Clamp, 26-38 MM

509000443

$12.72

130

Oetiker Gear Clamp

509000181

$4.44

300

Bypass Hose

509000523

$62.49

310

Crimp Clamp

293650099

$4.29

320

T-Fitting

509000510

$13.16

330

Radiator Hose This part replaces 509000671.

509001066

$20.99

340

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

345

Oetiker Gear Clamp

509000181

$4.44

360

Bleeder Hose

509000906

$24.49

370

Crimp Clamp, 15.3-706R

293650047

$3.29

390

Tie-Rap 180 mm

414115200

$0.11

400

Thermostat Housing

509000499

$42.99

500

Thermostat Outlet Hose

509000983

$100.49

510

Oetiker Gear Clamp

509000181

$4.44

520

Crimp Clamp

293650099

$4.29

530

Tie-Rap 180 mm

414115200

$0.11

600

Hose

509000994

$62.49

610

Crimp Clamp

293650099

$4.29

700

Radiator Hose

509000992

$46.49

710

Aba Gear Clamp, 26-38 MM

509000443

$12.72

800

T-Fitting

509000372

$10.33

1000

Engine Inlet Hose

509000997

$19.99

1010

Oetiker Gear Clamp

509000181

$4.44

1020

Aba Gear Clamp, 26-38 MM

509000443

$12.72

1200

Filling Hose

509000736

$35.99

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

1600

Bleeder Hose

509000818

$11.60

1605

Bleeder Hose

509000819

$11.60

1610

Tridon Gear Clamp

293650170

$1.99

1630

Hose

509000998

$11.60

1640

Oetiker Clamp

293650046

$2.89

1660

Tubing 16 Mm 1000Mm Long

219704408

$7.49

2000

Coolant Tank

509000421

$92.99

2010

Reservoir support

509000852

$67.99

2020

Support

509000608

$30.49

2025

Forming Screw M5 x 16

250000676

$1.01

2030

Support

509000609

$23.49

2040

Knob

517303439

$4.55

2050

Torx Screw K50 X 16

250000720

$1.69

2060

Screw M4 X 16

250000725

$3.49

2100

Hose 6 Mm 15000Mm Long

219704360

$132.49

2110

Tie Wrap 368 mm

293750008

$1.04

2120

Tie-Rap 180 mm

414115200

$0.11

2250

Radiator Pressure Cap

509000180

$20.49

2400

Cooling Fan

509000838

$217.49

2430

Clamp With Rubber

27011

Unavailable

2440

Velcro Strip

508000820

$8.59

2450

Bumper

508000822

$8.11

2460

Radiator

509000980

$222.49

2465

Rubber Strip

509000986

$4.44

2480

Deflector

509000985

$28.99

2485

Rubber Bumper

570044700

$13.10

2489

Clip

710000992

$4.29

2490

Torx Head Screw M6 X 16

250000717

$2.11

2495

Flat Washer

224061201

$1.37

2500

Support

509000984

$94.49

2510

Torx Head Screw M6 X 16

250000717

$2.11

2520

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8000

Bleed Collector

509000803

$24.99

8100

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44
