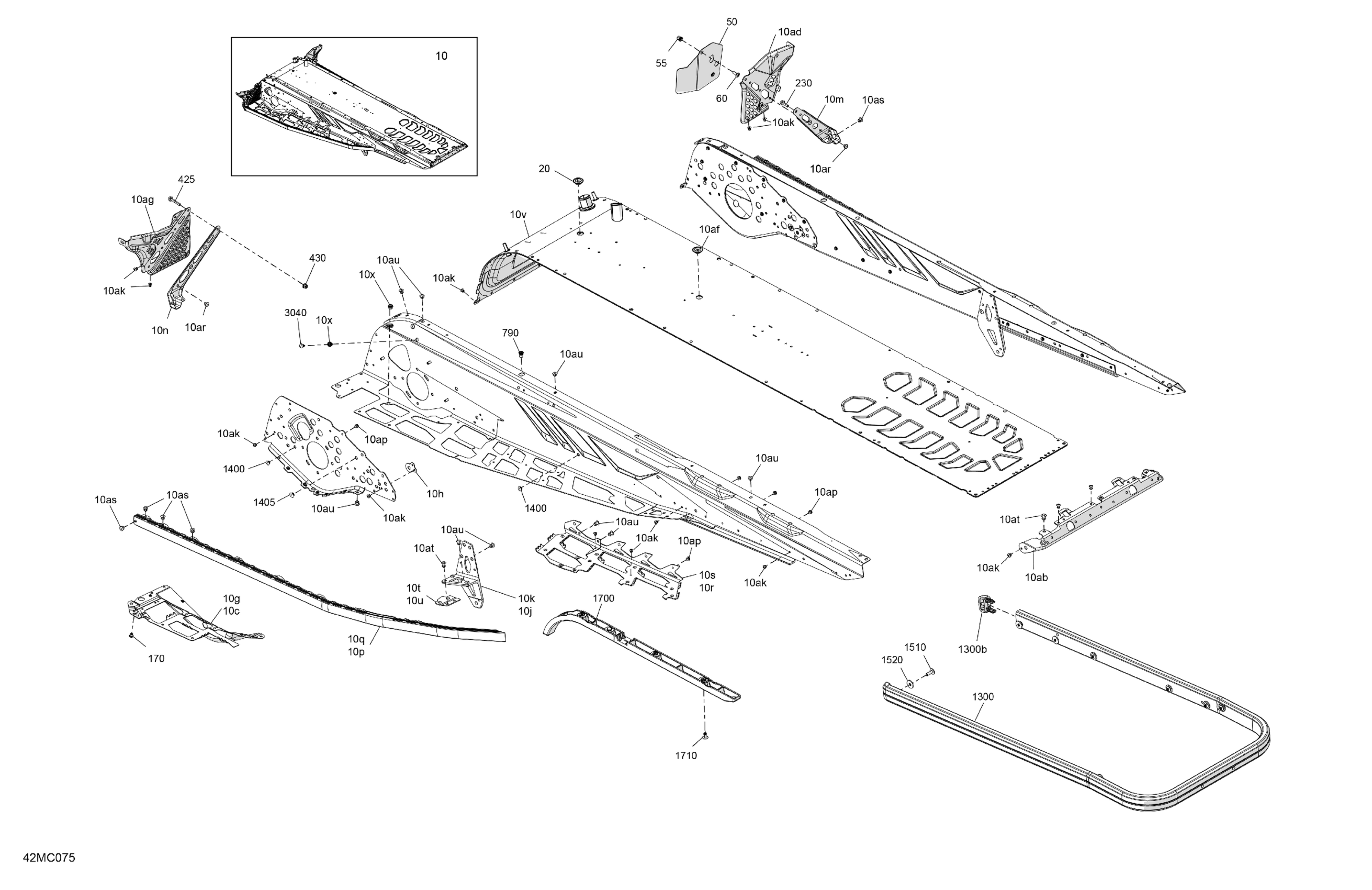

Ski-Doo EXPEDITION SPORT 900 ACE - (KDPA) - 2023 Frame - System - Rear Section Diagram

#

Description
Price

10

Chassis Tunnel Module 154 | Includes 10 to 10a39

415130857

$3,299.97

10c

RH Footrest Reinforcement

518332578

$81.51

10g

LH Footrest Reinforcement

518332577

$81.51

10h

Front Suspension Arm Reinforcement

518335959

$3.85

10j

RH Rear Suspension Support

518334407

$41.51

10k

LH Rear Suspension Support

518334406

$66.12

10m

Stirrup Reinforcement

518334507

$18.43

10n

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10p

RH Roller

518328451

$180.74

10q

LH Roller

518328452

$180.74

10r

RH Central Tunnel Reinforcement

518331564

$33.05

10s

LH Central Tunnel Reinforcement

518331565

$33.05

10t

LH Reinforcement Plate

518329088

$3.08

10u

RH Reinforcement Plate

518329089

$4.22

10v

Radiator Tunnel 154 Ass'y

518334491

$692.28

10x

Insert Half Hex Body M6 x 1.0

250100199

$2.54

10ab

Rear Cap

518328990

$20.74

10ad

RH Footrest

518334509

$20.74

10af

Black, Plug

293730052

$6.37

10ag

LH Foot Protector

518331559

$23.82

10ak

Rivet Avibulb 3/16

293150203

$0.29

10ap

Henrob Rivet

293150245

$1.65

10ar

Rivet Ornit 6,5 X 10.5

293150264

$1.94

10as

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10at

Rivet Ornit 6,5 X 16.5

293150267

$1.94

10au

Ornit Rivet 6,5 X 14.5

293150266

$1.94

20

Black, Plug

293730052

$6.37

50

Heat Shield

518331823

$7.42

55

Insert

293450275

$9.89

60

Torx Head Screw M6 X 16

250000717

$1.74

170

Insert M5 - 0.8

293450267

$4.22

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

790

Insert

293450278

$4.09

1300

Black, Hitch Bumper 154 | Includes 1300 to 1300b

860201250

$154.99

1300b

Bumper Cap

520001629

$0.95

1400

Full Moon Dart 8 mm

293730041

$2.12

1405

Full Moon Dart 10 mm

293730059

$4.42

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11

1700

Front Protector

518329982

$17.66

1710

Pop Rivet 3/16”

293150108

$1.23

3040

Dart

293730079

$1.92
