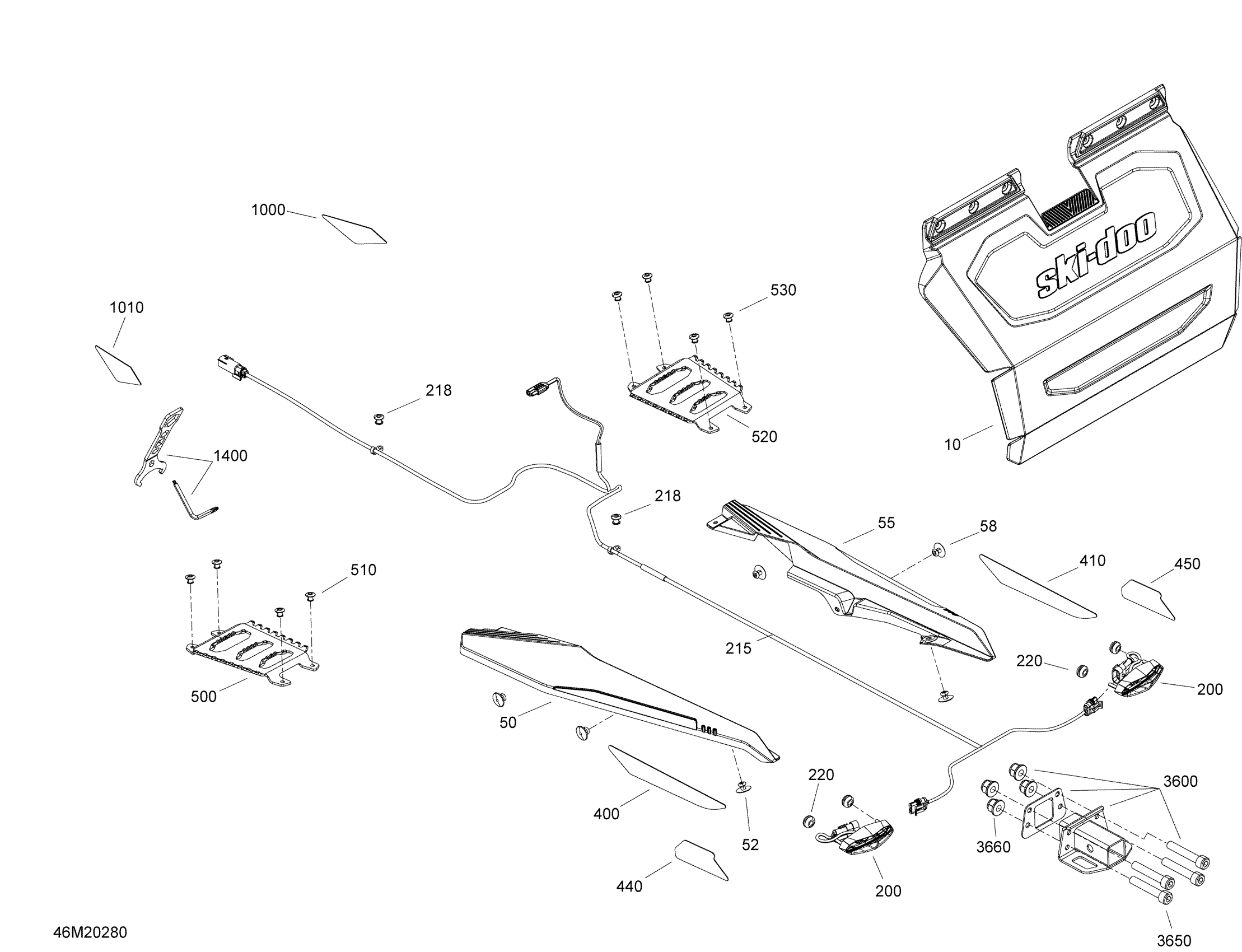

Ski-Doo EXPEDITION LE/SE 900 ACE - 2020 Utilities Diagram

#

Description
Price

10

Snow Guard

520001712

$109.99

50

LH Rear Guard

520001941

$13.36

52

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

55

RH Rear Guard

520001942

$13.36

58

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

200

Tail Light

520002636

$100.72

215

Taillight Wiring Harness

515178633

$57.43

218

Pop Rivet 3/16"

390402200

$0.30

220

Grommet

293720101

$0.70

400

Red, RH Rear Reflector

520001900

$16.39

410

Red, LH Rear Reflector

520001901

$16.39

440

LH Rear Red Reflector

520001740

$4.51

450

RH Rear Red Reflector

520002016

$4.51

500

Deep Black, Passenger Footrest

520002896

$44.75

510

Rivet 3/16"

293150102

$0.69

520

Deep Black, Passenger Footrest

520002896

$44.75

530

Rivet 3/16"

293150102

$0.69

1000

RH Front Reflector

520002343

$7.72

1010

LH Front Reflector

520002344

$9.67

1400

Tool Kit | Includes 1400 to 1400b

520001767

$51.99

3600

Trailer Hitch Kit | Includes 3600 to 3600d

860202062

$49.97

3650

Socket Head Screw M8 x 45

250001086

$11.18

3660

Hex. Elastic Flange Nut M8

233281416

$1.43
