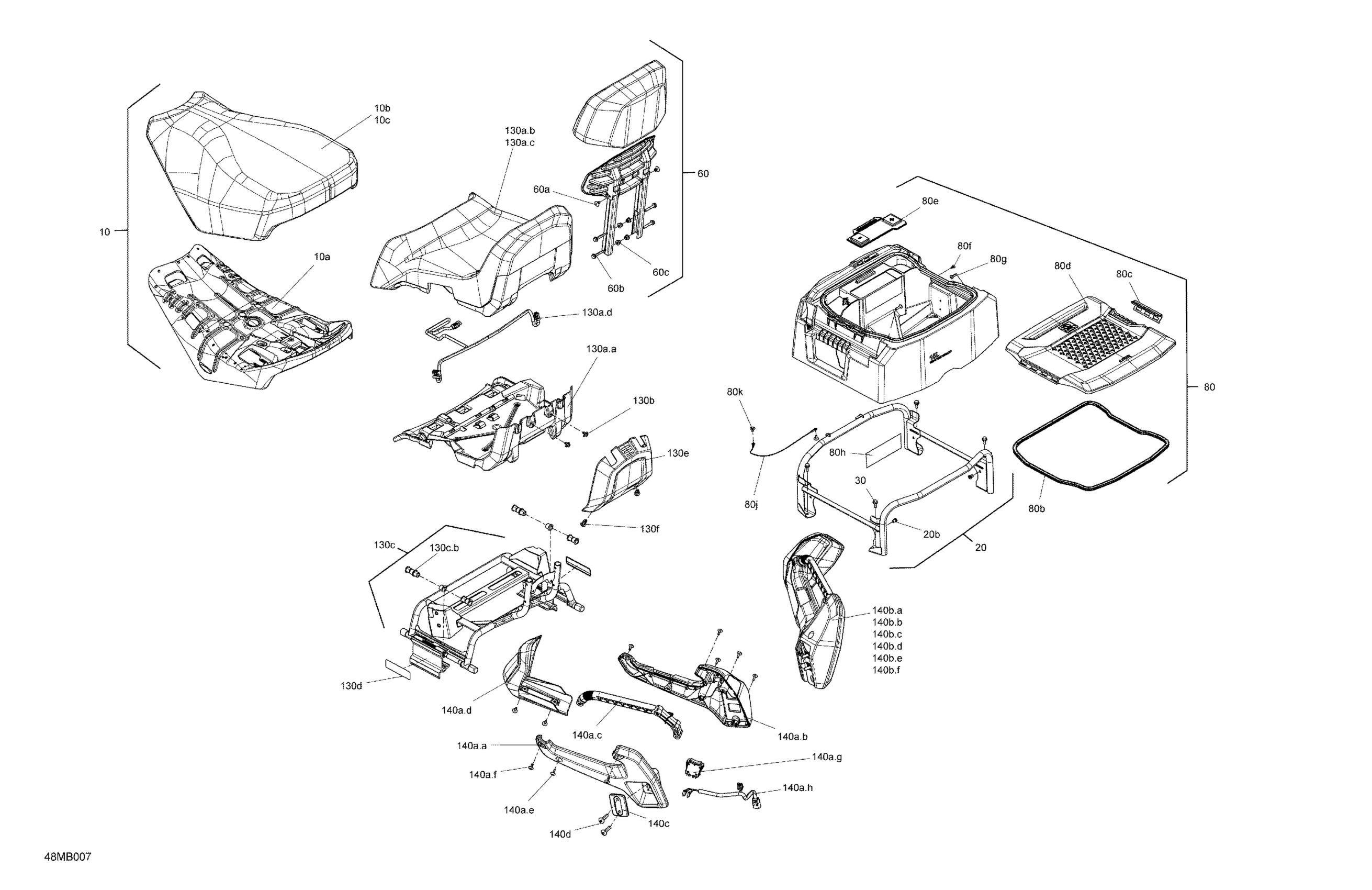

Ski-Doo EXPEDITION LE 900 ACE - 2022 Body - Seat Diagram

#

Description
Price

10

SEAT DRIVER ASSY - Call your local BRP dealership | Includes 10 to 10c

510007148

Unavailable

10a

Driver Seat Base

510007142

$66.39

10b

Driver Seat Foam

510006413

$339.99

10c

Driver Seat Cover

510006414

$209.99

20

Seat Support Ass'y | Includes 20 to 20b

510007010

$88.99

20b

Insert M5 X 0.8

293450268

$1.90

30

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

60

Passenger Backrest Ass'y | Includes 60 to 60c

860202036

$326.84

60a

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

60b

Hex. Flange Screw M6 X 35

207663544

$0.85

60c

Elastic Flange Nut M6 X 1.0

233261416

$2.00

80

Storage Box Ass'y | Includes 80 to 80m

510007165

$341.76

80b

Seal, 1PC = 3M

293830188

$36.54

80c

Latch

269502449

$3.99

80d

Box Cover

511001274

$36.54

80e

Access Cover

510006789

$7.58

80f

Torx-Truss Screw K40 X 10

250001034

$0.93

80g

Torx Screw M5 X 20

250000724

$1.60

80h

Warning Label

516009465

Unavailable

80j

Retaining Cable

293750092

$9.66

80k

Plastite Screw M4 X 10

250000805

$2.00

130a.a

Passenger Seat Base

510006410

$66.39

130a.b

Passenger Seat Foam

510006411

$339.99

130a.c

Passenger Seat Cover

510006412

$209.99

130a.d

Seat wiring Harness

515178588

$50.72

130b

Avdel Rivet

293150027

$2.30

130c

Passenger Chassis Module Ass'y | Includes 130c to 130c.b

510006817

$382.81

130c.b

Cushion

506152520

$12.00

130d

Warning Label

516009941

Unavailable

130e

Seat Trim

510006736

$11.84

130f

Tuflok Plastic Rivet

293150230

$1.39

140a.a

LH Ext. Passenger Hand Hold

510006492

$64.15

140a.b

LH Int. Passenger Hand Hold

510006527

$64.15

140a.c

Passenger Heated Handhold | Includes 140a3 to 140a3b

510006488

$97.73

140a.d

LH Passenger Handle Deflector

510006495

$26.84

140a.e

Screw M4 X 16

250000889

$2.82

140a.f

Torx-Truss M/S M5 X 14

250000941

$2.00

140a.g

Rocker Switch

515178505

$26.09

140a.h

Heated Grip Wiring Harness

515178464

$26.84

140b.a

RH Ext. Passenger Hand Hold

510006486

$64.15

140b.b

RH Int. Passenger Hand Hold

510006487

$64.15

140b.c

Passenger Heated Handhold | Includes 140a3 to 140a3b

510006488

$97.73

140b.d

RH Passenger Handle Deflector

510006489

$26.84

140b.e

Screw M4 X 16

250000889

$2.82

140b.f

Torx-Truss M/S M5 X 14

250000941

$2.00

140c

Passenger Handle Trim

510006602

$11.36

140d

Torx Truss M/S M8 x 35

250000753

$1.04
