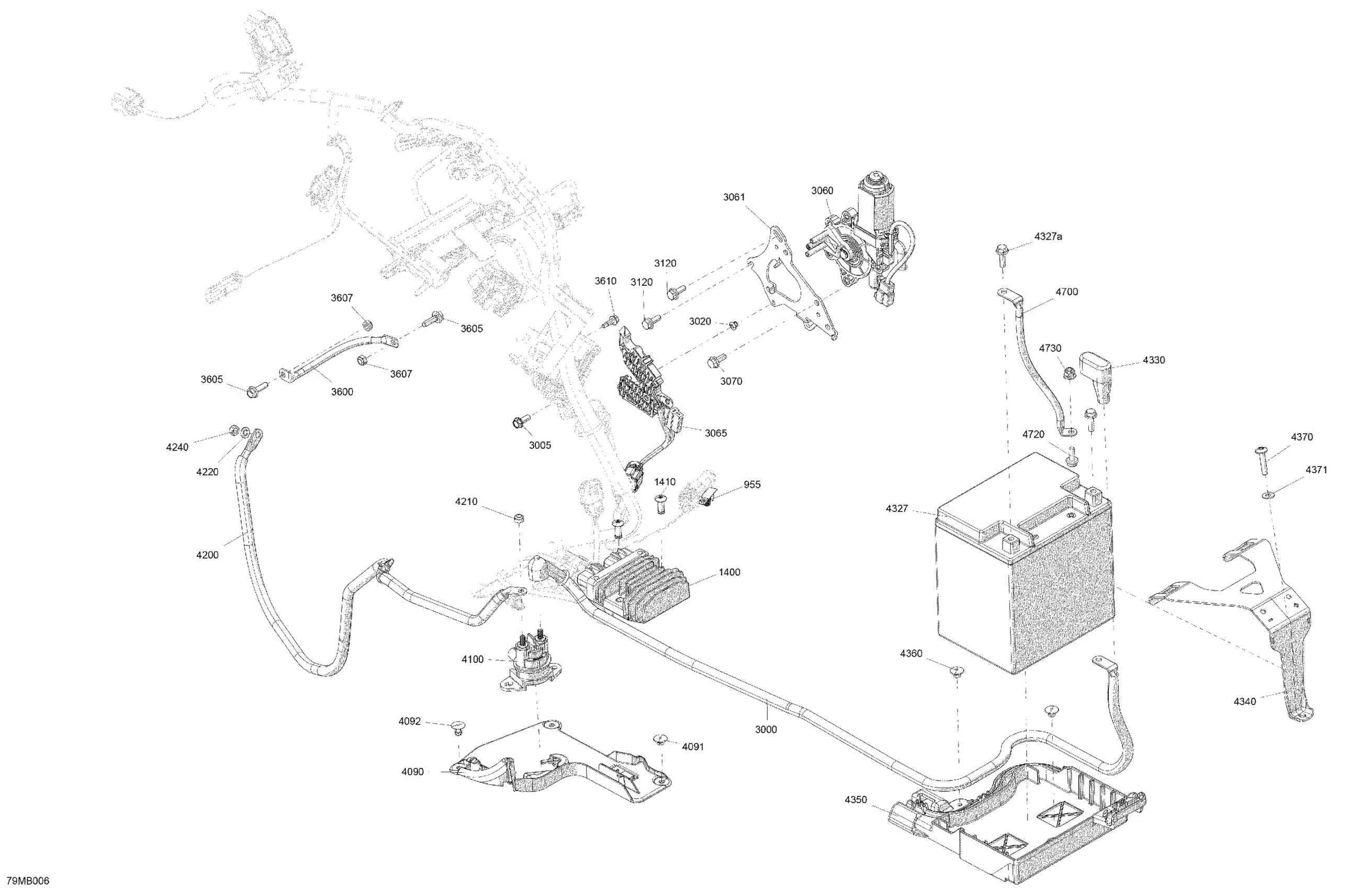

Ski-Doo EXPEDITION LE 900 ACE - 2022 Electric - Lower Section Diagram

#

Description
Price

955

Clip Connector

515178223

$1.87

1400

Voltage Regulator | Package-DPS, Model-Europe

710005569

$98.48

1410

Monobolt Rivet 6.4

293150182

$2.82

3000

Chassis Wiring Harness

515178729

$420.87

3005

Hex. Flange Screw M6 X 16

250001062

$1.39

3020

Pop Rivet 3/16"

390402200

$0.30

3060

Motor Ass'y

515180200

$169.37

3061

Stop Plate | Includes 3061 to 3061b

515178940

$14.90

3065

Reverse Wiring Harness

515178942

$85.79

3070

Hex. Flange Screw M6 X 16

207661644

$0.70

3120

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

3600

Ground Wire

515178338

$14.90

3605

Hex. Flange Screw M6 X 16

207661644

$0.70

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

3610

Hex. Flange Screw M5 X 16

250000911

$0.81

4090

Starter Relay Support

515178244

$3.27

4091

Pop Rivet 3/16"

293150103

$0.52

4092

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

4100

Starter Relay

278003012

$40.27

4200

Battery Wire

515178336

$43.25

4210

Elastic Stop Nut M6

232561434

$1.78

4220

Flat Washer 6 mm

234061410

$1.19

4240

Elastic Stop Nut M6

232561434

$1.78

4327

Battery | Includes 900 to 900a

515176151

$199.45

4327a

Battery Bolt Kit

515176081

$5.85

4330

Protector Cap | STD

710001817

$10.51

4340

Battery Strip

515178658

$29.07

4350

Battery Support Under

515178659

$13.43

4360

Pop Rivet 3/16"

293150103

$0.52

4370

Hex. Flange Screw M6 X 25

250000793

$2.00

4371

Flat Washer

224061121

$0.51

4700

Cable

515178564

$18.63

4720

Hex. Flange Screw M6 X 16

207661644

$0.70

4730

Elastic Flange Nut M6 X 1.0

233261416

$2.00
