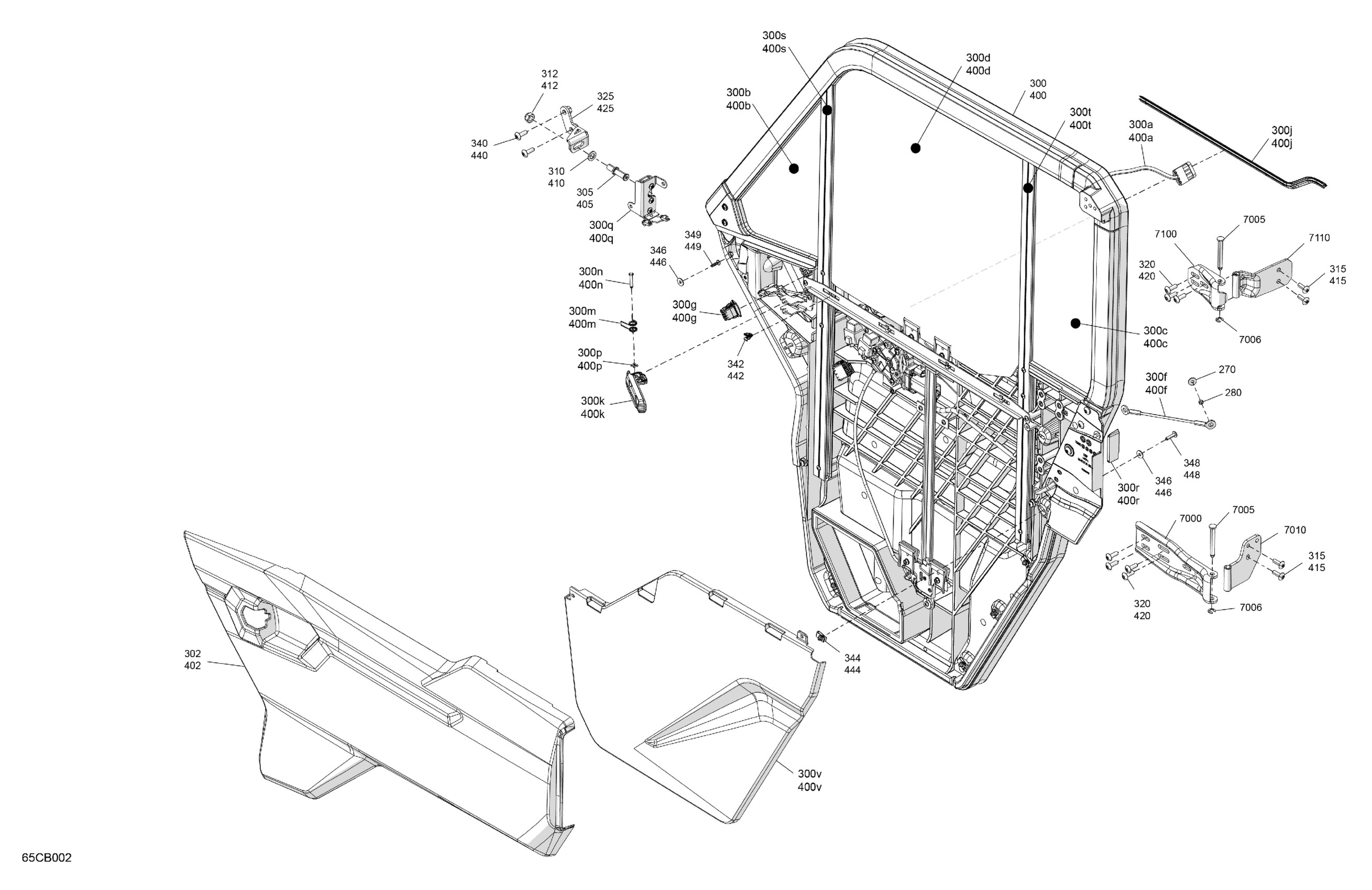

Can-Am Defender PRO HD10 - LTD CAB (9HNE-F-G-H) - 2022 Enclosure Cab - Doors Diagram

#

Description
Price

250

Door Limit Device Kit | 2nd version, 2 Holes

703500982

$21.99

270

Washer M6

250200029

$2.50

280

Bushing

708300737

$5.99

300

LH Front Rigid Door Ass'y | Includes 300 to 300ac

705801088

$2,909.99

300a

LH Door Wiring Harness

705800881

$239.99

300b

Front Door Window

705800863

$369.99

300c

Rear Door Window

705800864

$369.99

300d

Sliding Cab Window

705800865

$489.99

300f

Retaining Cable

705800896

$10.49

300g

Window Switch

710004979

$35.99

300h

Gasket

705800866

$239.99

300j

Gasket

705800867

$109.99

300k

Door Handle

705017152

$15.49

300m

Handle Spring

705013062

$14.99

300n

Handle Axle

705207440

$14.49

300p

External Retaining Ring

705601875

$4.09

300q

LH Latch

705800872

$409.99

300r

Trim

705800992

$99.99

300s

Front Window Guide Extrusion

705800722

$224.99

300t

Rear Window Guide Extrusion

705800723

$224.99

300u

LH Interior Door Panel

705800731

Unavailable

300v

LH Lower Door Panel

705800716

$239.99

302

Asphalt Grey, LH Upper Door Panel

705801421

$244.99

302

Oxford Blue Metallic, LH Upper Door Panel | Model Oxford Blue Metallic

705800810

$274.99

303

Gasket

705800963

$34.99

305

Rod_Latch

705800976

$13.99

310

Conical Spring Washer M12

250200005

$3.27

312

Elastic Stop Nut M12

232521416

$1.69

315

Torx Truss M8 X 25

250000874

$2.11

320

Torx Truss M8 X 25

250000874

$2.11

325

LH Front Striker Support

705801086

$44.99

340

Torx Truss M8 X 25

250000874

$2.11

342

Clip

517306478

$1.09

344

Panel Nut M6 X 1.0

250100198

$2.11

346

Stainless Steel Flat Washer

234062670

$2.11

348

Torx Truss Screw M6 X 25

250000807

$2.11

349

Torx Screw Truss Head K50X20 T20

250000760

$2.11

400

RH Front Rigid Door Ass'y | Includes 400 to 400ac

705801089

$2,739.99

400a

RH Door Wiring Harness

705800882

$254.99

400b

Front Door Window

705800863

$369.99

400c

Rear Door Window

705800864

$369.99

400d

Sliding Cab Window

705800865

$489.99

400f

Retaining Cable

705800896

$10.49

400g

Window Switch

710004979

$35.99

400h

Gasket

705800866

$239.99

400j

Gasket

705800867

$109.99

400k

Door Handle

705017152

$15.49

400m

Handle Spring

705013062

$14.99

400n

Handle Axle

705207440

$14.49

400p

External Retaining Ring

705601875

$4.09

400q

RH Latch

705800873

$409.99

400r

Trim

705800993

$99.99

400s

Front Window Guide Extrusion

705800722

$224.99

400t

Rear Window Guide Extrusion

705800723

$224.99

400u

RH Interior Door Panel

705800732

Unavailable

400v

RH Lower Door Panel

705800717

$239.99

402

Asphalt Gray, RH Upper Door Panel | Model Asphalt Grey

705800785

$274.99

402

Oxford Blue Metallic, RH Upper Door Panel | Model Oxford Blue Metallic

705800811

$274.99

403

Gasket

705800963

$34.99

405

Rod_Latch

705800976

$13.99

410

Conical Spring Washer M12

250200005

$3.27

412

Elastic Stop Nut M12

232521416

$1.69

415

Torx Truss M8 X 25

250000874

$2.11

420

Torx Truss M8 X 25

250000874

$2.11

425

RH Front Striker Support

705801097

$44.99

440

Torx Truss M8 X 25

250000874

$2.11

442

Clip

517306478

$1.09

444

Panel Nut M6 X 1.0

250100198

$2.11

446

Stainless Steel Flat Washer

234062670

$2.11

448

Torx Truss Screw M6 X 25

250000807

$2.11

449

Torx Screw Truss Head K50X20 T20

250000760

$2.11

7000

Door Hinge

705800751

$39.99

7005

Hinge Pin

705800781

$0.58

7006

Retaining Ring

293370125

$2.59

7010

Lower Hinge

705801025

$40.99

7100

Upper Door Hinge

705800752

$43.99

7110

Upper Door Hinge

705800755

$31.99
