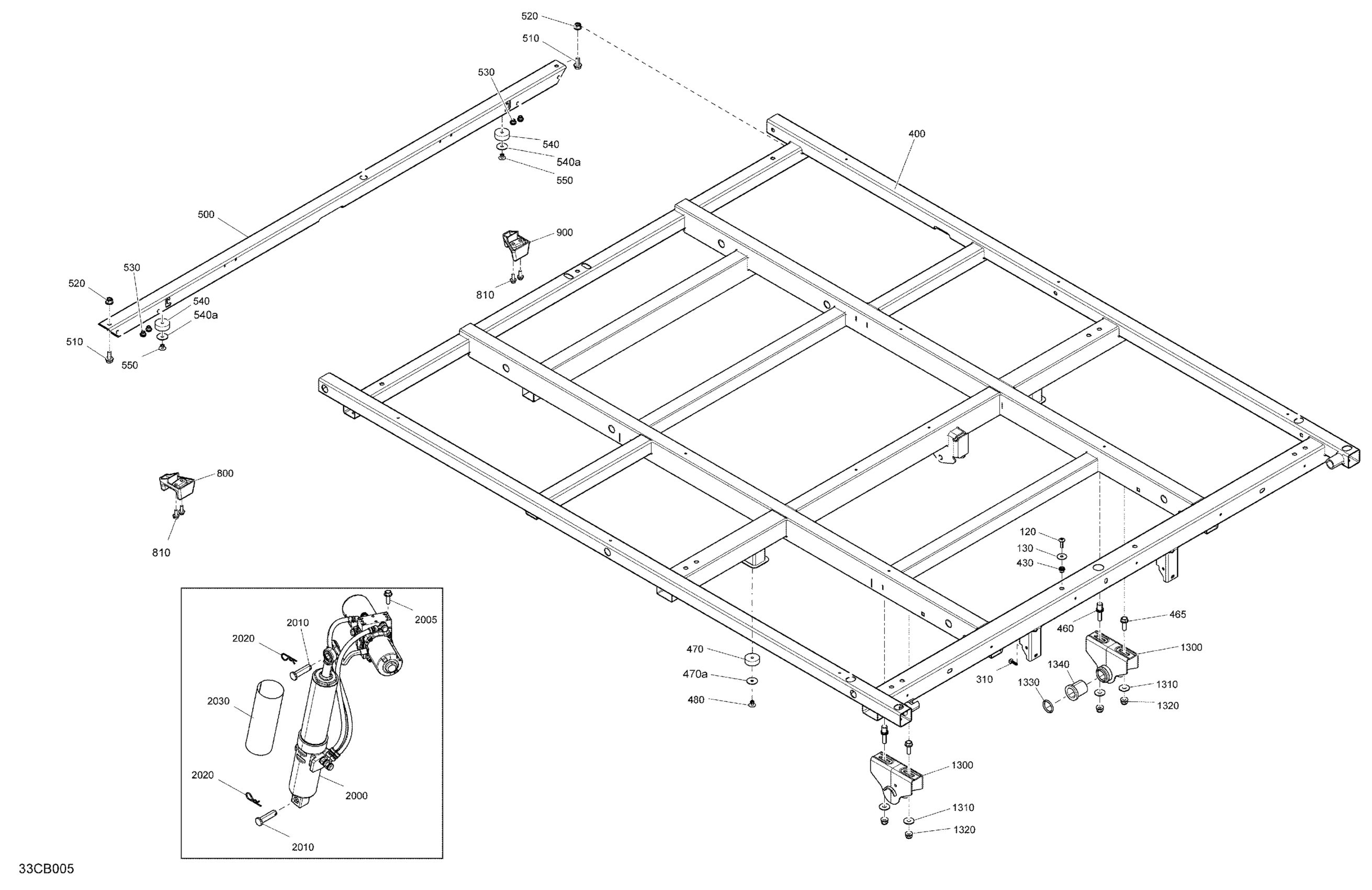

Can-Am Defender PRO HD10 - LTD CAB (9HNE-F-G-H) - 2022 Body - Cargo - Lower Section Diagram

Description

Price

120

Torx Screw M6 X 20

250000722

$1.34

130

Flat Washer M6.6 X 22

250200162

$1.91

310

Torx Screw Truss Head K50X20 T20

250000760

$1.74

400

Open Carrier Frame Kit

715008399

$524.58

430

Insert Half Hex Body M6 x 1.0

250100199

$2.54

460

Protruding Stud M8 X 28

250300645

$3.39

465

Hex. Flange Screw M8 X 25

207682544

$0.90

470

Rubber Stopper | Includes 830 to 830a

708303134

$2.31

470a

Washer

224060251

$0.57

480

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

500

Front Square Tube

708303709

$27.66

510

Hex. Flange Screw M8 X 20

207682046

$1.82

520

Hex. Elastic Flange Nut M8

233281416

$1.25

530

Insert Half Hex Body M6 x 1.0

250100199

$2.54

540

Rubber Stopper | Includes 830 to 830a

708303134

$2.31

540a

Washer

224060251

$0.57

550

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

800

LH Stopper

708303301

$3.98

810

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

900

RH Stopper

708303302

$3.98

1300

Female Hinge

708303342

$36.89

1310

Flat Washer 8 mm

234082410

$1.11

1320

Hex. Flange Elastic Nut M8

233281414

$1.14

1330

O-Ring

293300131

$5.52

1340

Hinge Bushing

708303361

$10.98

2000

Actuator Open Carrier Kit

715007096

$1,349.99

2005

Hex Flange Screw M6 X 16

250000906

$4.39

2010

Pin Clevis

250400096

$6.45

2020

Hair Pin

414575600

$1.51

2030

Heat Shield

707900889

$11.06
