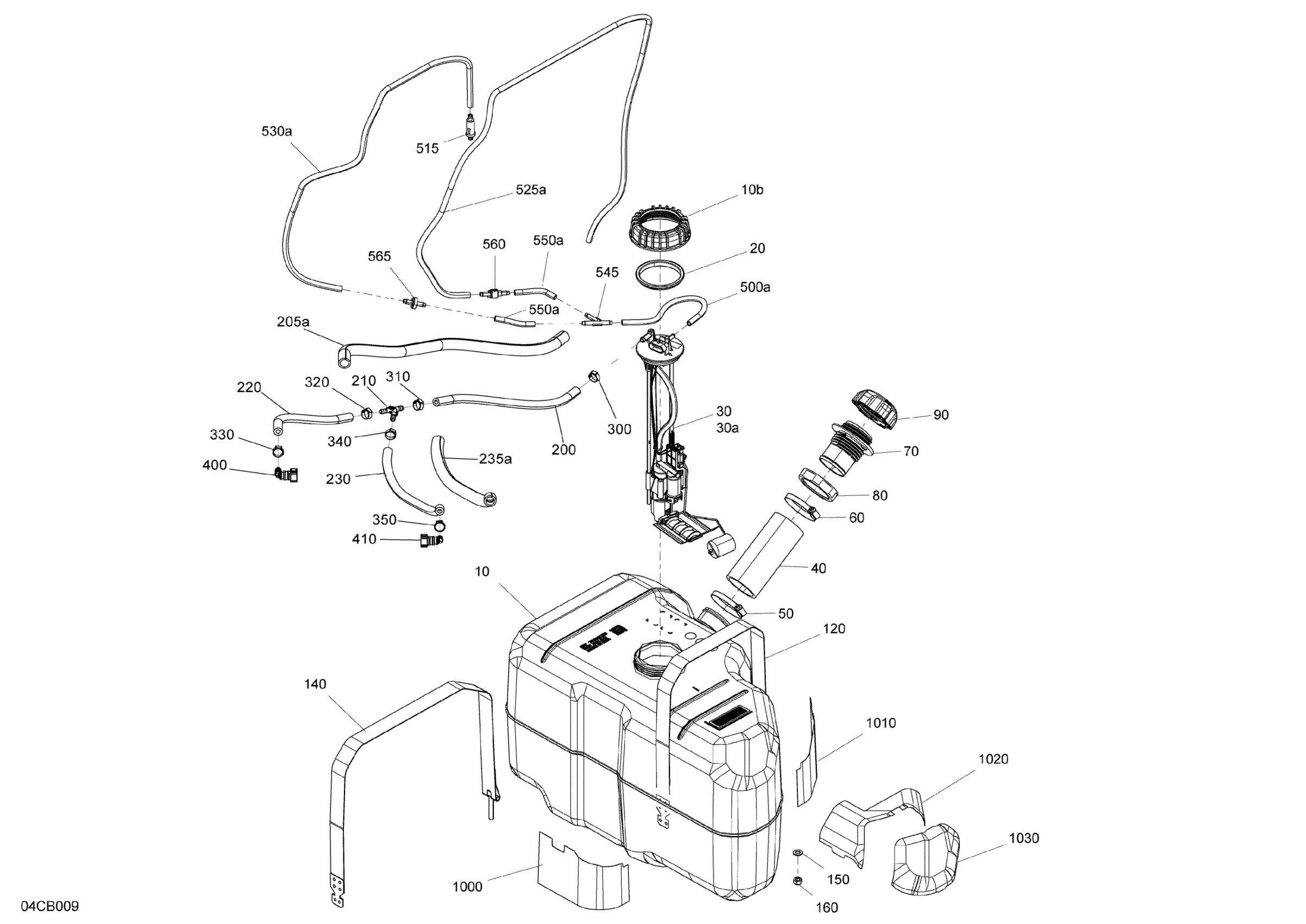

Can-Am 005 - Defender PRO HD10 - LTD CAB (9HNE-F-G-H) - North America, 2022 02- Engine - Fuel - No Evap Diagram

Description

Price

Fuel Tank Ass'y | Includes 10 to 10a

709001257

$264.99

10b

Fuel Pump Module Nut

709000328

$13.75

Seal

709000208

$14.99

Fuel Pump | Includes 30 to 30a

709001189

$340.99

30a

Prefilter Fuel Pump Kit 86mm Long

715900322

$73.99

Hose Filler Neck

709000595

$31.99

Norma Clamp

293650081

$12.18

Norma Clamp

293650081

$12.18

Filler Neck

709000867

$15.36

Fuel Filler Neck Nut

293600206

$13.18

Fuel Cap

709000868

$32.99

120

Retaining Strap

709001291

$39.99

140

Retaining Strap

709001141

$43.99

150

Flat Washer 8 mm

234081410

$0.83

160

Hex. Elastic Nut M8 Brass

232581200

$2.22

200

Hose 7,94 MM ID 3000MM Long

219704475

$47.99

205a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

210

Y Fitting

709001329

$11.59

220

Hose 7,94 MM ID 3000MM Long

219704475

$47.99

230

Hose 7,94 MM ID 3000MM Long

219704475

$47.99

235a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

300

Crimp Clamp

293650053

$3.09

310

Crimp Clamp

293650053

$3.09

320

Crimp Clamp

293650053

$3.09

330

Crimp Clamp

293650053

$3.09

340

Crimp Clamp

293650053

$3.09

350

Crimp Clamp

293650053

$3.09

400

Quick Attach 90°

275500700

$16.49

410

Quick Attach 90°

275500700

$16.49

500a

Polyurethane Hose

293830193

Unavailable

515

Filter

709001120

$8.05

525a

Polyurethane Hose

293830193

Unavailable

530a

Polyurethane Hose

293830193

Unavailable

545

Y-Fitting

293710059

$9.69

550a

Polyurethane Hose

293830193

Unavailable

560

Check Valve

513033469

$31.99

565

Check Valve

275500398

$10.99

1000

Heat Shield

707002670

$33.99

1010

Heat Shield

707002671

$33.99

1020

Heat Shield

707002673

$33.99

1030

Heat Shield

707002719

$33.99
