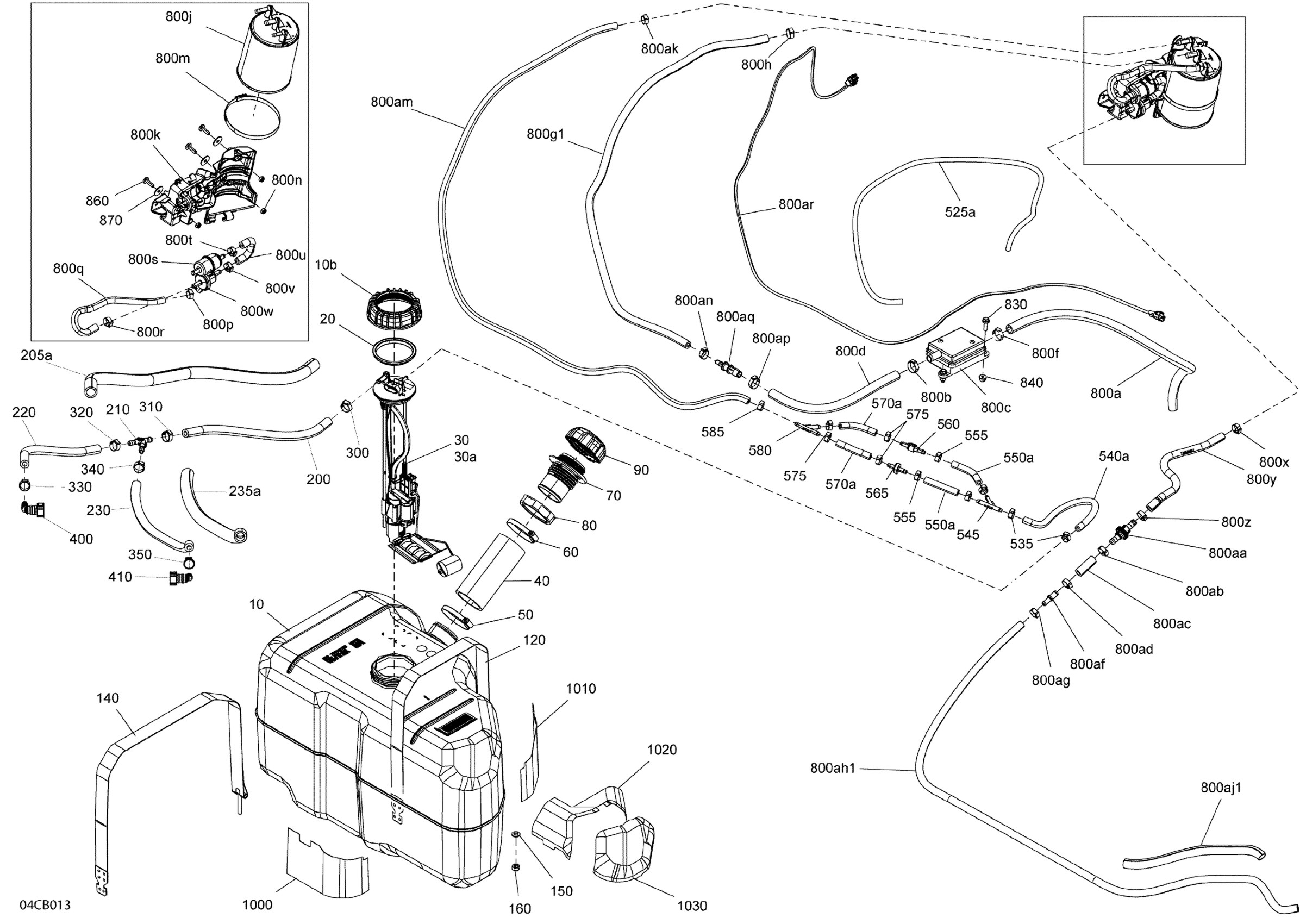

Can-Am 005 - Defender PRO HD10 - LTD CAB (9HNE-F-G-H) - North America, 2022 02- Engine - Fuel - EVAP Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10a

709001257

$264.99

10b

Fuel Pump Module Nut

709000328

$13.75

20

Seal

709000208

$14.99

30

Fuel Pump | Includes 30 to 30a

709001189

$340.99

30a

Prefilter Fuel Pump Kit 86mm Long

715900322

$73.99

40

Hose Filler Neck

709000595

$31.99

50

Norma Clamp

293650081

$12.18

60

Norma Clamp

293650081

$12.18

70

Filler Neck

709000867

$15.36

80

Fuel Filler Neck Nut

293600206

$13.18

90

Fuel Cap

709000868

$32.99

120

Retaining Strap

709001291

$39.99

140

Retaining Strap

709001141

$43.99

150

Flat Washer 8 mm

234081410

$0.83

160

Hex. Elastic Nut M8 Brass

232581200

$2.22

200

Hose 7,94 MM ID 3000MM Long

219704475

$47.99

205a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

210

Y Fitting

709001329

$11.59

220

Hose 7,94 MM ID 3000MM Long

219704475

$47.99

230

Hose 7,94 MM ID 3000MM Long

219704475

$47.99

235a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

300

Crimp Clamp

293650053

$3.09

310

Crimp Clamp

293650053

$3.09

320

Crimp Clamp

293650053

$3.09

330

Crimp Clamp

293650053

$3.09

340

Crimp Clamp

293650053

$3.09

350

Crimp Clamp

293650053

$3.09

400

Quick Attach 90°

275500700

$16.49

410

Quick Attach 90°

275500700

$16.49

525a

Polyurethane Hose

293830193

Unavailable

535

Oetiker Clamp

293650042

$3.09

540a

Hose

709000667

Unavailable

545

Y-Fitting

293710059

$9.69

550a

Hose

709000667

Unavailable

555

Oetiker Clamp

293650042

$3.09

560

Check Valve

513033469

$31.99

565

Check Valve

275500398

$10.99

570a

Hose

709000667

Unavailable

575

Oetiker Clamp

293650042

$3.09

580

Y-Fitting

293710059

$9.69

585

Oetiker Clamp

293650042

$3.09

800a

Crankcase Breather

707800699

$28.99

800b

Oetiker Clamp

293650186

$3.99

800c

Air Filter

709000524

$45.99

800d

Hose Fuel Vapour Canister

707800965

$23.49

800f

Oetiker Clamp

293650186

$3.99

800g1

Hose

709000666

Unavailable

800h

Crimp Clamp

293650053

$3.09

800j

Vapor Canister | EVAP Models

709000806

$93.99

800k

Canister Support | EVAP Models

709000851

$5.29

800m

Tridon Clamp

293650054

$9.49

800n

Hex. Elastic Stop Nut M6

232561600

$1.15

800p

Oetiker Clamp

293650042

$3.09

800q

Formed Hose

709000853

$17.49

800r

Oetiker Clamp

293650046

$2.89

800s

Fuel Filter

513034047

$21.99

800t

Crimp Clamp, 15.3-706R

293650047

$3.29

800u

Formed Hose

709000857

$17.49

800v

Crimp Clamp, 15.3-706R

293650047

$3.29

800w

Bleed Valve

709000443

$73.99

800x

Crimp Clamp, 15.3-706R

293650047

$3.29

800y

Formed Hose

709000937

$16.99

800z

Crimp Clamp

293650053

$3.09

800aa

Check Valve

275500941

$25.99

800ab

Crimp Clamp

293650053

$3.09

800ac

Hose

709000882

$16.65

800ad

Crimp Clamp

293650053

$3.09

800af

Flow Reducer

709000933

$4.12

800ag

Crimp Clamp, 15.3-706R

293650047

$3.29

800ah1

Hose

709000666

Unavailable

800aj1

Tubing 16 Mm 1000Mm Long

219704408

$7.49

800ak

Oetiker Clamp

293650046

$2.89

800am

Hose

709000667

Unavailable

800an

Crimp Clamp

293650053

$3.09

800ap

Oetiker Clamp

293650186

$3.99

800aq

Flow Reducer

709001208

$4.99

800ar

Purge Valve Cable

710007546

$20.99

830

Hex. Flange Screw M6 X 20

207662054

$1.01

840

Panel Nut M6 X 1.0

250100198

$2.11

860

Torx Screw M6 X 20

250000712

$2.11

870

Flat Washer M6.6 X 22

250200162

$2.32

1000

Heat Shield

707002670

$33.99

1010

Heat Shield

707002671

$33.99

1020

Heat Shield

707002673

$33.99

1030

Heat Shield

707002719

$33.99
