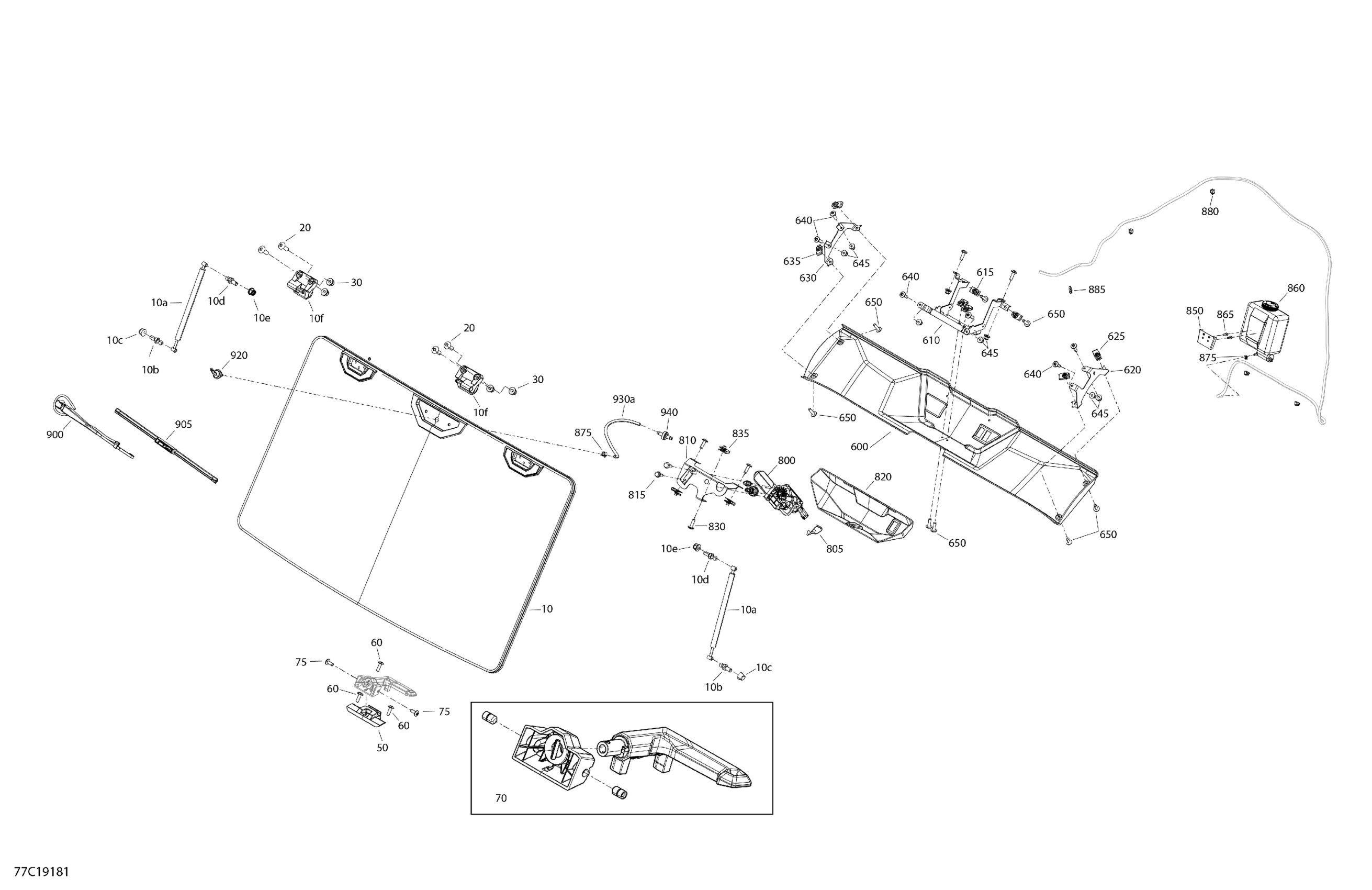

Can-Am Defender MAX HD10 - 2019 Enclosure Cab - HD10 - XT CAB - Windshield Section - Radio Support Parts Diagram

Description

Price

Windshield Ass'y | Includes 10 to 10f

715002942

$1,299.99

10a

Shock

705800030

$94.00

10b

Ball Head Stud

250300039

$7.06

10c

Hex. Flange Elastic Nut M8

233281414

$1.31

10d

Ball Head Stud

250300039

$7.06

10e

Hex. Flange Elastic Nut M8

233281414

$1.31

10f

Windshield Hinges

705800082

$111.91

10g

Neoprene Seal

705800006

$173.85

Torx Truss M8 X 25

250000874

$2.00

Hex. Flange Elastic Nut M8

233281414

$1.31

Handle Anchor

705800008

$17.13

Screw Torx M6.81 X 30

250001007

$1.85

Mobile Handle Ass'y

705800085

Unavailable

Torx Truss M8 X 16

250000881

$2.00

600

Radio Support Kit

715006526

$153.70

610

Support

705800060

$54.45

615

Panel Nut M6 X 1.0

250100198

$1.99

620

LH Support

705800108

$23.85

625

Panel Nut M6 X 1.0

250100198

$1.99

630

RH Support

705800109

$23.10

635

Panel Nut M6 X 1.0

250100198

$1.99

640

Torx Screw M6 X 20

250000722

$1.54

645

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

650

Torx Screw M6 X 20

250000722

$1.54

800

Wiper Motor

705010657

$241.76

805

Tie Wrap 368 mm

293750008

$0.97

810

Cover Support Ass'y

705800073

$76.84

815

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

820

Wiper Motor Trim

705800805

$26.84

830

Torx Screw M6 X 20

250000722

$1.54

835

Panel Nut M6 X 1.0

250100198

$1.99

850

Windshield Washer Tank Support

705800086

$16.39

860

Windshield Washer Tank

705800039

$71.61

865

Torx Screw K50 X 16

250000720

$1.60

875

Spring Clamp

414554800

$0.81

880

Clip

414227300

$1.40

885

Tie Wrap 368 mm

293750008

$0.97

900

Wiper Arm

705010656

$72.36

905

Winshield Wiper

705011443

$17.88

920

90° Elbow Connector

705800103

$12.64

930a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

940

Check Valve

275500398

$9.84
