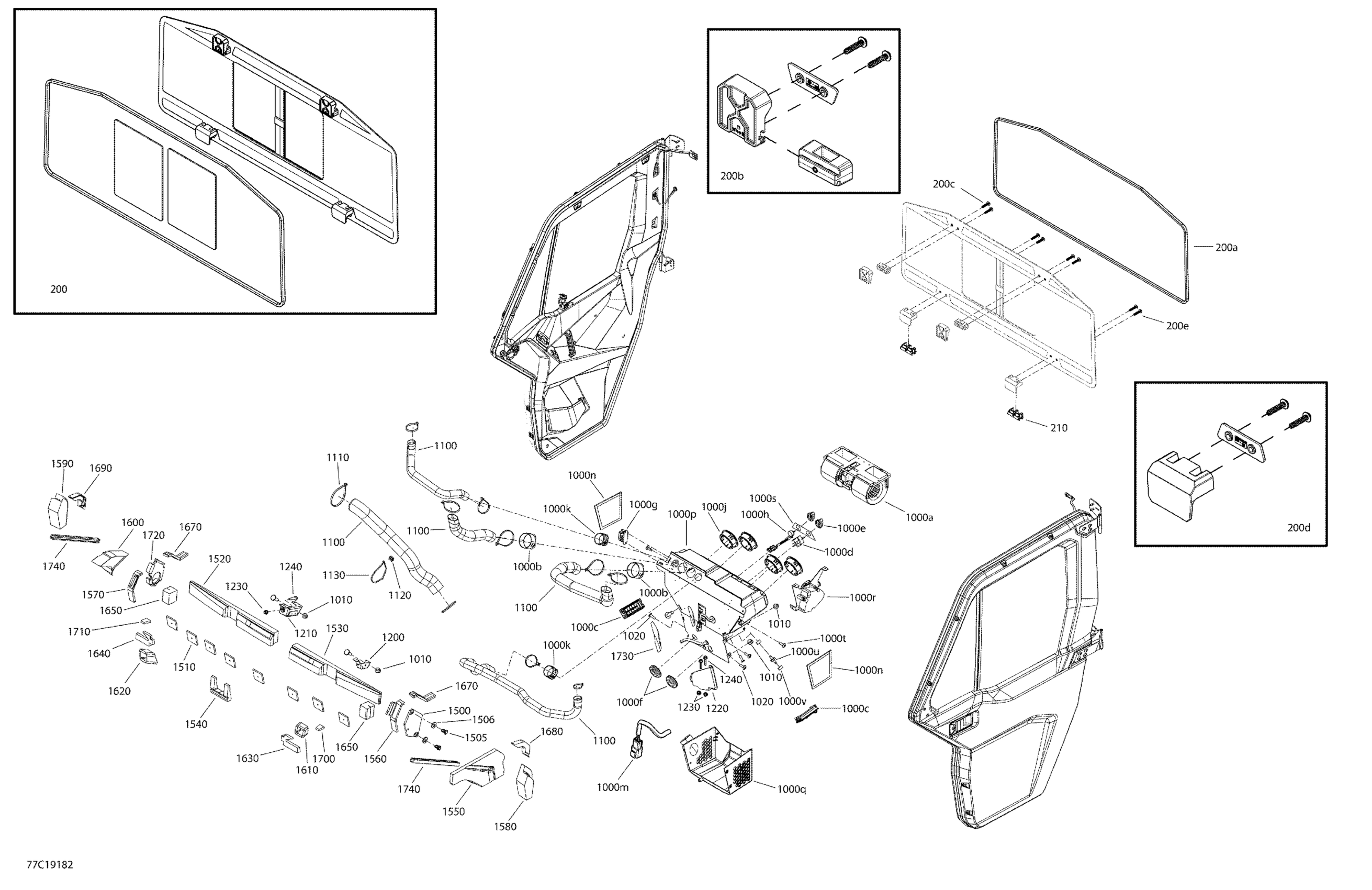

Can-Am Defender MAX HD10 - 2019 Enclosure Cab - HD10 - XT CAB - Rear Window & Dash Section Diagram

#

Description
Price

200

Rear Window Kit Ur

715007080

$894.75

200a

Outer Seal

705800054

$32.06

200b

Upper Clamp Ass'y | Includes 200c to 200c4

705800088

$54.45

200c

Screw Torx M6.81 X 30

250001007

$1.85

200d

Lower Clamp Ass'y | Includes 200d to 200d3

705800090

$33.55

200e

Screw Torx M6.81 X 30

250001007

$1.85

210

Stopper Rubber

705800317

$32.81

1000a

Fan

520001536

$394.75

1000b

Duct Adaptor

520001672

$14.27

1000c

Rectangular Grid

520001673

$46.24

1000d

Potentiometer Switch Knob Ass'y | Includes 620 to 620c

705800585

$106.69

1000e

Potentiometer Switch Knob Ass'y | Includes 620 to 620c

705800585

$106.69

1000f

Grommet 5/8'' | Not Shown

520001676

$6.88

1000g

FUSE BOX - Call your local BRP dealership

520001679

Unavailable

1000h

Potentiometer Switch Knob Ass'y | Includes 620 to 620c

705800585

$106.69

1000j

Round Grid

520001681

$26.84

1000k

Duct Adaptor

520001682

$17.88

1000m

WIRING HARNESS - Call your local BRP dealership

520001683

Unavailable

1000n

Filter

520001537

$26.09

1000p

Console

520001546

Unavailable

1000q

Lower Cover

520001626

$39.52

1000r

Valve Ass'y 5/8''

520001685

$272.36

1000s

HVAC OVERLAY - Call your local BRP dealership

520001686

Unavailable

1000t

Torx Screw M6 X 20

250000722

$1.54

1000u

Check Valve

275500398

$9.84

1000v

Crimp Clamp, 15.3-706R

293650047

$3.03

1010

Hex. Flange Elastic Nut M8

233281414

$1.31

1020

Torx Screw M6 X 20

250000722

$1.54

1100

Air Duct Kit

520001643

$182.06

1110

Tie Wrap 368 mm

293750008

$0.97

1120

Tie Rap Clip

293750062

$7.10

1130

Tie Wrap 368 mm

293750008

$0.97

1200

LH Support

520001619

$73.85

1210

RH Support

520001621

$54.45

1220

Central Support

520001623

$147.73

1230

Insert Half Hex Body M6 x 1.0

250100199

$2.91

1240

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.15

1500

Insulating Foam

705800260

$5.75

1505

Tuflok Plastic Rivet

293150230

$1.39

1506

Flat Washer 8 mm, Nylon

292001663

$1.36

1510

Insulating Foam

705800261

$1.89

1520

Insulating Foam

705800262

$32.81

1530

Insulating Foam

705800263

$32.81

1540

Insulating Foam

705800264

$4.76

1550

Insulating Foam

705800265

$13.45

1560

LH Insulating Foam

705800266

$4.76

1570

RH Insulating Foam

705800267

$4.76

1580

Insulating Foam

705800268

$5.75

1590

Insulating Foam

705800269

$5.88

1600

Insulating Foam

705800270

$20.12

1610

LH Insulating Foam

705800271

$4.76

1620

RH Insulating Foam

705800272

$4.76

1630

Insulating Foam

705800273

$4.76

1640

Insulating Foam

705800274

$4.76

1650

Insulating Foam

705800275

$4.76

1670

Insulating Foam

705800277

$2.85

1680

LH Insulating Foam

705800278

$7.67

1690

RH Insulating Foam

705800279

$7.67

1700

LH Insulating Foam

705800280

$1.89

1710

RH Insulating Foam

705800281

$1.89

1720

Insulating Foam

705800282

$5.75

1730

Protector Decal

704906818

$12.63

1740

Was 293250361 Gasket

219704379

$70.87

1750

Hex. Nut M8

232081414

$0.69

1760

Torx Truss M8 X 25

250000874

$2.00

1770

Flat Washer 8 mm

234082410

$1.27
