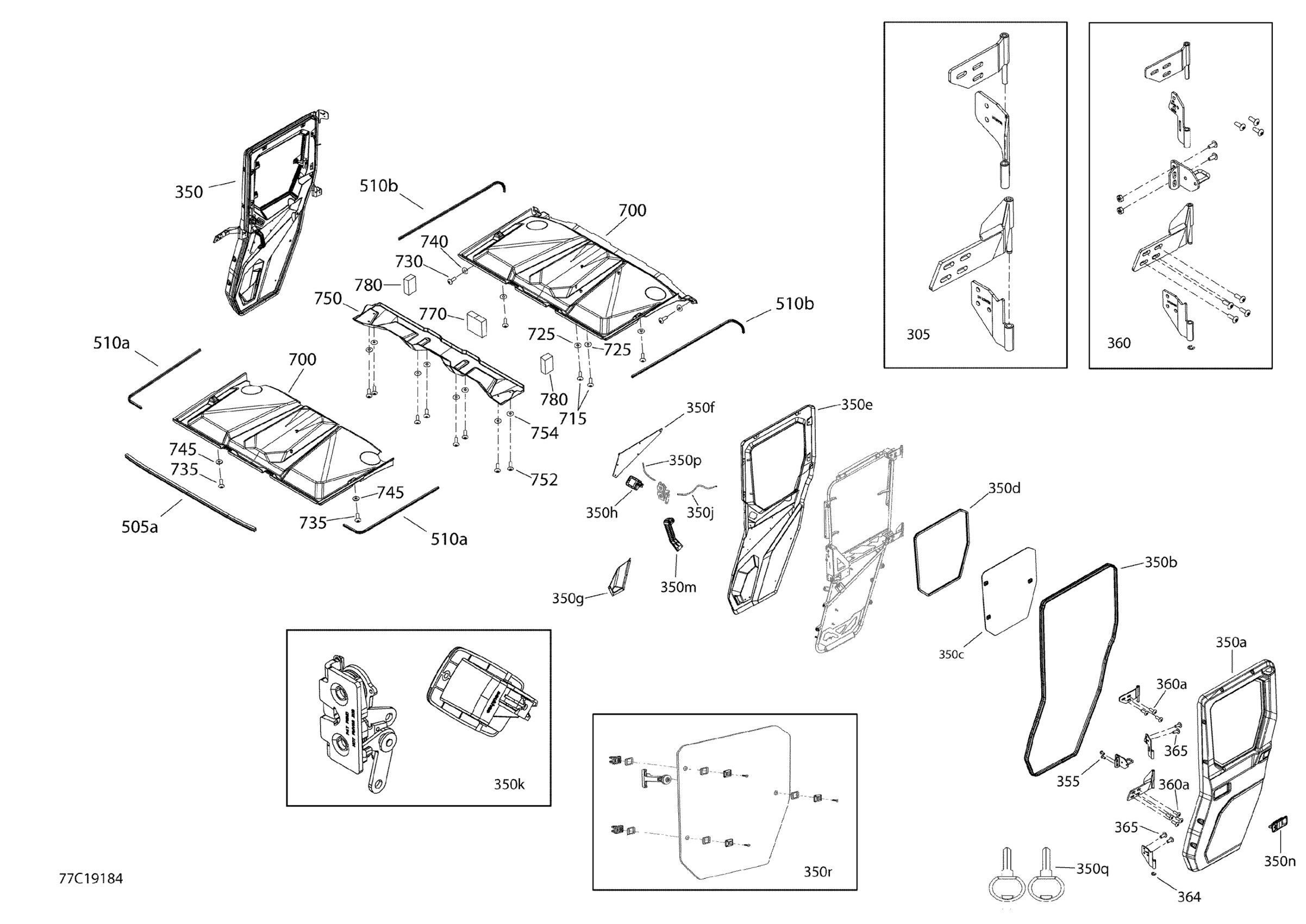

Can-Am Defender MAX HD10 - 2019 Enclosure Cab - HD10 - XT CAB - Rear Doors & Roof Section Diagram

#

Description
Price

350

LH Rear Rigid Door Ass'y | Includes 350 to 350u

705800476

$3,549.99

350a

Lh Door Outer Panel

705800415

$1,202.28

350b

Seal 705800290 - 5000 MM

705800289

$216.89

350c

LH Sub-Ass'y, Window

705800233

$569.99

350d

Seal 705800298 - 2200 MM

705800297

$96.89

350e

LH Routed Inner Door

705800235

$1,274.99

350f

Interior Color Panel LH

705800237

$373.82

350g

Rear Door Pocket LH

705800249

$392.28

350h

LH Interior Latch Kit

703501002

$198.43

350j

Cable Ass', Exterior Latch

705800241

$152.28

350k

LH Interior Latch Kit

703501002

$198.43

350m

LH Interior Handle

705800243

$110.74

350n

Exterior Paddle Latch | Keys 705800184 sold separately

705800015

$253.82

350p

Cable Ass'y, Interior Latch

705800242

$152.28

350q

Key Set

705800184

$23.82

350r

Window Hardware Kit

703500983

$226.12

355

Torx Truss M/S M8 X 20

250000953

$1.74

360

Max Hinges And Strikers Kit Lh | Includes 360 to 360a

705800564

$346.12

360a

Torx Truss M8 X 25

250000874

$1.74

305

LH Hinge Kit

703500917

$281.51

364

Retaining Ring

293370125

$2.31

365

Torx Truss M/S M8 X 20

250000953

$1.74

350

RH Rear Rigid Door Ass'y | Includes 350 to 350u

705800477

$3,549.99

350a

Rh Door Outer Panel

705800416

$1,202.28

350b

Seal 705800290 - 5000 MM

705800289

$216.89

350c

RH Sub-Ass', Window

705800234

$569.99

350d

Seal 705800298 - 2200 MM

705800297

$96.89

350e

Routed Inner Door Rh

705800236

$1,274.99

350f

Interior Color Panel DR

705800238

$373.82

350g

Rear Door Pocket RH

705800250

$392.28

350h

RH Interior Latch Kit

703501003

$198.43

350j

Cable Ass', Exterior Latch

705800241

$152.28

350k

RH Interior Latch Kit

703501003

$198.43

350m

RH Interior Handle

705800244

$110.74

350n

Exterior Paddle Latch | Keys 705800184 sold separately

705800015

$253.82

350p

Cable Ass'y, Interior Latch

705800242

$152.28

350q

Key Set

705800184

$23.82

350r

Window Hardware Kit

703500983

$226.12

355

Torx Truss M/S M8 X 20

250000953

$1.74

360

Max Hinges And Strikers Kit Rh

705800565

$346.12

360a

Torx Truss M8 X 25

250000874

$1.74

305

RH Hinge Kit

703500918

$272.28

364

Retaining Ring

293370125

$2.31

365

Torx Truss M/S M8 X 20

250000953

$1.74

505a

Was 293250361 Gasket

219704379

$73.82

510a

Outer Seal

705800054

$36.89

520a

Outer Seal

705800054

$36.89

700

Roof Liner Kit

715006391

$619.99

715

Torx-Truss Pt K40 X 16

250000759

$1.74

725

Washer M5

250200025

$0.61

730

Torx Screw Truss Head K50X20 T20

250000760

$1.74

735

Torx Screw Truss Head K50X20 T20

250000760

$1.74

740

Stainless Steel Flat Washer

234062670

$1.74

745

Stainless Steel Flat Washer

234062670

$1.74

750

Roof Liner Support

705800132

$152.28

752

Torx Screw Truss Head K50X20 T20

250000760

$1.74

754

Stainless Steel Flat Washer

234062670

$1.74

770

Roof Liner Spacer

705800221

$16.12

780

Roof Liner Spacer

705800255

$16.12
