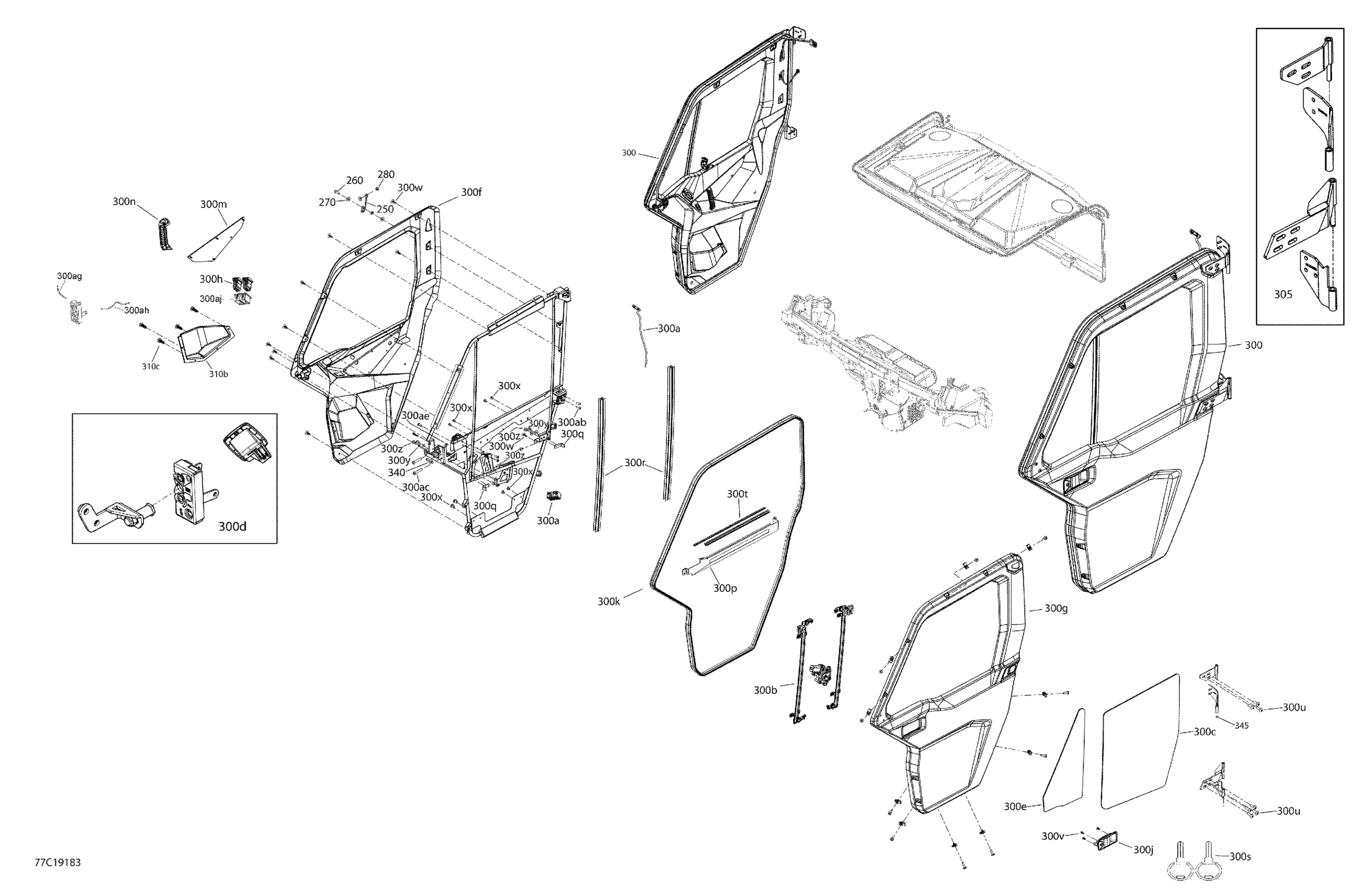

Can-Am Defender MAX HD10 - 2019 Enclosure Cab - HD10 - XT CAB - Front Doors Section Diagram

Door Limit Device Kit | 2nd version, 2 Holes

703500982

$20.74

Torx Screw M6 X 20

250000722

$1.34

Stainless Steel Flat Washer

234062670

$1.74

Bushing

708300737

$4.62

LH Front Rigid Door Ass'y | Includes 300 to 300a10

705800659

Unavailable

Driver Door Harness

705800047

$226.12

LH Window Actuator

705800046

$683.05

LH Roll-Down Glass

705800016

$569.99

LH Interior Latch Kit

703500915

$198.43

A-Pillar Glass LH

705800044

$327.66

LH Routed Inner Door | For Plastic Handle

705800322

$1,249.99

Lh Door Outer Panel

705800407

$1,202.28

Window Switch

710004979

$38.56

Exterior Paddle Latch | Keys 705800184 sold separately

705800015

$253.82

Seal 705800290 - 5000 MM

705800289

$216.89

LH Door Panel Kit

715006687

$209.97

LH Interior Handle

705800324

$110.74

Door Frame Bracket Lh

705800411

$175.35

Window Guide Bracket

705800150

$69.20

Window Guide Extrusion

705800590

$166.12

Key Set

705800184

$23.82

Flocked Beltline Trim 705800294 - 600 MM

705800293

$46.12

Torx Truss M8 X 25

250000874

$1.74

Socket Head Screw M5 X 10

205951046

$2.38

Black, Dart

293730011

$0.79

Socket Screw M6 X 8

205460860

$0.47

Stainless Steel Flat Washer

234062670

$1.74

Torx-truss M/s M6 X 10

250000995

$3.61

Torx Truss M6X14

250000789

$4.41

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

Socket Head Screw M8 X 40

205484060

$3.38

Hex. Flange Elastic Nut M6

233261494

$1.26

Elastic Flange Nut M8

233281466

$0.83

Hex. Flange Screw M6 X 20

207662044

$1.66

LH Latch Cable 2.4''

715900493

$57.86

Interior Latch Cable 28''

715900504

$92.28

LH Power Window Switch Housing

715900526

$13.52

LH Hinge Kit

703500917

$281.51

Door Pocket Lh

705800413

$175.35

Plastic Dart

705009405

$1.83

Torx Truss M8 X 25

250000874

$1.74

Torx Truss M8 X 25

250000874

$1.74

Retaining Ring

293370125

$2.31

DOOR_RIGID FR ASSY - Call your local BRP dealership | Includes 300 to 300a10

705800660

Unavailable

Passenger Door Harness

705800050

$239.97

RH Window Actuator

705800051

$683.05

RH Roll-Down Glass

705800025

$569.99

RH Interior Latch Kit

703500916

$198.43

A-Pillar Glass RH

705800052

$327.66

RH Routed Inner Door | For Plastic Handle

705800323

$1,274.99

Rh Door Outer Panel

705800408

$1,202.28

Window Switch

710004979

$38.56

Exterior Paddle Latch | Keys 705800184 sold separately

705800015

$253.82

Seal 705800290 - 5000 MM

705800289

$216.89

Door Panel Kit RH

715003568

$209.97

RH Interior Handle

705800325

$110.74

RH Door Frame Bracket

705800149

$175.35

Window Guide Bracket

705800150

$69.20

Window Guide Extrusion

705800590

$166.12

Flocked Beltline Trim 705800294 - 600 MM

705800293

$46.12

Torx Truss M8 X 25

250000874

$1.74

Socket Head Screw M5 X 10

205951046

$2.38

Black, Dart

293730011

$0.79

Socket Screw M6 X 8

205460860

$0.47

Stainless Steel Flat Washer

234062670

$1.74

Torx-truss M/s M6 X 10

250000995

$3.61

Torx Truss M6X14

250000789

$4.41

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

Socket Head Screw M8 X 40

205484060

$3.38

Hex. Flange Elastic Nut M6

233261494

$1.26

Elastic Flange Nut M8

233281466

$0.83

Hex. Flange Screw M6 X 20

207662044

$1.66

RH Latch Cable 2.9''

715900494

$57.86

Interior Latch Cable 28''

715900504

$92.28

RH Power Window Switch Housing

715900527

$23.05

RH Hinge Kit

703500918

$272.28

RH Door Pocket

705800605

$175.35

Plastic Dart

705009405

$1.83

Torx Truss M8 X 25

250000874

$1.74

Torx Truss M8 X 25

250000874

$1.74
