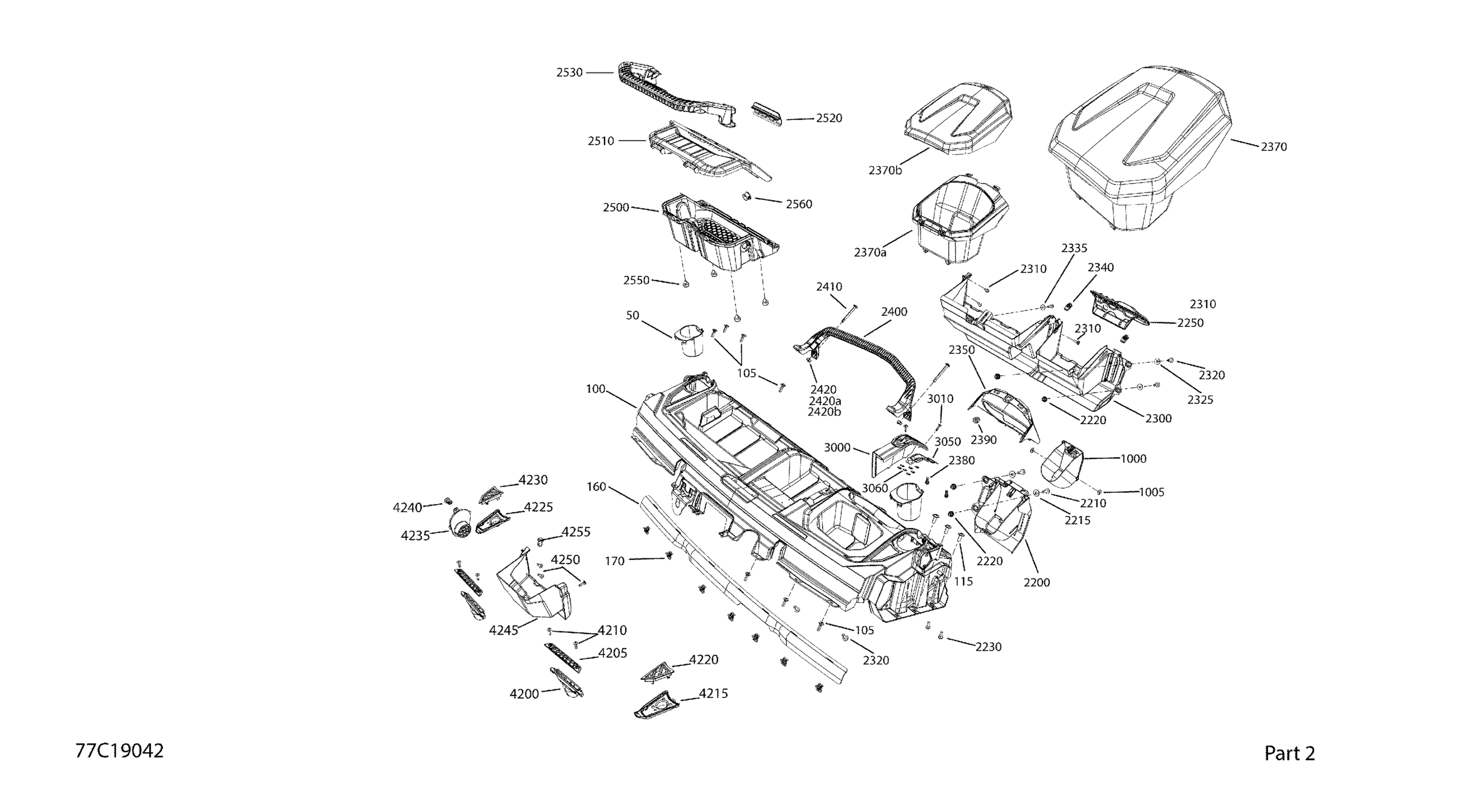

Can-Am Defender MAX HD10 - 2019 Cab Interior - XT CAB - Dash Section Diagram

#

Description
Price

50

Cup Holder

707900288

$13.85

100

Dashboard Upper Kit

715006520

$193.82

105

Torx Screw K50 X 16

250000720

$1.39

115

Torx Truss Screw M6 X 16

250000721

$1.39

1000

Drawer

707900252

$18.43

1005

O-Ring

293300194

$1.15

2200

LH Lower Dash | Except Base Package

707900251

Unavailable

2210

Torx Screw M6 X 20

250000722

$1.34

2215

Stainless Steel Flat Washer

234062670

$1.74

2220

Insert Half Hex Body M6 x 1.0

250100199

$2.54

2230

Torx Screw K50 X 16

250000720

$1.39

2250

Switch Support

703501098

$15.22

2350

Cluster Support | Package XT, Cab

707900358

$17.66

2370

Storage Box Ass'y | Includes 2370 to 2370b

703501087

$41.51

2370a

Storage Box Ass'y | Includes 2370 to 2370b

703501087

$41.51

2370b

Storage Box Ass'y | Includes 2370 to 2370b

703501087

$41.51

2380

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

2390

Grommet

705003264

$3.43

2400

Passenger Handhold

707900248

$50.74

2410

Torx Screw M6 X 60

250000648

$6.15

2420

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

2420a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

2420b

Hex. Elastic Stop Nut M6

232561600

$0.92

2500

Removable Storage Bin

715004344

$87.66

2510

Removable Storage Bin

715004344

$87.66

2520

Clip | Outlander Max

269501945

$15.19

2530

Handle | DPS Package

707900567

$18.43

2550

Rubber Bumper

293830005

$5.33

2560

Cap

293000120

$2.75

3000

Shifter Gate

707900608

$8.98

3010

Torx Screw M6 X 25 | XT Models

250000728

$3.61

3050

Shifter Gate Deflector

707900506

$5.52

3060

Push Nut

250100178

$0.58

4200

Central Adaptor

707900452

$15.22

4205

Front Grid

707900434

$11.83

4210

Torx-Truss Pt K40 X 16

250000759

$1.74

4215

LH Adaptor

707900437

$20.74

4220

LH Grid

707900435

$20.74

4225

RH Adaptor

707900455

$20.74

4230

RH Grid

707900436

$20.74

4235

Side Flange

707900438

$12.91

4240

Tuflok Plastic Rivet

293150230

$1.21

4245

Storage Box LWR F

707900852

$36.89

4250

Torx Screw K50 X 16

250000720

$1.39

4255

Tuflok Plastic Rivet

293150230

$1.21
