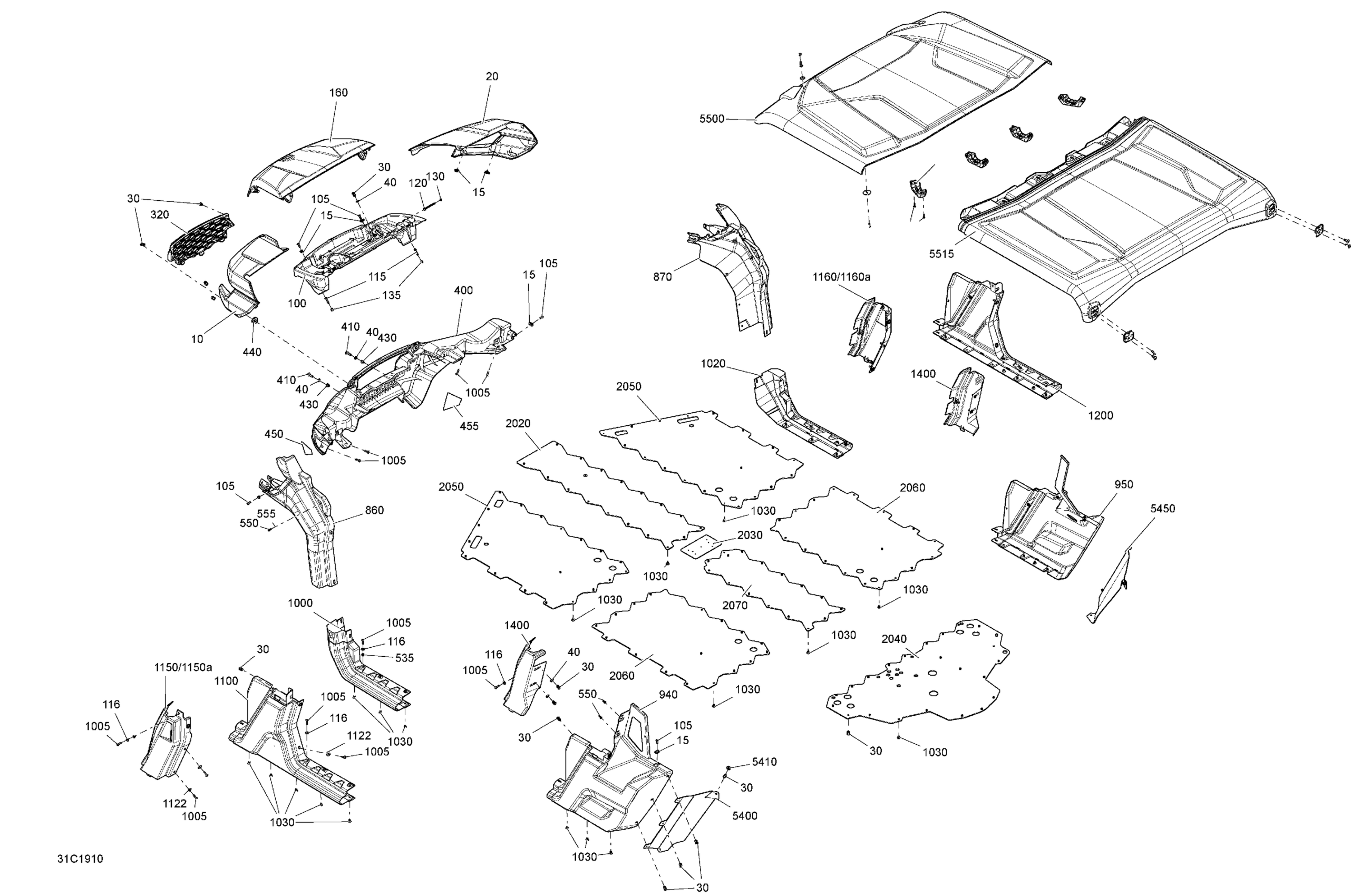

Can-Am Defender MAX HD10 - 2019 Body - Camo Diagram

#

Description
Price

10

Break Up Country, LH Front Fender | Camo Model

705017041

$189.97

15

Panel Nut M6 X 1.0

250100198

$1.73

20

Break Up Country, RH Front Fender | Camo Model

705017040

$189.97

25

Panel Nut M6 X 1.0

250100198

$1.73

30

Tuflok Plastic Rivet

293150230

$1.21

40

Washer

503192494

$3.11

100

Service Center

705011391

$59.97

105

Torx Screw M6 X 20

250000722

$1.34

110

Panel Nut M6 X 1.0

250100198

$1.73

115

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

116

Stainless Steel Flat Washer

234062670

$1.74

120

Hex. Flange Screw M6 X 75

207667554

$3.61

130

Push Nut

732610072

$1.72

135

Bushing

293900125

$2.75

160

Camo, Front Service Cover | Camo Model

705010525

$548.43

320

Grid Front Fascia

705009364

$26.12

330

Tuflok Plastic Rivet

293150230

$1.21

400

Front Facia

705011392

$233.82

410

Torx Screw M8 X 30

250000886

$1.74

420

Washer

503192494

$3.11

430

Hex. Flange Elastic Nut M8

233281414

$1.14

440

Grommet

705010718

$2.69

450

LH Front Reflector

704905072

$11.15

455

RH Front Reflector

704905073

$11.15

510

Torx Screw M6 X 20

250000722

$1.34

520

Panel Nut M6 X 1.0

250100198

$1.73

525

Torx Screw M6 X 20

250000722

$1.34

530

Stainless Steel Flat Washer

234062670

$1.74

550

Torx Screw K50 X 16

250000720

$1.39

555

Flat Washer M5

234051670

$1.74

860

LH Front Lateral Panel

705008152

$59.97

870

RH Front Lateral Panel

705008153

$59.97

935

Torx Screw K50 X 16

250000720

$1.39

940

Rear LH Side Panel | Order 705012704 panel + 414916600 Nylon Cap

705012704

$87.66

941

Black, Nylon Cap

414916600

$4.32

945

Tuflok Plastic Rivet

293150230

$1.21

950

RH Rear Side Panel

705012705

$106.12

955

Tuflok Plastic Rivet

293150230

$1.21

960

Torx Screw M6 X 20

250000722

$1.34

970

Panel Nut M6 X 1.0

250100198

$1.73

975

Tuflok Plastic Rivet

293150230

$1.21

1000

Deep Black, LH Central Panel

705019037

$69.20

1005

Torx Truss Screw M6 X 25

250000807

$1.74

1006

Stainless Steel Flat Washer

234062670

$1.74

1006

Stainless Steel Flat Washer

234062670

$1.74

1020

Deep Black, RH Central Panel

705019038

$73.82

1025

Torx Truss Screw M6 X 25

250000807

$1.74

1026

Stainless Steel Flat Washer

234062670

$1.74

1026

Stainless Steel Flat Washer

234062670

$1.74

1030

Pop Rivet 3/16”

293150108

$1.23

1035

Pop Rivet 3/16”

293150108

$1.23

1100

LH Middle Side Panel

705013112

$106.12

1105

Torx Truss Screw M6 X 25

250000807

$1.74

1115

Tuflok Plastic Rivet

293150230

$1.21

1120

Torx Truss Screw M6 X 25

250000807

$1.74

1122

Flat Washer M6.6 X 22

250200162

$1.91

1125

Stainless Steel Flat Washer

234062670

$1.74

1125

Stainless Steel Flat Washer

234062670

$1.74

1150

LH Middle Cage Cover | Includes 1150 to 1150a

705011955

$36.89

1150a

LH Middle Cage Cover

705010601

$36.12

1155

Flat Washer M6.6 X 22

250200162

$1.91

1156

Torx Truss Screw M6 X 25

250000807

$1.74

1160

RH Middle Cage Cover | Includes 1160 to 1160a

705011957

$36.12

1160a

RH Middle Cage Cover

705010602

$36.12

1165

Flat Washer M6.6 X 22

250200162

$1.91

1166

Torx Truss Screw M6 X 25

250000807

$1.74

1167

Insert Half Hex Body M6 x 1.0

250100199

$2.54

1200

RH Middle Side Panel

705013661

$106.12

1205

Torx Truss Screw M6 X 25

250000807

$1.74

1215

Tuflok Plastic Rivet

293150230

$1.21

1220

Torx Truss Screw M6 X 25

250000807

$1.74

1222

Flat Washer M6.6 X 22

250200162

$1.91

1225

Stainless Steel Flat Washer

234062670

$1.74

1225

Stainless Steel Flat Washer

234062670

$1.74

1300

LH Rear Cage Cover Kit

715003564

$76.12

1330

Tuflok Plastic Rivet

293150230

$1.21

1335

Washer

503192494

$3.11

1400

RH Rear Cage Cover Kit | Includes 1160 to 1160a

715003565

$76.12

1430

Tuflok Plastic Rivet

293150230

$1.21

1435

Washer

503192494

$3.11

1880

Tuflok Plastic Rivet

293150230

$1.21

2020

Central Skid Plate

705009151

$55.35

2025

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

2030

Connection Plate

705010884

$29.20

2040

Rear Skid Plate

705011292

$87.66

2045

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

2050

Lateral Skid Plate

705010422

$83.05

2055

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

2060

Rear Side Skid Plate

705010587

$83.05

2065

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

2070

Rear Central Skid Plate

705010588

$59.97

2075

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

2100

Tuflok Plastic Rivet

293150230

$1.21

5400

LH Rear Deflector

705010426

$49.97

5410

Flat Washer 8 mm, Nylon

292001663

$1.18

5450

RH Rear Deflector

705010427

$49.97

5460

Flat Washer 8 mm, Nylon

292001663

$1.18

5500

Front Roof

705800066

$491.51

5515

Rear Roof

705800067

$332.28

5520a

Outer Seal

705800054

$36.89

6010

Hex. Nut M8

232081414

$0.60

6015

Flat Washer 8 mm

234082410

$1.11

6020

Torx Truss M8 X 25

250000874

$1.74

6025

Torx Screw Truss Head K50X20 T20

250000760

$1.74

6030

Flat Washer M6.6 X 22

250200162

$1.91

6035

Torx Truss M8 X 25

250000874

$1.74

6040

Roof Anchor

705800131

$7.11

6055

Roof Cap

705800058

$3.05

6060

Torx Truss Screw M6 X 25

250000807

$1.74

6065

Torx Truss Screw M6 X 25

250000807

$1.74

6070

Torx Truss Screw M6 X 25

250000807

$1.74

6075

Stainless Steel Flat Washer

234062670

$1.74

6080

Torx Truss Screw M6 X 25

250000807

$1.74

6085

Stainless Steel Flat Washer

234062670

$1.74
